XT3-GSE (14Z-3GE-010) - Cub Cadet XT3 Enduro Garden Tractor (2015) Kohler CH680-3107 Fuel System Parts Diagram

XT3 Enduro Garden Tractor

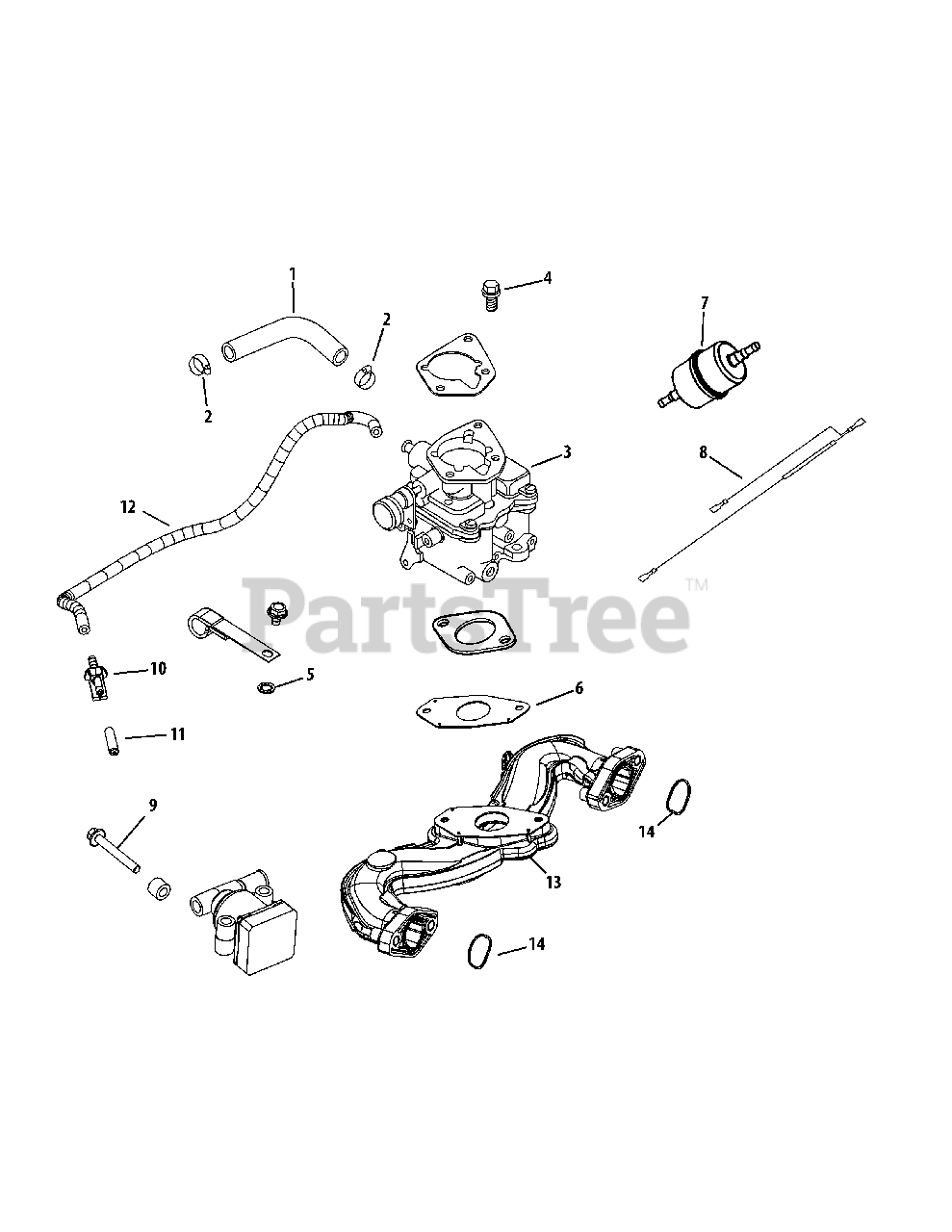

Kohler CH680-3107 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-111-81-S

Low Permeation Fuel Hose, 24"

$17.99

$

In Stock, Qty 6

0

2

Cub Cadet KH-25-237-31-S

Hose Clamp

$4.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-24-853-58-S

Carburetor Kit w/ Gaskets
(Superseded to KH-24-853-310-S)

$314.99

$

Usually ships in 3-6 days

0

4

Cub Cadet KH-25-086-124-S

Flange Screw, M6 x 1.0 x 25

$2.49

$

In Stock, only 3 left!

0

5

Cub Cadet KH-X-22-11

Internal Tooth Lock Washer, 1/4

$

$

Not available

6

Cub Cadet KH-24-041-53-S

Carburetor Gasket

$3.49

$

In Stock, Qty 7

0

7

Cub Cadet KH-24-050-13-S

Fuel Filter
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

8

Cub Cadet KH-24-518-24-S

Ground Lead

$2.49

$

In Stock, only 1 left!

0

9

Cub Cadet KH-M-651040-S

Flange Screw, M6 x 1.0 x 40

$2.49

$

In Stock, Qty 12

0

10

Cub Cadet KH-25-155-51-S

Evaporative Connector

$13.99

$

In Stock, only 3 left!

0

11

Cub Cadet KH-25-173-33-S

Masking Cap

$2.49

$

In Stock, only 1 left!

0

12

Cub Cadet KH-25-326-08-S

Evaporative Hose, 20"
(Superseded to KH-24-326-143-S)

$5.49

$

In Stock, only 1 left!

0

13

Cub Cadet KH-24-164-93-S

Intake Manifold Kit
(Superseded to KH-24-164-276-S)

$219.99

$

Usually ships in 3-6 days

0

14

Cub Cadet KH-24-153-27-S

Intake Port O-Ring

$3.99

$

In Stock, Qty 8

0

Cub Cadet KH-24-757-03-S

Carburetor Repair Kit

Note: (not shown)

$112.99

$

Usually ships in 2-5 days

0

Cub Cadet KH-24-757-01

Kit, Solenoid

Note: (not shown)

$

$

Not available

Cub Cadet KH-24-518-24-S

Lead, Ground

Note: (not shown)

$2.49

$

In Stock, only 1 left!

0
