XT3-GSE (14Z-3GE-010) - Cub Cadet XT3 Enduro Garden Tractor (2015) Engine Accessories & Frame Assembly Parts Diagram

XT3 Enduro Garden Tractor

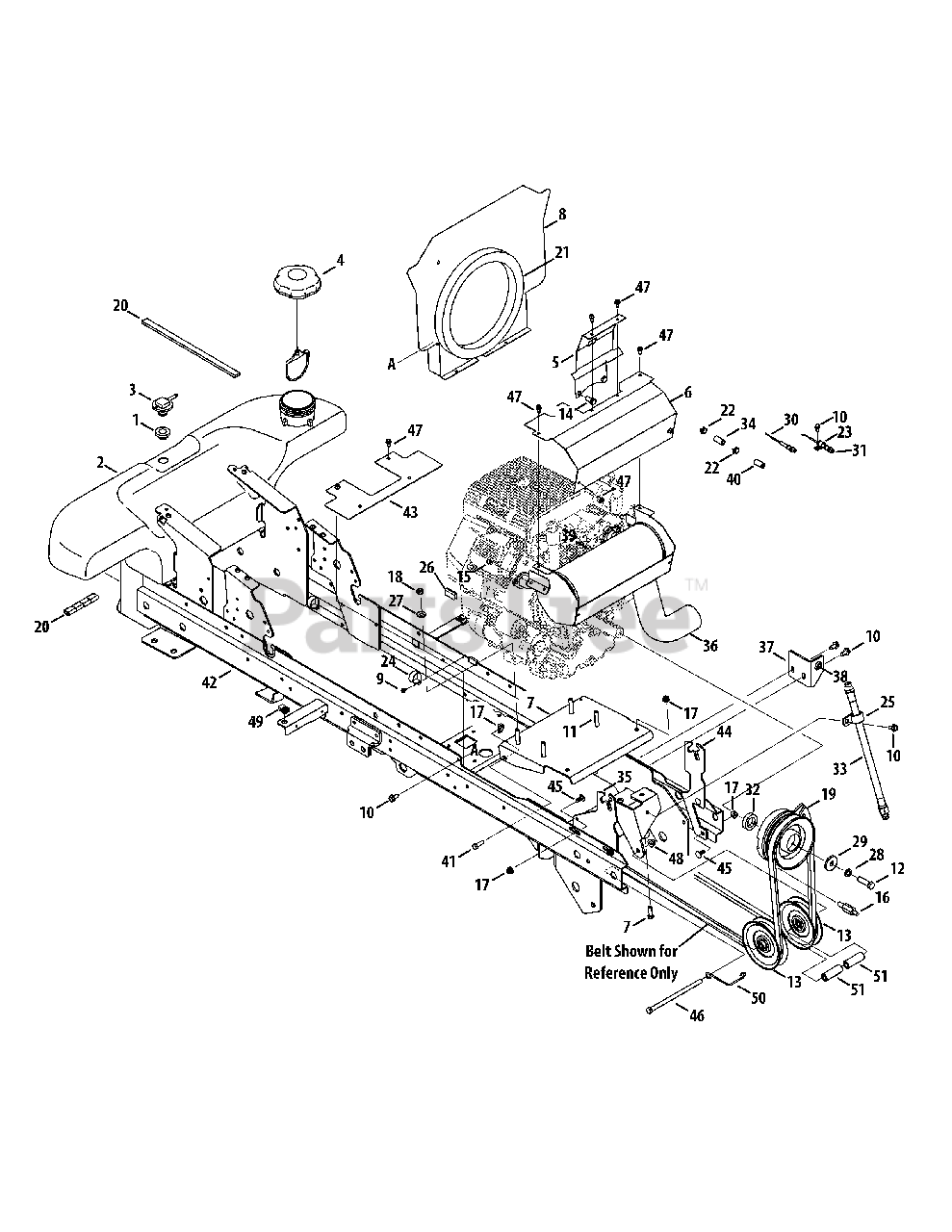

Engine Accessories & Frame Assembly Parts Diagram

  • Title

1

Cub Cadet 735-04081

Rubber Grommet, 23.0 x 3.55

$4.99

$

In Stock, Qty 20+

0

2

Cub Cadet 951-04274

Fuel Tank
(Superseded to 951-04274A)

$346.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 751-12118

Fuel Rollover Valve

$35.99

$

In Stock, only 1 left!

0

4

Cub Cadet 951-12725

Fuel Cap, 3.50
(Superseded to 951-12725A)

$56.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08716

Clutch Heat Shield

$30.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08713

Engine Upper Shield

$48.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08021-0637

Engine Mount Bracket

$74.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08294A-0637

Engine Baffle Plate

$68.99

$

In Stock, only 1 left!

0

9

Cub Cadet 910-0224

AB Screw, #10-16 x .500

$3.99

$

In Stock, only 2 left!

0

10

710-1611b

Screw, 5/16-18 x .750

$

$

Not available

11

Cub Cadet 710-0539

Hex Screw, 3/8-24 x 1.75

$4.99

$

In Stock, Qty 11

0

12

Cub Cadet 710-0757

Hex Screw, 7/16-20 x 1.50

$9.99

$

In Stock, only 1 left!

0

13

Cub Cadet 956-3045A

Idler Pulley

$57.99

$

In Stock, Qty 6

0

14

Cub Cadet 710-3119

Hex Screw, 3/8-16 x .750

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 710-3209

Hex Screw, M6-1.0 x 10

$8.49

$

In Stock, Qty 13

0

16

Cub Cadet 911-1083

Clutch Stop Stud

$23.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-3054

Hex Lock Nut, 3/8-24

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 917-04326A

Clutch

$519.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 721-04382

Tape Foam, .75 x .25

$6.99

$

Usually ships in 3-6 days

0

21

Cub Cadet 923-3062A

Intake Gasket Foam

$41.99

$

In Stock, only 1 left!

0

22

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

23

Cub Cadet 726-0272

Clamp, 9/16

$7.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 726-04119

Hose Clamp, 1.0

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 726-0475

Clamp, 1.0

$13.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 731-08383-2

Trim Strip

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 736-0105

Spring Washer, .401 x .870 x .060

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 936-0171

Lock Washer, 7/16
(Superseded to 736-0171)

$4.49

$

In Stock, only 4 left!

0

29

Cub Cadet 736-3082A

Flat Washer, .45 x 1.5 x .172

$9.99

$

In Stock, Qty 16

0

30

Cub Cadet 946-04759A

Choke Control Cable
(Superseded to 946-04759B)

$32.99

$

In Stock, only 1 left!

0

31

Cub Cadet 946-04771A

Throttle Control Cable
(Superseded to 946-04771B)

$31.99

$

In Stock, only 1 left!

0

32

Cub Cadet 750-3356

PTO Spcr., 1.13 x 1.62 x .21

$11.99

$

In Stock, only 2 left!

0

33

Cub Cadet 751-10291A

Oil Drain Hose
(Superseded to 751-10291C)

$52.99

$

In Stock, only 2 left!

0

34

Cub Cadet 751-10349-72

Low Permeation Fuel Hose

$60.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 703-08768A-0637

Hood Tilt Bracket
(Superseded to 703-08768B-0637)

$41.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 651-04379A

Pipe Assembly Heat Shield

$104.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 703-08780-0637

Exhaust Bracket

$19.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 735-04291

Grommet, .875 OD x .375 ID x .188

$5.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 751-12647

Twin Muffler

$244.99

$

Usually ships in 3-6 days

0

40

Cub Cadet 751-12089-34

Vent Hose

$10.99

$

In Stock, only 1 left!

0

41

Cub Cadet 710-0643

Hex Screw, 5/16-18 x 1.00

$6.99

$

In Stock, Qty 5

0

42

Cub Cadet 603-04936-0637

Frame (GS Models)
(Superseded to 603-04936B-0637)

$686.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 703-08077-0637

Lower Baffle

$18.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 703-08766A-0637

Hood Pivot Bracket

$34.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

46

Cub Cadet 710-04692

Hex Screw, 3/8-16 x 7.25

$9.49

$

In Stock, only 1 left!

0

47

Cub Cadet 710-1652

Screw, 1/4-20 x .625

$4.49

$

In Stock, Qty 20+

0

48

Cub Cadet 712-04065

Flange Lock Nut, 3/8-16

$3.99

$

In Stock, Qty 20+

0

49

Cub Cadet 926-0211

U-Nut, 5/16-18
(Superseded to 726-0211)

$4.49

$

In Stock, only 1 left!

0

50

Cub Cadet 932-0970

Belt Guide

$11.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 750-04198A

Idler Spacer, .41 x .875 x 2.19

$11.99

$

In Stock, Qty 6

0

Cub Cadet 722-3020

Foam, 1.25 x .62

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 725-0157

Cable Tie, 3/16 x .05 x 7.4

Note: (Not Shown)

$3.99

$

In Stock, only 2 left!

0

Cub Cadet 703-10018-0637

Plate, upper Engine Baffle

Note: (Not Shown)

$105.99

$

Usually ships in 3-6 days

0

Cub Cadet 732-05335

Fixed Cable Guide

Note: (Not Shown)

$3.99

$

Usually ships in 3-6 days

0

Cub Cadet 710-04043

Screw, 5/16-18

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

Cub Cadet 703-10046

Fuel Line Bracket

Note: (Not Shown)

Variations

Cub Cadet 703-10046-0637

BRACKET-FUEL LINE - POWDER BLACK (0637)

$22.99

$

Usually ships in 3-6 days

0

$22.99

$

Usually ships in 3-6 days

0
