  • Title

Cub Cadet 918-07161

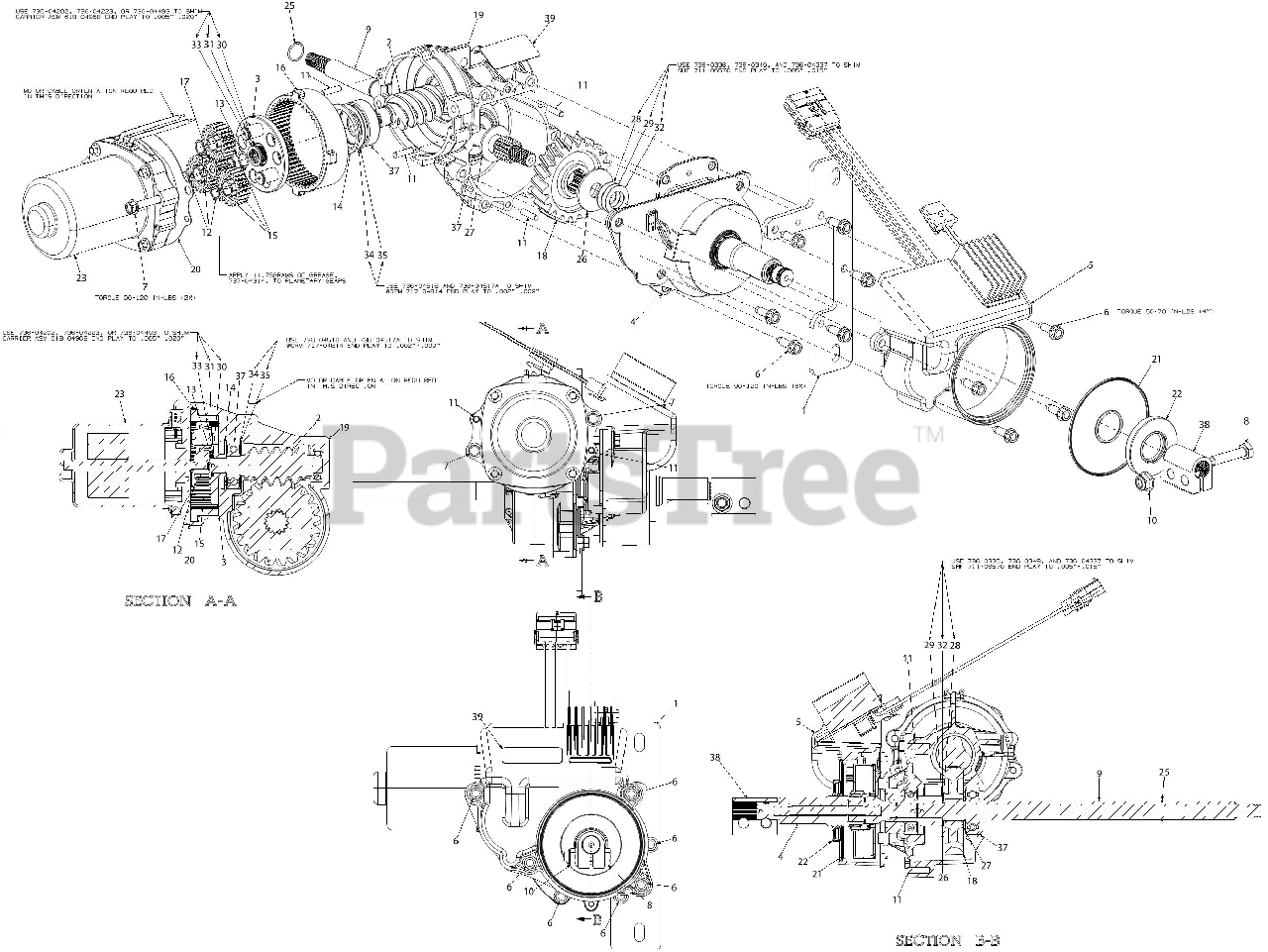

EPS POWER STEERING TRANSMISSION ASSEMBLY
(Superseded to 759-05542)

Note: Complete (Includes parts listed below)

$1298.99

$

Usually ships in 3-6 days

0

1

N/A

BRACKET ASSEMBLY

Note: (Not Serviceable)

$

$

Not available

2

N/A

SHAFT ASSEMBLY

Note: (Not Serviceable)

$

$

Not available

3

N/A

CARRIER ASSEMBLY

Note: (Not Serviceable)

$

$

Not available

4

N/A

TORSION ASSEMBLY

Note: (Not Serviceable)

$

$

Not available

6

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 710-0809

SCREW 1/4-20 x 1.25

$6.99

$

In Stock, Qty 17

0

8

Cub Cadet 710-3083

BOLT 5/16-18X1.375 GR5

$4.49

$

Usually ships in 3-6 days

0

9

N/A

DRIVE SHAFT

Note: (Not Serviceable)

$

$

Not available

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 915-0221

DOWEL PIN

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 916-0108

SNAP RING
(Superseded to 716-0108)

$5.49

$

Usually ships in 3-6 days

0

13

N/A

RETAINING RING .500

Note: (Not Serviceable)

$

$

Not available

14

Cub Cadet 916-3020

INTERNAL SNAP RING

$4.99

$

In Stock, Qty 20+

0

15

N/A

23T PLANET GEAR

Note: (Not Serviceable)

$

$

Not available

16

N/A

60T RING GEAR

Note: (Not Serviceable)

$

$

Not available

17

N/A

12T SUN GEAR

Note: (Not Serviceable)

$

$

Not available

18

N/A

21T HELICAL GEAR

Note: (Not Serviceable)

$

$

Not available

19

N/A

MAIN HOUSING

Note: (Not Serviceable)

$

$

Not available

20

Cub Cadet 721-04431

EPS MOTOR GASKET

$4.49

$

Usually ships in 3-6 days

0

21

N/A

OIL SEAL

Note: (Not Serviceable)

$

$

Not available

22

Cub Cadet 721-0523

OIL SEAL 1.0X2.04X.27

$15.99

$

In Stock, Qty 16

0

23

Cub Cadet 924-04097

ELECTRIC MOTOR

$251.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 732-0614

WIRE RING

$6.49

$

In Stock, only 1 left!

0

26

Cub Cadet 936-0208

WASHER .51 x 1.5 x .07
(Superseded to 736-0208)

$

$

Not available

27

Cub Cadet 736-0237

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

28

Cub Cadet 936-0336

FLAT WASHER

$4.49

$

In Stock, Qty 7

0

29

Cub Cadet 936-0349

FLAT WASHER

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 736-04202

FLAT WASHER .504 X.700X.010

$3.49

$

Usually ships in 3-6 days

0

31

N/A

SHIM WASHER

Note: (Not Serviceable)

$

$

Not available

32

Cub Cadet 736-04337

SHIM WASHER .632X1.000X.010:HD

$3.99

$

In Stock, Qty 10

0

33

Cub Cadet 736-04493

SHIM WASHER .504X.700X.020

$2.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 736-04516

SHIM WASHER

$6.49

$

Usually ships in 3-6 days

0

35

N/A

SHIM WASHER

Note: (Not Serviceable)

$

$

Not available

37

Cub Cadet 941-0524A

BALL BEARING

$23.99

$

In Stock, Qty 20+

0

38

Cub Cadet 748-04240

STEERING SHAFT COUPLER

$27.99

$

Usually ships in 3-6 days

0

39

N/A

LABEL

Note: (Not Serviceable)

$

$

Not available
