XT3-GSE (14C-3GE-010) - Cub Cadet XT3 Enduro Garden Tractor (2016) Hood Parts Diagram

XT3 Enduro Garden Tractor

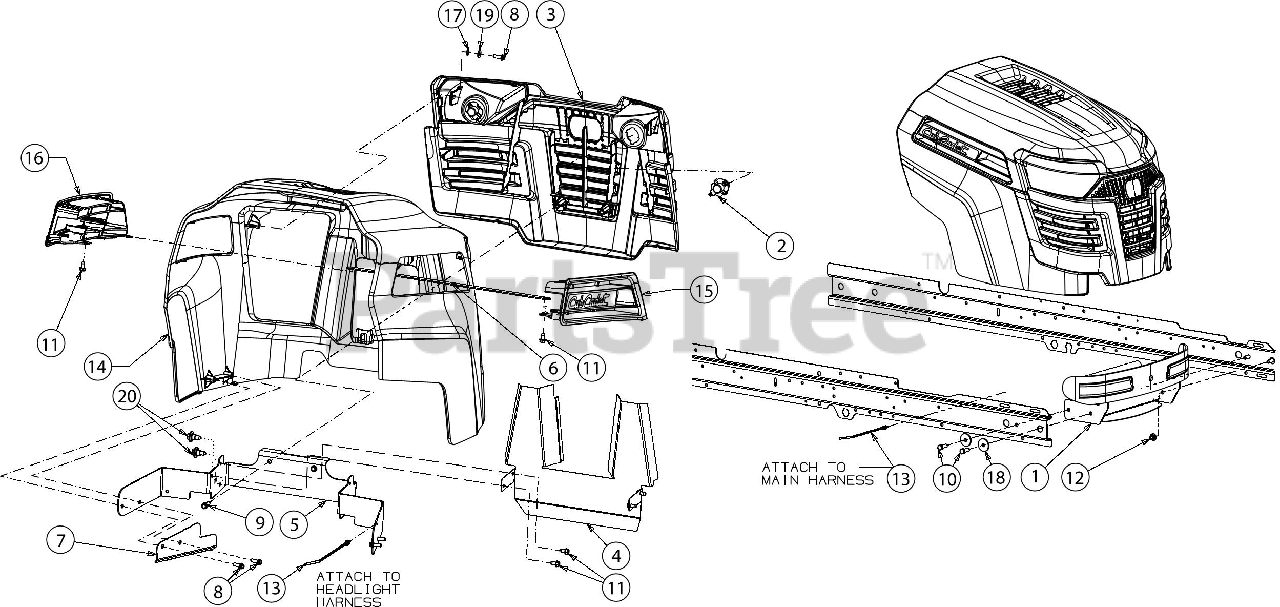

Hood Parts Diagram

  • Title
1

Cub Cadet 603-04945B-4021

FRONT BUMPER ASSEMBLY

$132.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 925-0963

MINIATUURE BULB 12V

$7.49

$

In Stock, Qty 5

0

2

Cub Cadet 925-1649

HEADLIGHT SOCKET
(Superseded to 925-1649A)

Note: (Not Shown)

$11.99

$

In Stock, Qty 20+

0

3

Cub Cadet 931-04563A

GRILLE ASSEMBLY

$115.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 931-07878

HEADLIGHT LENS (RH)

Note: (Not Shown)

$17.99

$

In Stock, only 1 left!

0

3

Cub Cadet 931-07879

HEADLIGHT LENS (LH)

Note: (Not Shown)

$17.99

$

In Stock, only 1 left!

0

3

Cub Cadet 777X44663

LABEL (RH) REFLECTIVE LENS

Note: (Not Shown)

$13.99

$

In Stock, only 2 left!

0

3

Cub Cadet 777X44662

LABEL (LH) REFLECTIVE LENS

Note: (Not Shown)

$13.99

$

In Stock, only 1 left!

0

4

Cub Cadet 703-08756

DEFLECTOR SHIELD

$74.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08760-0637

HOOD PIVOT BRACKET

$67.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08787A-0637

HOOD CROSS BRACE

$16.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-09959A

HEAT EXHAUST SHIELD

$25.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-05109

SCREW 5/16-14 x 1

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0514

SCREW 3/8-16 x 1 GR5

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 926-0154

PUSH MOUNT TIE

$6.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 931-10675

HOOD (CUB YELLOW)
(Superseded to 931-10675A)

$360.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 931-10763

HOOD SCOOP (RH)

$46.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 931-10764

HOOD SCOOP (LH)

$46.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 936-0222

LOCK WASHER 1/4
(Superseded to 736-0222)

$

$

Not available

18

Cub Cadet 936-0227

FLAT WASHER .390x1.500x.134
(Superseded to 736-0227)

$

$

Not available

19

Cub Cadet 936-3020

FLAT WASHER .271:.630:.065
(Superseded to 736-3020)

$

$

Not available

20

Cub Cadet 738-04091A

SHOULDER SCREW .43X.29X5/16-18 TT

$3.99

$

In Stock, Qty 20+

0
