XT3-GS (14Y-3JM-010) - Cub Cadet XT3 Enduro Garden Tractor (2017) Manual Lift Parts Diagram

XT3 Enduro Garden Tractor

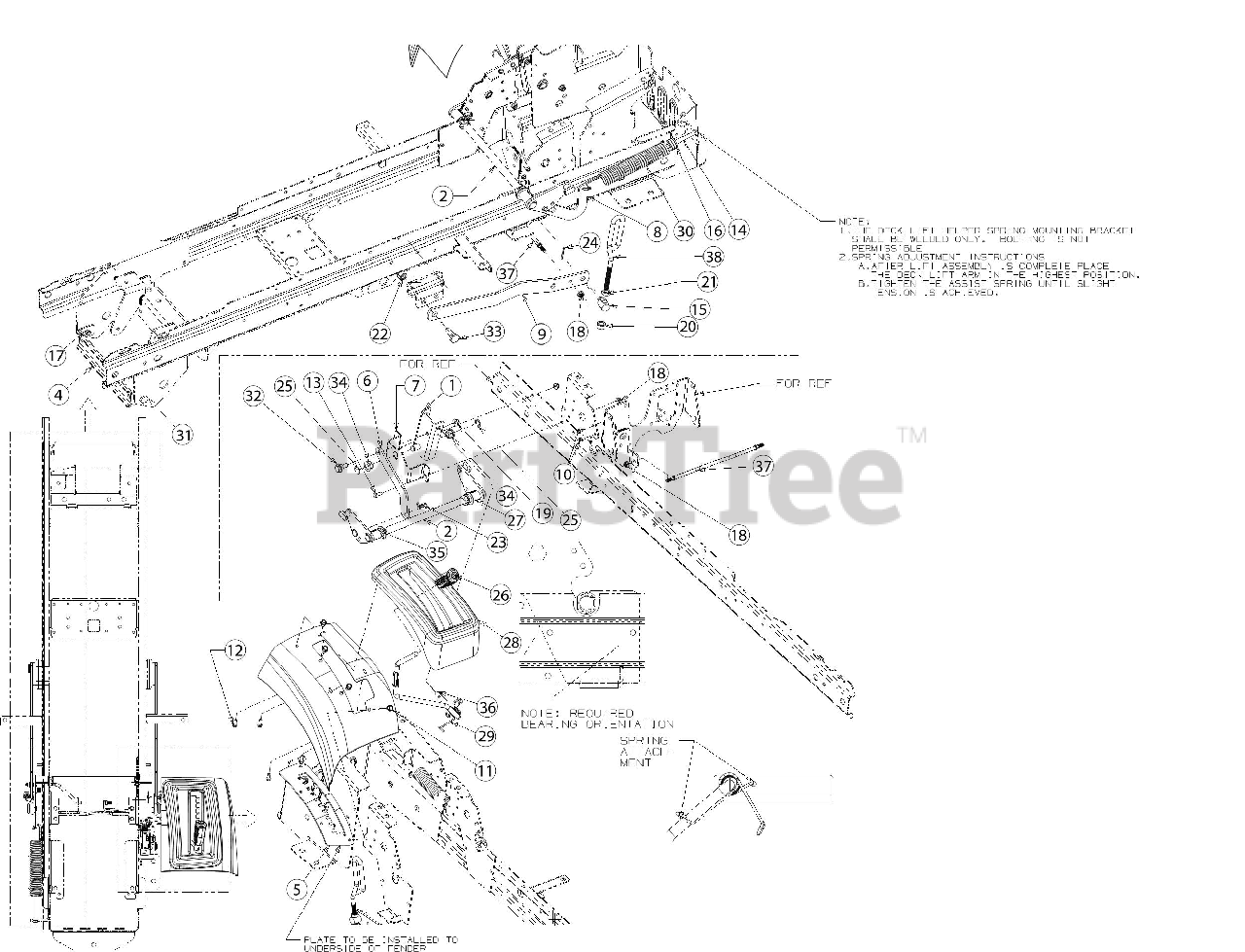

Manual Lift Parts Diagram

  • Title
1

Cub Cadet 603-04857

MANUL LIFT LINK BRACKET

$53.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 903-05241

LIFT SHAFT ASSEMBLY MANUAL LIFT

$123.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 703-07954A-0637

FRONT HANGER BRACKET

$31.99

$

In Stock, Qty 5

0

5

Cub Cadet 703-08170-0637

HEIGHT INDEX BRACKET

$46.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08224-0637

MANUAL LIFT LINK

$24.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08225A-0637

LIFT LEVER BRACKET

$27.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 703-08319-0637

HELPER SPRING PLATE

$21.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 703-10167A

LIFT LINK

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 703-10167A-0637

Lift Link - POWDER BLACK (0637)

$38.99

$

Usually ships in 3-6 days

0

$31.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.49

$

Usually ships in 3-6 days

0

13

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3279

SCREW 3/8-16X4.25 GR5

$8.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 711-06284

LIFT LINK FERRULE

$11.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 711-0635

SPRING INSERT

$44.99

$

In Stock, only 1 left!

0

17

Cub Cadet 712-0266A

JAM LOCK NUT

$3.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

$3.99

$

In Stock, Qty 20+

0

20

Cub Cadet 712-05046

HEX NUT NYLOK 1/2-13

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 912-3048

HEX NUT
(Superseded to 712-3048)

$4.99

$

In Stock, Qty 16

0

22

Cub Cadet 712-3083

HEX LOCK NUT NYLON

$4.49

$

In Stock, Qty 20+

0

23

Cub Cadet 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 18

0

24

Cub Cadet 914-0470

COTTER PIN
(Superseded to 714-0470)

$4.49

$

In Stock, Qty 20+

0

$5.49

$

In Stock, only 2 left!

0

$18.99

$

In Stock, Qty 10

0

27

Cub Cadet 731-07993A

SNAP SPACER .75

$3.49

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-08177

MANUL LIFT FENDER COVER

$21.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 732-04869A

TORSION SPRING

$4.49

$

In Stock, Qty 20+

0

30

Cub Cadet 732-3093

EXTENSION SPRING

$61.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 738-0234

SHOULDER SCREW .500 DIA x .295

$10.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 738-04428

SHOULDER BOLT .562 x .360

$13.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 938-0744A

SHOULDER BOLT

$11.99

$

In Stock, only 4 left!

0

34

Cub Cadet 941-0225

FLANGE BEARING

$7.49

$

In Stock, Qty 20+

0

35

Cub Cadet 741-04504

HEX FLANGE SPLIT BEARING

$8.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 747-05426

MANUAL LIFT HANDLE

$37.99

$

In Stock, only 2 left!

0

37

Cub Cadet 747-05462

DECK ANTI SWAY ROD

$33.99

$

In Stock, only 1 left!

0

38

Cub Cadet 747-06259A

LIFT ADJUSTMENT LINK

$19.99

$

Usually ships in 3-6 days

0
