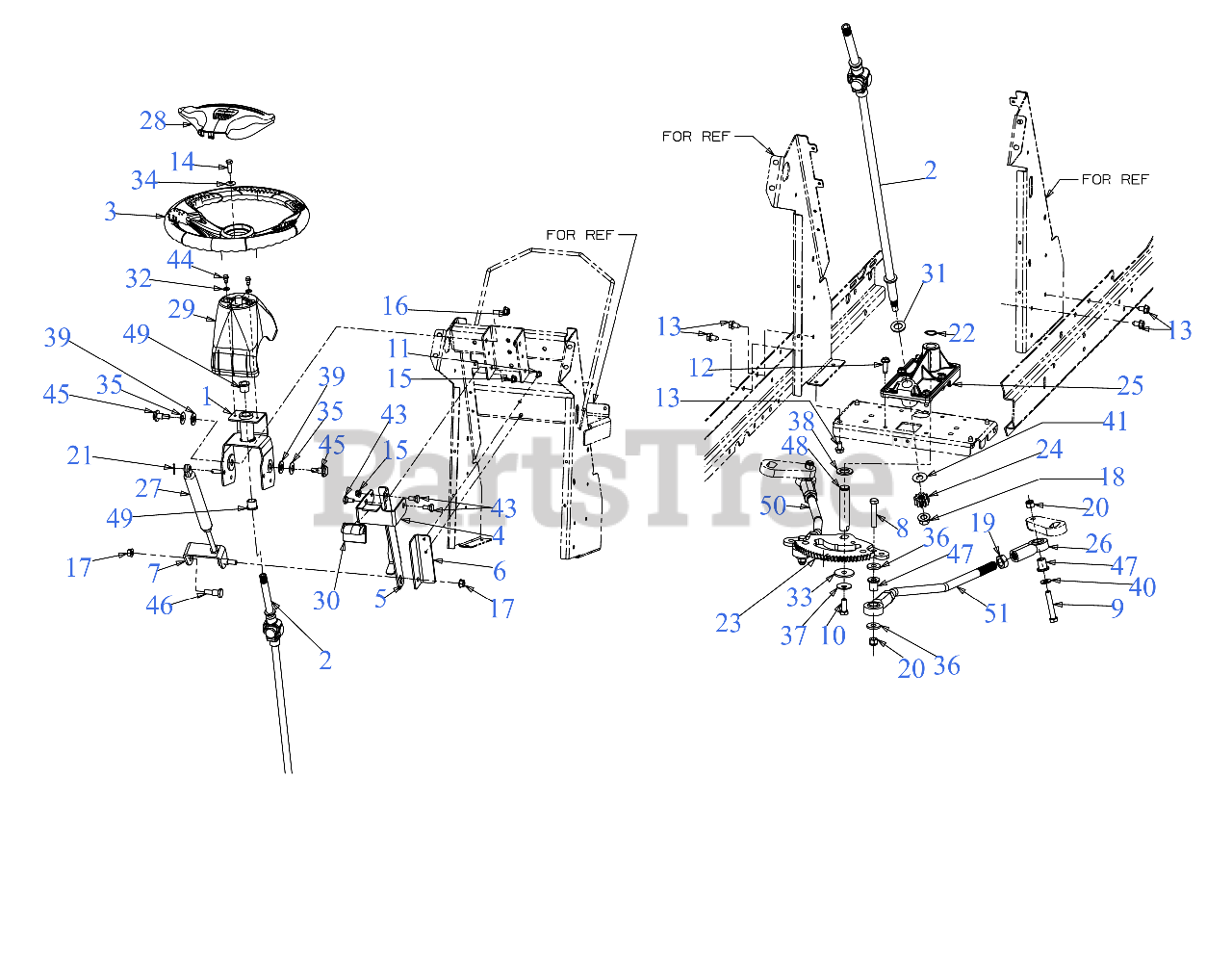

XT3-GS (14R-3JM-010) - Cub Cadet XT3 Enduro Garden Tractor (2021) Steering Parts Diagram

XT3 Enduro Garden Tractor

Steering Parts Diagram

  • Title

1

Cub Cadet 603-04852C

UPPER STEERING BRACKET ASSEMBLY

Variations

Cub Cadet 603-04852C-0637

Steering Bracket Assembly, Upper - POWDER BLACK (0637)

$142.99

$

In Stock, only 1 left!

0

$114.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 617-04095A

STEERING SHAFT ASSEMBLY

$290.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 631-04008B

STEERING WHEEL

$94.99

$

In Stock, only 4 left!

0

4

Cub Cadet 703-08105A

TILT LEVER BRACKET

Variations

Cub Cadet 703-08105A-0637

Tilt Lever Bracket - POWDER BLACK (0637)

$29.99

$

Usually ships in 3-6 days

0

$24.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 703-08114A

TILT ENGAGE BRACKET

Variations

Cub Cadet 703-08114A-0637

Tilt Engage Bracket - POWDER BLACK (0637)

$31.99

$

Usually ships in 3-6 days

0

$25.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 703-08180

TILT STEERING BRACKET

Variations

Cub Cadet 703-08180-0637

BRACKET-TILT STEERING MOUNT - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$14.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-08505

DAMPER CYLINDER PIVOT BRACKET

$29.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 710-0151

HEX SCREW 3/8-24 X2.00

$7.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-0331

HEX SCREW 3/8-24 x 2.25 GR5

$6.99

$

In Stock, Qty 7

0

10

Cub Cadet 710-0591

SCREW 3/8-24 x 1.00 GR5

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0599

SCREW 1/4-20 X.500

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-0602

SCREW 5/16-18 x 1.00

$4.49

$

In Stock, Qty 20+

0

13

Cub Cadet 710-0604A

SCREW 5/16-18 x .625

$4.49

$

In Stock, Qty 20+

0

14

Cub Cadet 710-0643

SCREW 5/16-18 x 1.00 GR5

$6.99

$

In Stock, Qty 5

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 912-0431

HEX LOCK NUT

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 712-0459

FLANGE LOCK NUT

$4.99

$

In Stock, Qty 20+

0

19

Cub Cadet 712-3056

HEX JAM NUT 5/8-18

$4.99

$

In Stock, Qty 13

0

20

Cub Cadet 912-3061

INSERT NUT 3/-24
(Superseded to 712-3061)

$6.99

$

In Stock, Qty 14

0

21

Cub Cadet 914-0507

COTTER PIN-3/32 DIA x .75

$4.49

$

In Stock, Qty 17

0

22

Cub Cadet 916-0101

SNAP RING FOR .750 DIA SHAFT
(Superseded to 716-0101)

$3.99

$

In Stock, Qty 20+

0

23

Cub Cadet 717-04870B

STEERING GEAR SEGMENT

$110.99

$

In Stock, only 2 left!

0

24

Cub Cadet 717-04943

STEERING PINION GEAR

$63.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 919-04756B

STEERING HOUSING ASSEMBLY

$165.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 937-3000

GREASE FITTING

Note: (Not Shown)

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 741-0338

FLANGE BEARING

Note: (Not Shown)

$9.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 741-0966

FLANGE BEARING

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 723-04050

BALL JOINT ROD END

$59.99

$

In Stock, only 3 left!

0

27

Cub Cadet 927-04320

DAMPER CYLINDER

$72.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 731-04532B

STEERING WHEEL COVER

$24.99

$

In Stock, Qty 12

0

29

Cub Cadet 731-07815A

STEERING COLUMN

$25.99

$

In Stock, only 1 left!

0

30

Cub Cadet 731-3224

TILT WHEEL LEVER

$11.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 736-0156

FLAT WASHER .635 ID x 1.12 OD x .090

$4.49

$

In Stock, Qty 12

0

32

Cub Cadet 736-0204

FLAT WASHER .344 ID x .62 OD x .033

$4.49

$

In Stock, Qty 20+

0

33

Cub Cadet 936-0227

FLAT WASHER
(Superseded to 736-0227)

$

$

Not available

34

Cub Cadet 736-0242

BELL WASHER .337 X.867 x .057

$4.49

$

In Stock, Qty 20+

0

35

Cub Cadet 936-0255

BELL WASHER
(Superseded to 736-0255)

$

$

Not available

36

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 2 left!

0

37

Cub Cadet 736-0331

BELL WASHER .390x1.130x.062

$3.99

$

In Stock, Qty 20+

0

38

Cub Cadet 736-04571

SHIM WASHER .76X1.25X.10

$3.49

$

In Stock, Qty 10

0

39

Cub Cadet 736-0626

FLAT WASHER

$9.49

$

In Stock, only 2 left!

0

40

Cub Cadet 736-3050

FLAT WASHER

$4.49

$

In Stock, Qty 16

0

41

Cub Cadet 736-3084

FLAT WASHER

$4.99

$

In Stock, Qty 20+

0

43

Cub Cadet 938-0140

SHOULDER SCREW .437 DIA x .180
(Superseded to 738-0140)

$

$

Not available

44

Cub Cadet 738-04278

SHOULDER SCREW 1/4-20X.50 19"PSH

$6.99

$

In Stock, Qty 5

0

45

Cub Cadet 738-04484

BOLT-SHLDR .49 DIA x .50

$7.99

$

In Stock, only 1 left!

0

46

Cub Cadet 738-04495

SHOULDER BOLT .50 DIA x .66

$17.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 738-05136

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

48

Cub Cadet 738-05142

STEERING SHAFT SEGMENT

$30.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 941-0353

FLANGE BEARING
(Superseded to 741-0353)

$11.99

$

In Stock, Qty 20+

0

50

Cub Cadet 747-06529

STEERING DRAG LINK (LH)

$45.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 747-06530

STEERING DRAG LINK (RH)

$45.99

$

Usually ships in 3-6 days

0
