XT3-GS (14A-3JM-010) - Cub Cadet XT3 Enduro Garden Tractor (2017) Drive Parts Diagram

XT3 Enduro Garden Tractor

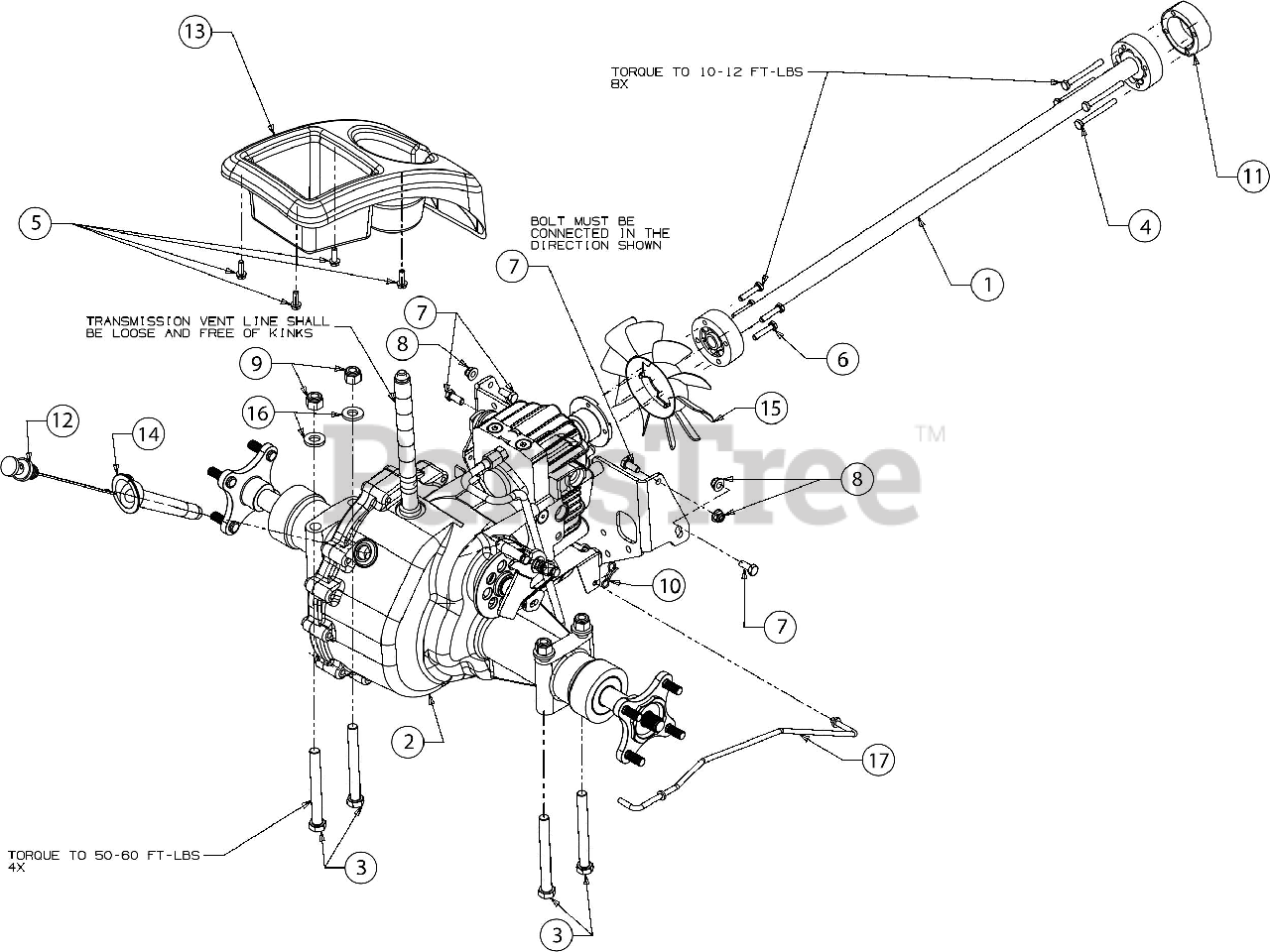

Drive Parts Diagram

  • Title

1

Cub Cadet 918-04993

DRIVE SHAFT ASSEMBLY 30.55

$296.99

$

Usually ships in 3-6 days

0

2

n/a

TRANSMISSION

Note: (See Separate Breakdown)

$

$

Not available

3

Cub Cadet 710-0465

SCREW 1/2-20 x 4.50 GR5

$11.99

$

In Stock, only 1 left!

0

4

Cub Cadet 710-04743

SCREW 1/4-20 x 2.50 GR5

$5.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, only 4 left!

0

6

Cub Cadet 710-1062

SCREW 1/4-20 x 1.25 GR5

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-3008

SCREW 5/16-18 x .75 GR5

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Cub Cadet 912-3058

HEX NUT CENTER

$5.99

$

In Stock, Qty 16

0

10

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

11

Cub Cadet 718-04428A

DRIVE SHAFT ADAPTER

$60.99

$

In Stock, only 2 left!

0

12

Cub Cadet 727-3148

TRANSMISSION DIPSTICK

$29.99

$

In Stock, only 1 left!

0

13

Cub Cadet 731-07912

FENDER COVER-CUP HOLDER (LH)

$29.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-3245

DIPSTICK HOLDER

$32.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 731-3297

10 BLADE COOLING FAN

$37.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 736-3019

FLAT WASHER .531X1.060X.134

$5.99

$

In Stock, Qty 11

0

17

Cub Cadet 747-05509B

HYDRO PUMP RELEASE ROD

$37.99

$

Usually ships in 3-6 days

0
