XT2-LX 54 FAB (13WIA4CA010) - Cub Cadet 54" XT2 Enduro Lawn Tractor, Fab Deck (2015) Kawasaki FR691V-AS17 Fuel Tank & Fuel Valve Parts Diagram

54" XT2 Enduro Lawn Tractor, Fab Deck

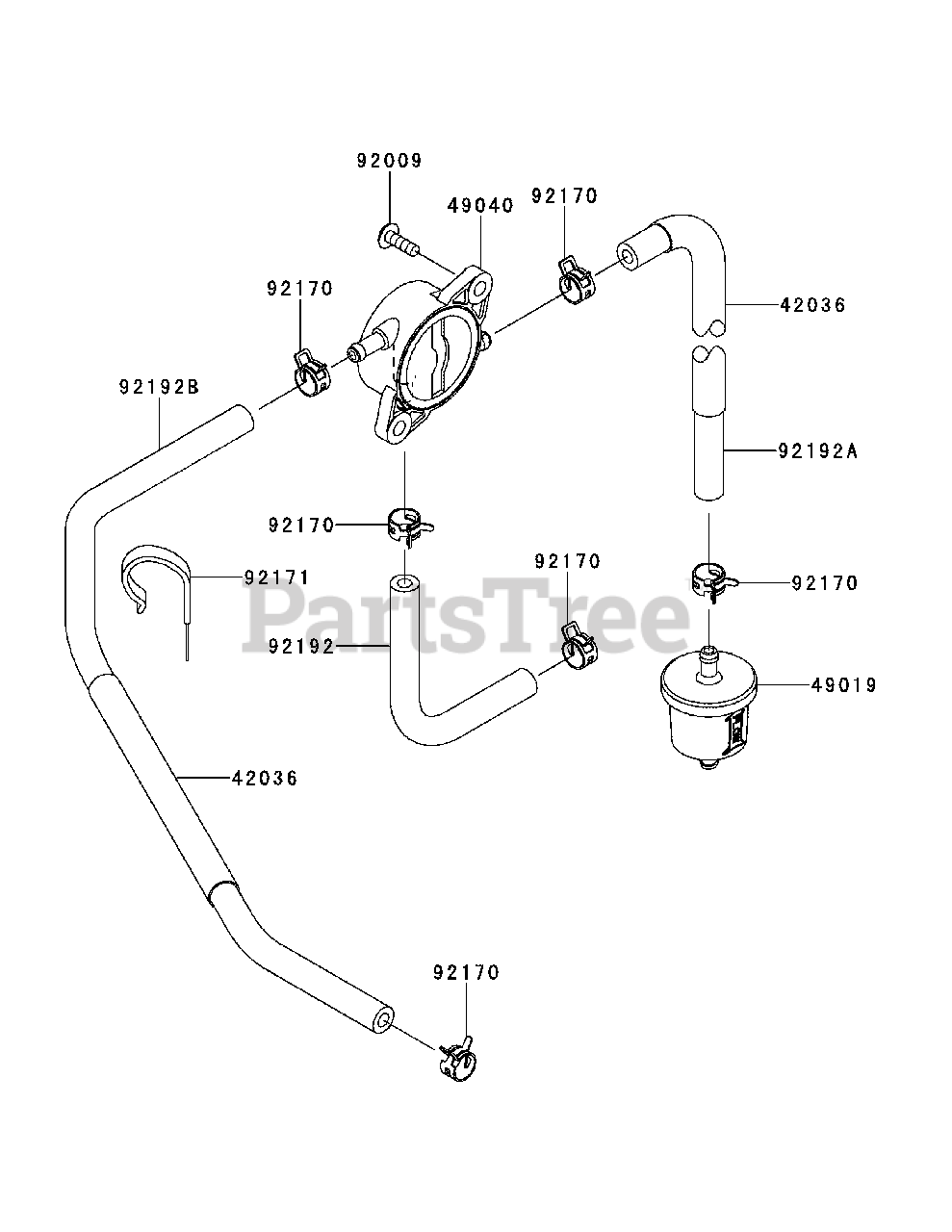

Kawasaki FR691V-AS17 Fuel Tank & Fuel Valve Parts Diagram

  • Title

42036

Cub Cadet KM-42036-7015

Sleeve

$3.99

$

In Stock, Qty 10

0

49019

Cub Cadet KM-49019-0014

Fuel Filter
(Superseded to KM-49019-0027)

$9.99

$

In Stock, Qty 20+

0

49040

Cub Cadet KM-49040-7008

Fuel Pump
(Superseded to KM-49040-0770)

$38.99

$

Usually ships in 2-5 days

0

92009

Cub Cadet KM-92009-2303

Screw

$2.99

$

In Stock, Qty 20+

0

92170

Cub Cadet KM-92170-2009

Clamp
(Superseded to KM-92173-1582)

$2.99

$

In Stock, Qty 20+

0

92171

Cub Cadet KM-92171-7005

Clamp

$9.99

$

Usually ships in 2-5 days

0

92192

Cub Cadet KM-92192-7148

Tube, 6.4 X 12.7 X 150

$6.99

$

In Stock, Qty 20+

0

92192A

Cub Cadet KM-92192-7172

Tube, 6.35 X 12.7 X 185
(Superseded to KM-92192-2388)

$5.49

$

In Stock, Qty 11

0

92192B

Cub Cadet KM-92192-7188

Tube, 6.35 X 12.7 X 390
(Superseded to KM-92192-2392)

$6.49

$

In Stock, Qty 11

0
