XT2-LX 46 KH FAB (13AQA1TNA10) - Cub Cadet 46" XT2 Enduro Lawn Tractor, Fab Deck, Kohler (2023) Deck Parts Diagram

46" XT2 Enduro Lawn Tractor, Fab Deck, Kohler

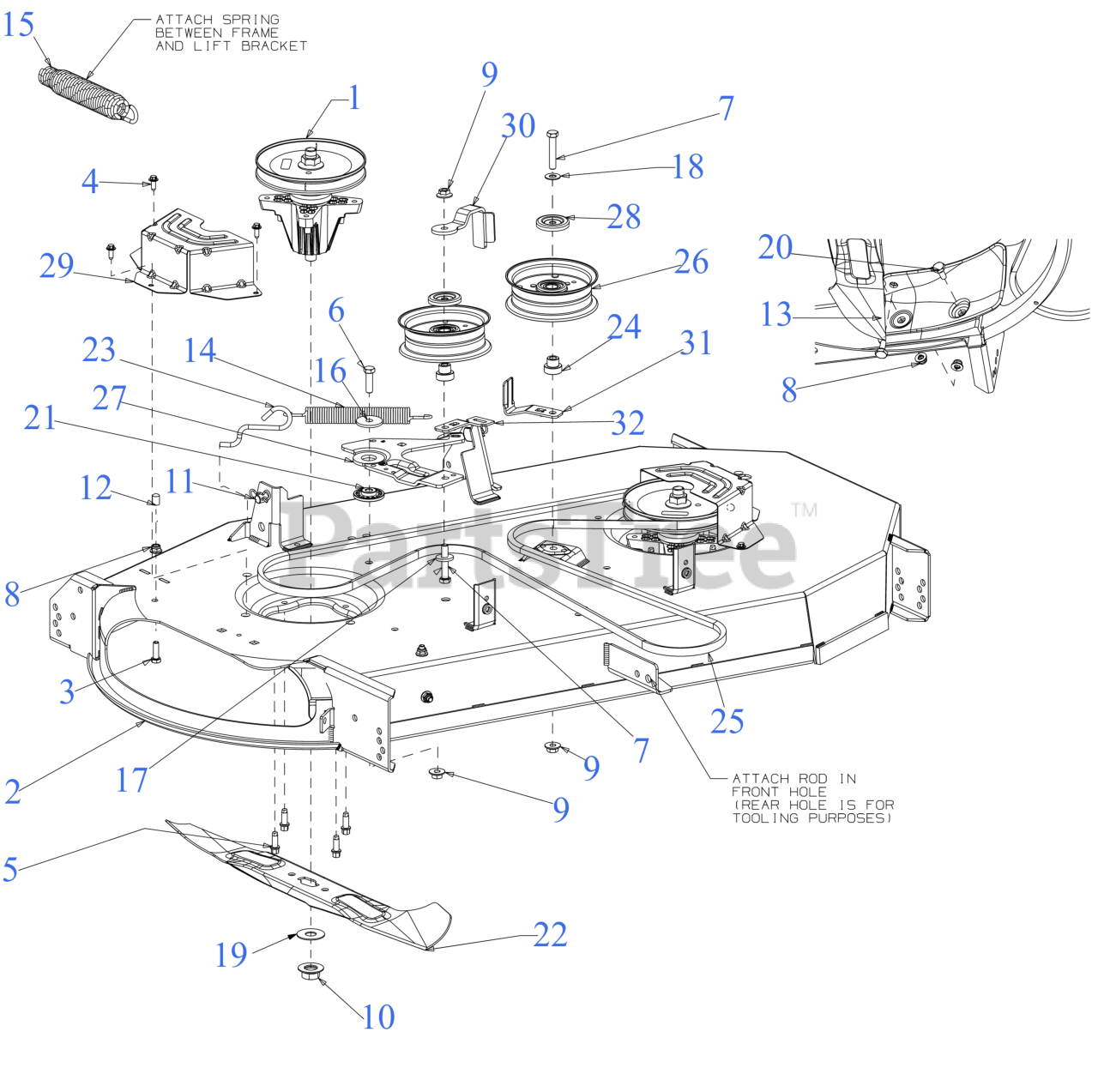

Deck Parts Diagram

  • Title

1

Cub Cadet 618P09258

SPINDLE ASSEMBLY (6.93 DIA)

Note: (See Separate Breakdown)

$132.99

$

In Stock, Qty 20+

0

2

Cub Cadet 983-05153D

46" FAB DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$1484.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

4

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

5

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, only 1 left!

0

6

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 10

0

7

Cub Cadet 710-06178

SCREW 3/8-16 x 2.0

Note: (3/15/23 & Before)

$6.49

$

In Stock, only 3 left!

0

7

Cub Cadet 710-3096

SCREW 3/8-16 x 2.0 GR 8

Note: (3/15/23 & After)

$7.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

10

Cub Cadet 712-07050

HEX FLANGE NUT 5/8-18 GR5

$5.99

$

In Stock, only 4 left!

0

11

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

13

Cub Cadet 731-10629A

DISCHARGE BAFFLE

$20.99

$

In Stock, only 1 left!

0

14

Cub Cadet 732-04960

EXTENSION SPRING

$14.99

$

In Stock, only 3 left!

0

15

Cub Cadet 732-05242C

LIFT ASSIST SPRING (LARGE)

$22.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0227

FLAT WASHER .390x1.500x.134

$6.49

$

In Stock, Qty 13

0

17

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-05080

FLAT WASHER .401X.88

$3.49

$

Usually ships in 3-6 days

0

19

Cub Cadet 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, Qty 8

0

20

Cub Cadet 938-04033

SHOULDER SCREW
(Superseded to 738-04033)

$

$

Not available

21

Cub Cadet 738-05099

SHOULDER SPACER

$7.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 742P05510

23.25" BLADE (2IN1) (S SHAPE CENTER HOLE)

$35.99

$

In Stock, Qty 20+

0

22

Cub Cadet 490-110-C192

Cub Cadet 46" HI LIFT BLADE SET (S SHAPE CENTER HOLE) (-05510)

Note: Retail Package Part

$71.99

$

In Stock, only 2 left!

0

22

Cub Cadet 742P05510-X

23.25" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$38.99

$

In Stock, only 2 left!

0

22

Cub Cadet 490-110-C203

Cub Cadet 46" XTREME BLADE SET (S SHAPE CENTER HOLE) ( -05510-X)

Note: Retail Package Part

$71.99

$

In Stock, only 3 left!

0

22

Cub Cadet 742P05510-L

23.25" LOW LIFT BLADE (S SHAPE CENTER HOLE)

$42.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 490-110-C199

Cub Cadet 46" LOW LIFT BLADE SET (S SHAPE CENTER HOLE) (-05510-L)

Note: Retail Package Part

$79.99

$

In Stock, only 1 left!

0

23

Cub Cadet 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

25

Cub Cadet 954-05087A

V-BELT A SECX108.3

$77.99

$

In Stock, only 2 left!

0

25

Cub Cadet 490-501-C077

Cub Cadet 46" DECK BELT (-05087A)

Note: Retail Package Part

$77.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 490-501-Y077

Troy-Bilt 46" DECK BELT

Note: Retail Package Part

$77.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

27

Cub Cadet 783E08284B

46" IDLER PIVOT BRACKET

$33.99

$

In Stock, only 1 left!

0

28

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

29

Cub Cadet 783-08547

DECK BELT COVER 46"

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08547-0637

Deck Belt Cover, Black - POWDER BLACK (0637)

$14.99

$

In Stock, Qty 20+

0

Cub Cadet 783-08547-0606

Deck Belt Cover, 46" - MAJESTIC ORANGE (0606)

$14.99

$

In Stock, only 3 left!

0

Cub Cadet 783-08547-4044

Deck Belt Cover, 46" - CRAFTSMAN RED (4044)

$14.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-08547-0691

Deck Belt Cover, 46" - BLACK JACK (0691)

$14.99

$

In Stock, only 3 left!

0

Cub Cadet 783-08547-0638

COVER-DECK BELT 46 - MTD/TROY-BILT RED (0638)

$14.99

$

Usually ships in 3-6 days

0

Cub Cadet 783-08547-0709

COVER-DECK BELT 46 - MASTERCRAFT GREEN (0709)

$14.99

$

Usually ships in 3-6 days

0

$12.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 783E08619A

BELT KEEPER
(Superseded to 783Z08619A)

$24.99

$

In Stock, Qty 20+

0

31

Cub Cadet 783-08690A

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08690A-0637

Belt Keeper, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$11.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 783-08867

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08867-0637

KEEPER-BELT - POWDER BLACK (0637)

$16.99

$

Usually ships in 3-6 days

0

$13.99

$

Usually ships in 3-6 days

0
