XT2-LX 46 FAB (13WQA4CN010) - Cub Cadet 46" XT2 Enduro Lawn Tractor, Fab Deck (2016) Electrical Parts Diagram

46" XT2 Enduro Lawn Tractor, Fab Deck

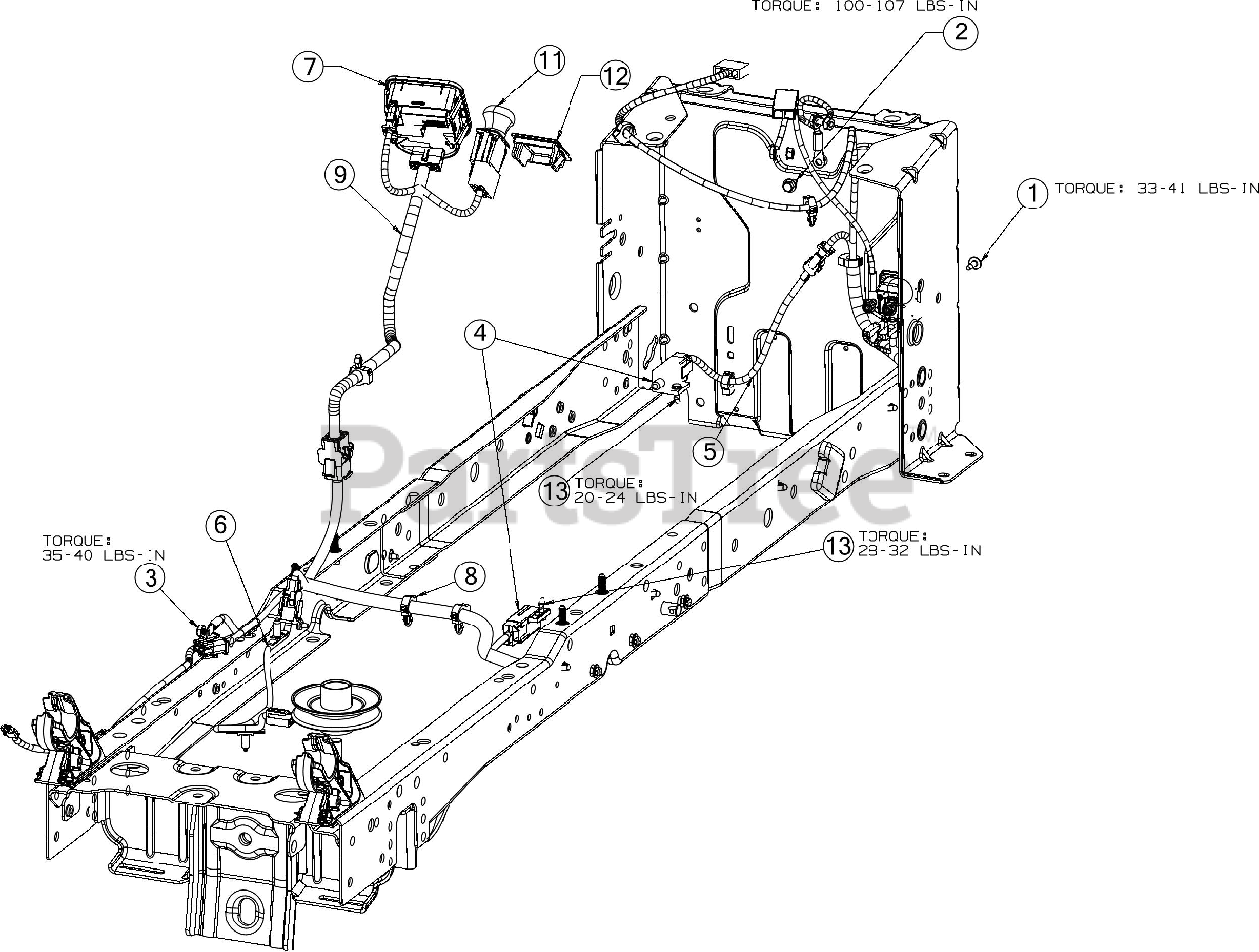

Electrical Parts Diagram

  • Title
1

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 8

0

2

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-05106

HEX NUT 1/4-20

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 14

0

5

Cub Cadet 925-06167

REVERSE HARNESS

$13.99

$

In Stock, only 1 left!

0

6

Cub Cadet 725-06173

CLUTCH HARNESS 11"

$30.99

$

In Stock, only 1 left!

0

7

Cub Cadet 925-06427

MODULE-PBS/HRMTR/SVC MNDR
(Superseded to 925-06427A)

$199.99

$

In Stock, Qty 12

0

8

Cub Cadet 925-06718

MAIN HARNESS E-PTO/PBS/RMC
(Superseded to 925-06718A)

$227.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 925-06724

DASH HARNESS E-PTO/PBS/RMC

$56.99

$

In Stock, only 1 left!

0

10

Cub Cadet 725-06779

PBS KEY
(Superseded to 725-06779C)

Note: Not Shown

$15.99

$

In Stock, only 1 left!

0

11

Cub Cadet 925-3233A

PTO SWITCH (YELLOW KNOB)

$51.99

$

In Stock, Qty 9

0

12

Cub Cadet 731-11495

DASH HOUR METER PLUG
(Superseded to 731-11495A)

$5.49

$

In Stock, only 1 left!

0

13

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0
