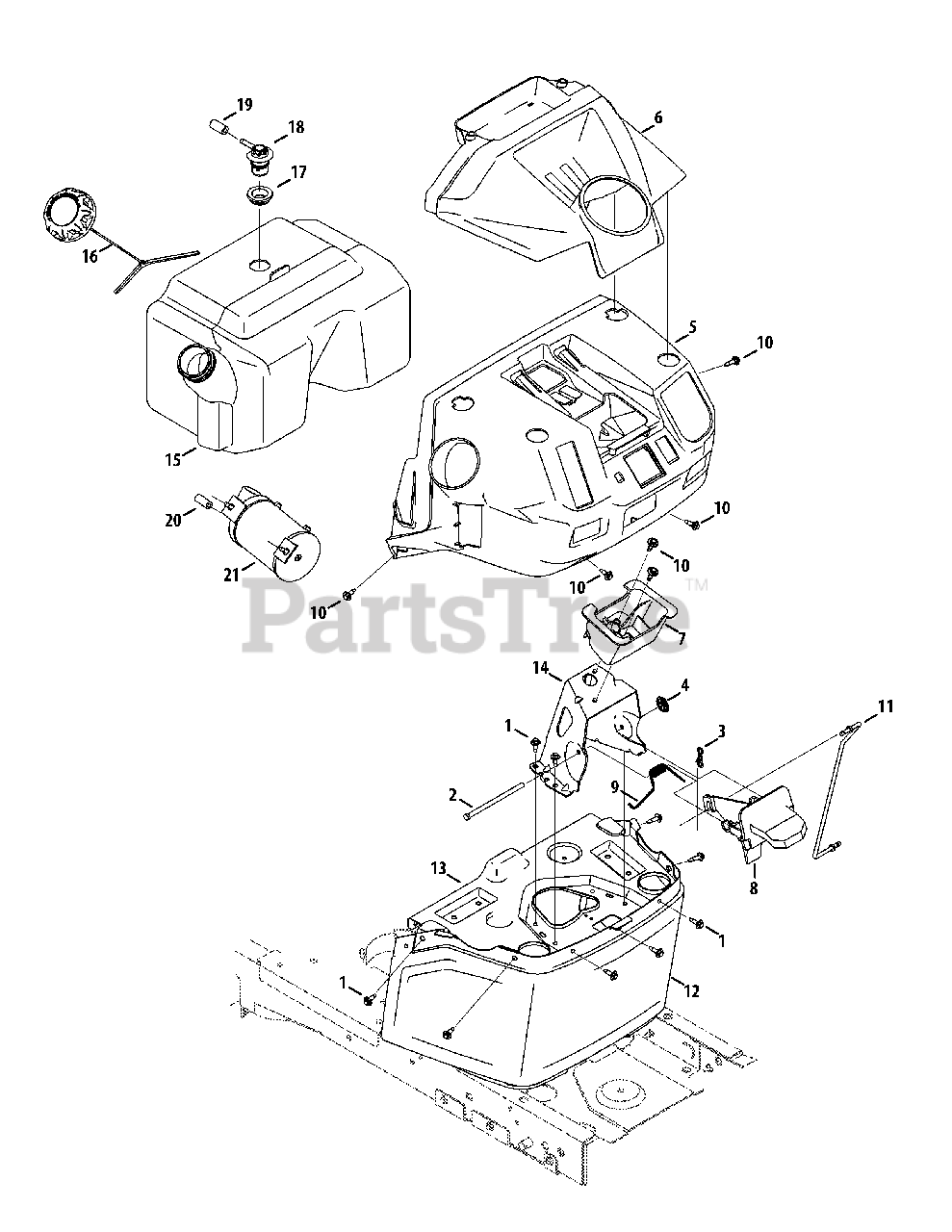

XT2-LX 46 FAB (13WIA4CN210) - Cub Cadet 46" XT2 Enduro Lawn Tractor, Fab Deck, CARB (2015) Fuel Tank & Dash Parts Diagram

46" XT2 Enduro Lawn Tractor, Fab Deck, CARB

Fuel Tank & Dash Parts Diagram

  • Title
1

Cub Cadet 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 10

0

2

Cub Cadet 711-06378

Hinge Pin, .25 Dia x 4.50 LG

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 714-04040

Pin, Cotter, Bow-Tie 72

$1.49

$

In Stock, Qty 20+

0

4

Cub Cadet 926-04012

Push Nut, .25 dia.
(Superseded to 726-04012)

$

$

Not available

5

Cub Cadet 931-09815

Upper Dash
(Superseded to 931-09815B)

$63.99

$

In Stock, only 1 left!

0

6

Cub Cadet 931-09816

Dash Cap
(Superseded to 931-12495)

$31.99

$

In Stock, only 1 left!

0

7

Cub Cadet 731-10618

Steering Shaft Bearing

$14.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-10636

Dash Lever
(Superseded to 731-10636C)

$12.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 732-05199

Torsion Spring, .330 ID

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 738-05090

Shoulder Screw, .368 x .115, M6-1

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 747-06192

Control Rod
(Superseded to 747-06192A)

$16.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 783-08391-0637

Lower Dash
(Superseded to 783-08391B-0637)

$48.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 783-08453-0637

Dash Plate
(Superseded to 783-09546B-0637)

$24.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 783-08538-0637

Steering Bearing Mounting Bracket
(Superseded to 783-08538A-0637)

$31.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 951-05101

Tank, Fuel, 3 Gal.
(Superseded to 951-05101C)

$162.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 951-12426A

Cap, Fuel Carb
(Superseded to 951-12426B)

$41.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 735-04081

Grommet, Rubber, 23.0 ID

$4.99

$

In Stock, Qty 20+

0

18

Cub Cadet 751-12118

Valve, Rollover Grommet

$35.99

$

In Stock, only 2 left!

0

19

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet 751-10750-28

Hose, Fuel, Low Perm, 7/32 Yellow (CARB)

$

$

Not available

21

Cub Cadet 751-12372

Carbon Canister (CARB)
(Superseded to 951-12372A)

$71.99

$

Usually ships in 3-6 days

0
