XT2-LX 42 KW (13WGA1CS210) - Cub Cadet 42" XT2 Enduro Lawn Tractor, Kawasaki, CARB (2015) Kawasaki FR600V-AS06 Lubrication Equipment Parts Diagram

42" XT2 Enduro Lawn Tractor, Kawasaki, CARB

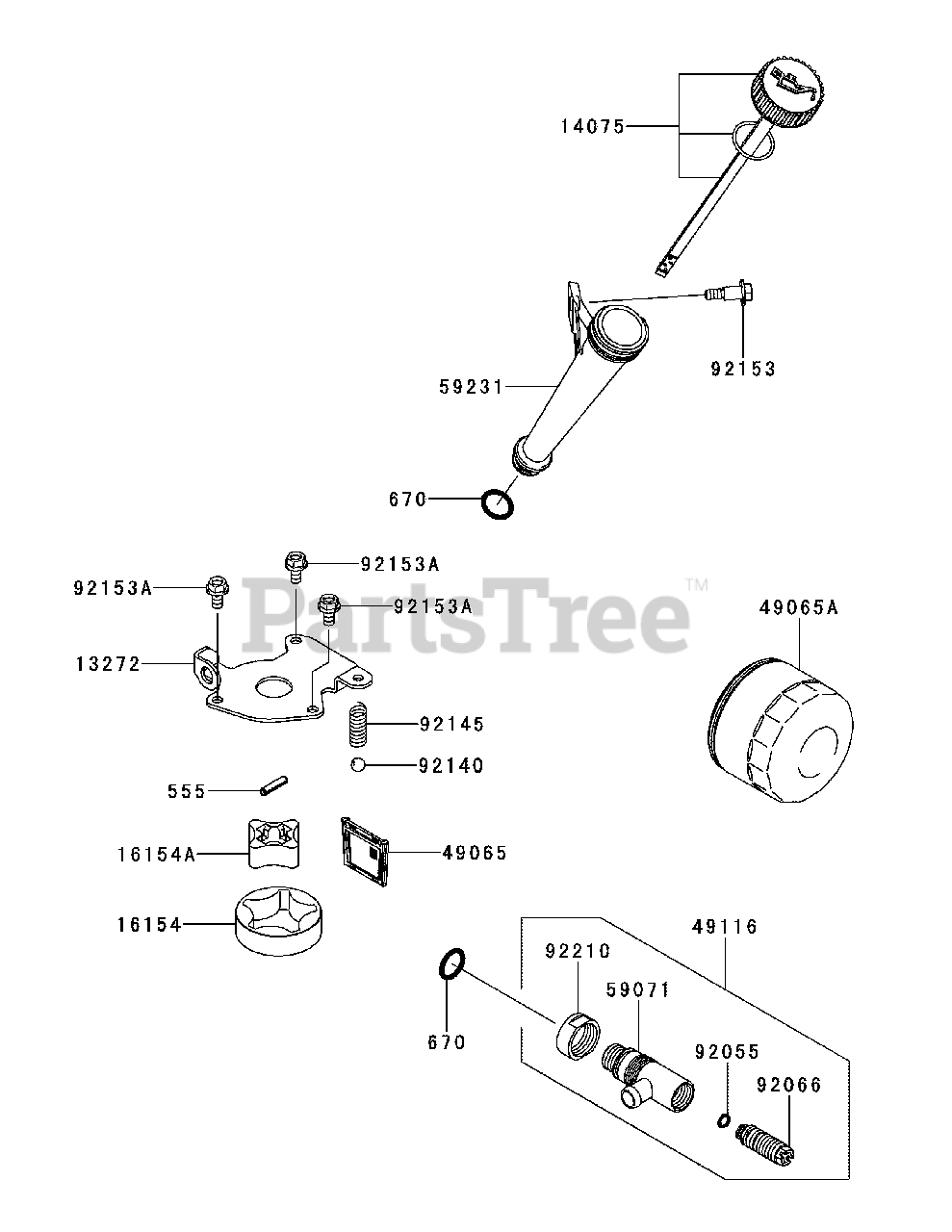

Kawasaki FR600V-AS06 Lubrication Equipment Parts Diagram

  • Title

13272

Cub Cadet KM-13272-7011

Rotor Plate

$8.49

$

Usually ships in 2-5 days

0

14075

Cub Cadet KM-14075-7013

Oil Gauge Cap Assembly
(Superseded to KM-14075-0707)

$10.99

$

In Stock, Qty 8

0

16154

Cub Cadet KM-16154-7010

Outer Rotor Pump

$18.99

$

In Stock, only 4 left!

0

16154A

Cub Cadet KM-16154-7011

Inner Rotor Pump

$8.99

$

In Stock, Qty 13

0

49065

Cub Cadet KM-49065-7006

Oil Filter Screen
(Superseded to KM-49065-0720)

$3.49

$

In Stock, Qty 17

0

49065A

Cub Cadet KM-49065-7007

Oil Filter
(Superseded to KM-49065-0721)

$18.99

$

In Stock, Qty 20+

0

49116

Cub Cadet KM-49116-7001

Valve Assembly
(Superseded to KM-49116-0714)

$9.99

$

Usually ships in 3-6 days

0

59071

Cub Cadet KM-59071-7008

Joint

$

$

Not available

59231

Cub Cadet KM-59231-0712

Filler
(Superseded to KM-59231-0778)

$8.99

$

Usually ships in 3-6 days

0

92055

Cub Cadet KM-92055-7002

O-Ring, 6mm

$4.99

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-7007

Plug
(Superseded to KM-92066-0966)

$5.49

$

Usually ships in 3-6 days

0

92140

Cub Cadet KM-92140-7003

Ball

$1.49

$

In Stock, Qty 13

0

92145

Cub Cadet KM-92145-7002

Spring

$

$

Not available

92153

Cub Cadet KM-92153-7008

Bolt
(Superseded to KM-92154-2823)

$0.99

$

In Stock, Qty 8

0

92153A

Cub Cadet KM-92153-7043

Bolt, 6 X 12
(Superseded to KM-92154-2938)

$0.99

$

In Stock, Qty 20+

0

92210

Cub Cadet KM-92210-7012

Nut, M22

$2.99

$

Usually ships in 2-5 days

0

555

Cub Cadet KM-555A0420

Spring Pin, 4 X 20

$0.99

$

In Stock, Qty 11

0

670

Cub Cadet KM-670D2016

O-Ring, 16mm

$1.99

$

In Stock, Qty 20+

0
