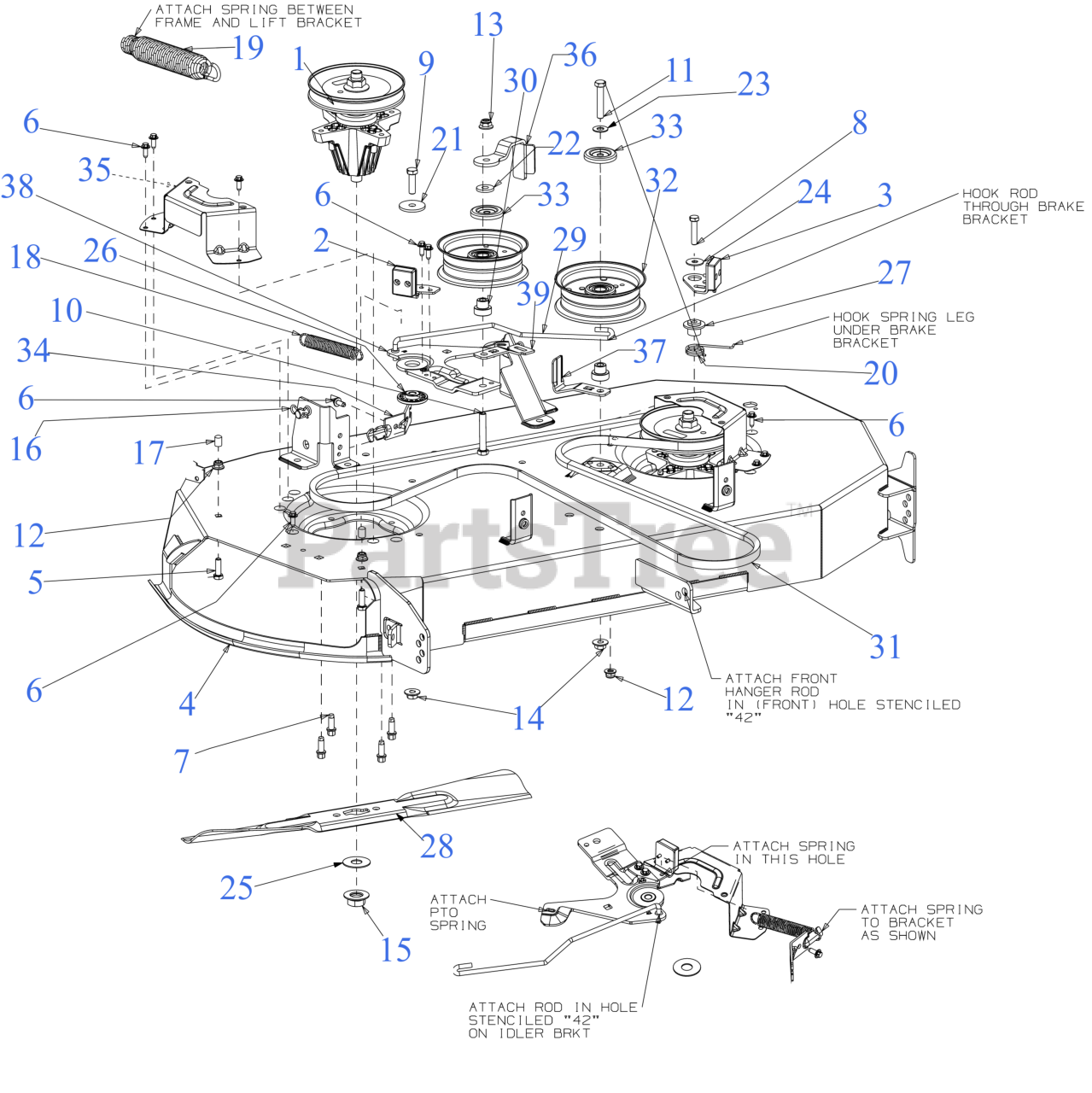

Deck Parts Diagram

  • Title

1

Cub Cadet 618P09259

SPINDLE ASSEMBLY (6.3 DIA)

Note: (See Separate Breakdown)

$132.99

$

In Stock, only 1 left!

0

2

Cub Cadet 983-05182B

DECK BRAKE ASSEMBLY (RH)

$99.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 728-0175

RIVOT

Note: (Not Shown)

$4.99

$

In Stock, Qty 10

0

2

Cub Cadet 761-05007

DECK BRAKE PAD

Note: (Not Shown)

$10.99

$

In Stock, Qty 9

0

3

Cub Cadet 983-05396

DECK BRAKE ASSEMBLY

$107.99

$

In Stock, Qty 19

0

3

Cub Cadet 728-0175

RIVOT

Note: (Not Shown)

$4.99

$

In Stock, Qty 10

0

3

Cub Cadet 761-05007

DECK BRAKE PAD

Note: (Not Shown)

$10.99

$

In Stock, Qty 9

0

4

Cub Cadet 683P06554B

42" FAB DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$851.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

Note: TORQUE TO 143-174 IN*LBS

$3.99

$

In Stock, only 4 left!

0

6

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 11

0

7

Cub Cadet 710-06322

SCREW 5/16-18 x .875

Note: TORQUE TO 200-300 IN*LBS

$5.49

$

In Stock, Qty 5

0

8

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

Note: TORQUE TO 143-174 IN*LBS

$4.49

$

In Stock, only 3 left!

0

9

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

Note: TORQUE TO 256-313 IN*LBS

$3.99

$

In Stock, Qty 10

0

10

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

Note: TORQUE TO 256-313 IN*LBS

$6.99

$

In Stock, Qty 20+

0

11

Cub Cadet 710-3096

SCREW 3/8-16 x 2.0 GR 8

Note: TORQUE BOLT TO 256-313 IN*LBS

$7.99

$

In Stock, only 1 left!

0

12

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 712-04065

NUT

Note: TORQUE TO 256-313 IN*LBS

$3.99

$

In Stock, Qty 20+

0

14

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 19

0

15

Cub Cadet 712-07050

HEX FLANGE NUT 5/8-18 GR5

Note: TORQUE TO 70-90 FT*LBS

$5.99

$

In Stock, Qty 6

0

16

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 1 left!

0

17

Cub Cadet 720-05010

VINYL CAP

$4.49

$

In Stock, Qty 7

0

18

Cub Cadet 732-04629

EXTENSION SPRING

$28.99

$

In Stock, Qty 6

0

19

Cub Cadet 732-05241A

LIFT ASSIST SPRING (SMALL)

$20.99

$

In Stock, only 1 left!

0

20

Cub Cadet 732-08321

TORSION SPRING

$6.99

$

In Stock, only 1 left!

0

21

Cub Cadet 736-0227

FLAT WASHER .390x1.500x.134

$6.49

$

In Stock, Qty 13

0

22

Cub Cadet 736-0258

FLAT WASHER .385 x 1.00 x .135

$4.49

$

In Stock, only 1 left!

0

23

Cub Cadet 736-05080

FLAT WASHER .401X.88

$3.49

$

Usually ships in 3-6 days

0

24

Cub Cadet 736-3078

FLAT WASHER 344X1.00

$4.49

$

In Stock, only 3 left!

0

25

Cub Cadet 736-3088

FLAT WASHER .635X1.585X.062 HDN

$4.49

$

In Stock, only 2 left!

0

26

Cub Cadet 738-05099

SHOULDER SPACER

$7.49

$

In Stock, only 1 left!

0

27

Cub Cadet 738-05272

DOUBLE SHOULDER SPACER .750 x .135

$7.49

$

In Stock, only 1 left!

0

28

Cub Cadet 742P05177

21.23" BLADE (2IN1) (S SHAPE CENTER HOLE)

$31.99

$

In Stock, only 4 left!

0

28

Cub Cadet 490-110-C191

Cub Cadet 42" HI LIFT BLADE SET (S SHAPE CENTER HOLE) (-05177A)

Note: Retail Package Part

$68.99

$

In Stock, only 2 left!

0

28

Cub Cadet 742P05177A-X

21.23" XTREME BLADE (2IN1) (S SHAPE CENTER HOLE)

$33.99

$

In Stock, only 2 left!

0

28

Cub Cadet 490-110-C202

Cub Cadet 42" XTREME BLADE SET (S SHAPE CENTER HOLE) (-05177-X)

Note: Retail Package Part

$68.99

$

In Stock, only 2 left!

0

28

Cub Cadet 742P05177-L

21.23" LOW LIFT BLADE (S SHAPE CENTER HOLE)

$36.99

$

In Stock, only 2 left!

0

28

Cub Cadet 490-110-C198

Cub Cadet 42" LOW LIFT BLADE SET (S SHAPE CENTER HOLE) (-05177-L)

Note: Retail Package Part

$71.99

$

In Stock, only 1 left!

0

29

Cub Cadet 747-06452

DECK BRAKE ROD

$14.99

$

In Stock, only 2 left!

0

30

Cub Cadet 748-05029A

SHOULDER SPACER

$4.99

$

In Stock, Qty 20+

0

31

Cub Cadet 954-05021

V-BELT A SEC x 99.75

$50.99

$

In Stock, Qty 20+

0

31

Cub Cadet 490-501-C062

Cub Cadet 42" DECK DRIVE BELT

Note: Retail Packaged Part

$50.99

$

In Stock, only 3 left!

0

32

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

33

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

34

Cub Cadet 783-08406-0637

ENGAGEMENT CABLE BRACKET

$9.49

$

In Stock, only 1 left!

0

35

Cub Cadet 783-08510D

DECK BELT COVER

Note: *CHOOSE COLOR WHEN ORDERING*

$13.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 783E08619A

BELT KEEPER
(Superseded to 783Z08619A)

$24.99

$

In Stock, Qty 5

0

37

Cub Cadet 783-08690A

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08690A-0637

Belt Keeper, Black - POWDER BLACK (0637)

$12.99

$

In Stock, Qty 20+

0

$11.99

$

Usually ships in 3-6 days

0

38

Cub Cadet 783E08863B

42" IDLER BRACKET PIVOT

$29.99

$

In Stock, only 4 left!

0

39

Cub Cadet 783-08867

BELT KEEPER

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08867-0637

KEEPER-BELT - POWDER BLACK (0637)

$16.99

$

In Stock, only 1 left!

0

$13.99

$

Usually ships in 3-6 days
