XT2-LX 42 (13WGA1CS010) - Cub Cadet 42" XT2 Enduro Lawn Tractor (2015) Kawasaki FR600V-AS06 Control Equipment Parts Diagram

42" XT2 Enduro Lawn Tractor

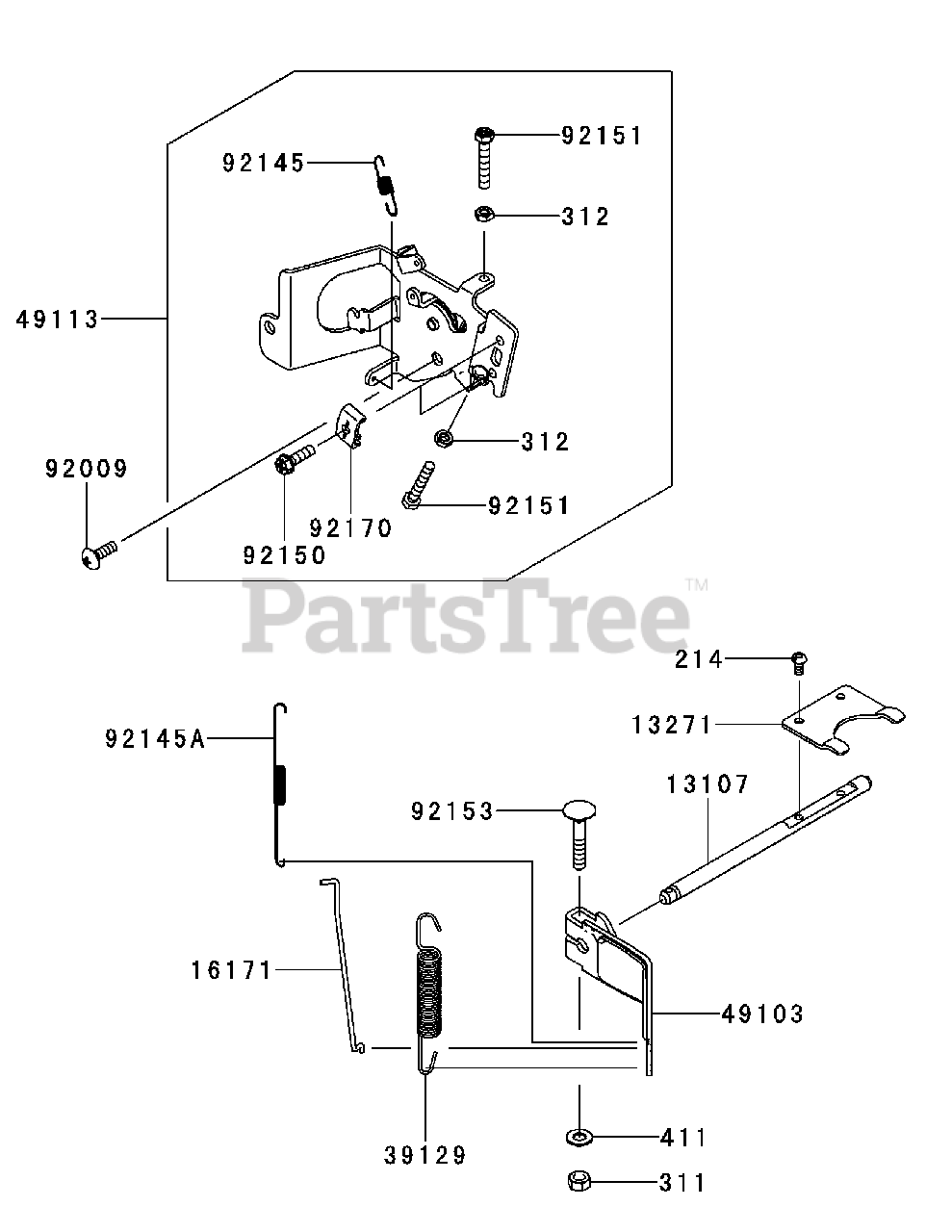

Kawasaki FR600V-AS06 Control Equipment Parts Diagram

  • Title

13107

Cub Cadet KM-13107-7049

Shaft

$12.99

$

In Stock, only 1 left!

0

13271

Cub Cadet KM-13271-7038

Plate

$3.49

$

In Stock, only 1 left!

0

16171

Cub Cadet KM-16171-7025

Link
(Superseded to KM-16171-0044)

$0.99

$

In Stock, Qty 9

0

39129

Cub Cadet KM-39129-7033

Governor Spring
(Superseded to KM-39129-0725)

$4.99

$

In Stock, only 1 left!

0

49103

Cub Cadet KM-49103-7017

Governor Arm

$5.99

$

Usually ships in 2-5 days

0

49113

Cub Cadet KM-49113-0716

Complete Control Panel
(Superseded to KM-49113-0047)

$

$

Not available

92009

Cub Cadet KM-92009-2303

Screw

$2.99

$

In Stock, Qty 7

0

92145

Cub Cadet KM-92145-2180

Spring

$0.99

$

In Stock, only 2 left!

0

92145A

Cub Cadet KM-92145-7057

Spring
(Superseded to KM-92145-1811)

$3.99

$

In Stock, only 3 left!

0

92150

Cub Cadet KM-92150-2182

Bolt, 5 X 18

$0.99

$

In Stock, Qty 10

0

92151

Cub Cadet KM-92151-7014

Bolt, 5 x 30

$1.49

$

In Stock, Qty 5

0

92153

Cub Cadet KM-92153-7033

Bolt, 6 X 35
(Superseded to KM-92154-2697)

$0.99

$

In Stock, Qty 9

0

92170

Cub Cadet KM-92170-7001

Clamp

$2.99

$

In Stock, only 3 left!

0

214

Cub Cadet KM-214AA0408

Pan Screw +-, 4 X 8

$3.99

$

In Stock, Qty 5

0

311

Cub Cadet KM-311AA0600

Hex Nut, 6mm

$0.99

$

In Stock, Qty 16

0

312

Cub Cadet KM-312AA0500

Hex Nut, 5mm

$0.99

$

In Stock, Qty 6

0

411

Cub Cadet KM-411AA0600

Plain Washer, 6mm

$4.49

$

In Stock, only 2 left!

0
