XT2-LX 42 (13AGA1CS010) - Cub Cadet 42" XT2 Enduro Lawn Tractor (2015) Kawasaki FR600V-AS06 Electric Equipment Parts Diagram

42" XT2 Enduro Lawn Tractor

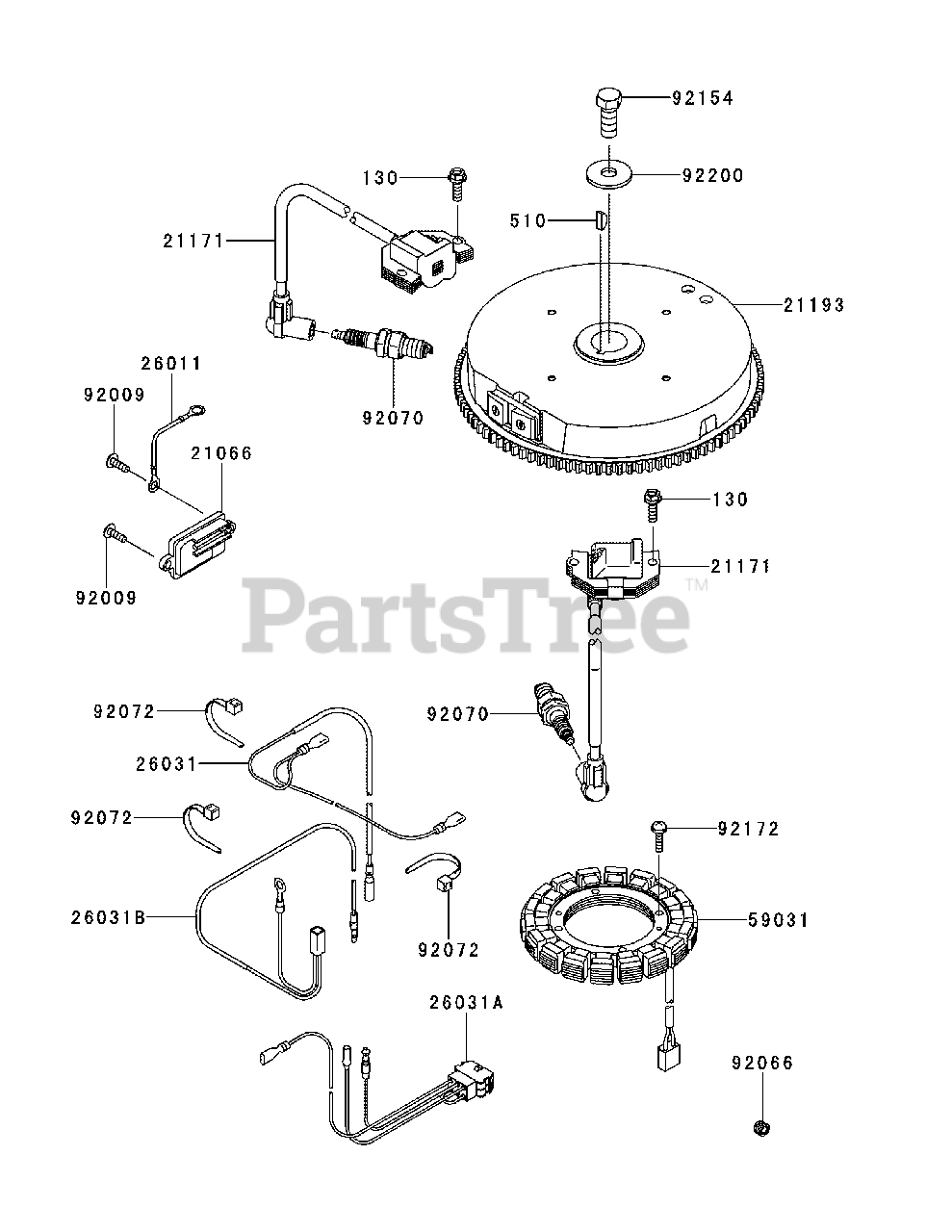

Kawasaki FR600V-AS06 Electric Equipment Parts Diagram

  • Title

21066

Cub Cadet KM-21066-7017

Voltage Regulator

$52.99

$

In Stock, Qty 20+

0

21171

Cub Cadet KM-21171-0711

Ignition Coil Assembly
(Superseded to KM-21171-0743)

$77.99

$

In Stock, Qty 20+

0

21193

Cub Cadet KM-99999-0400

Flywheel Assembly

$

$

Not available

26011

Cub Cadet KM-26011-7025

Lead Wire, L = 95

$2.99

$

In Stock, Qty 9

0

26031

Cub Cadet KM-26031-7040

Harness

$5.99

$

In Stock, Qty 20+

0

26031A

Cub Cadet KM-26031-1625

Harness

$23.99

$

In Stock, only 2 left!

0

26031B

Cub Cadet KM-26031-7047

Harness

$9.49

$

In Stock, Qty 9

0

59031

Cub Cadet KM-59031-7017

Charging Coil

$127.99

$

In Stock, Qty 20+

0

92009

Cub Cadet KM-92009-2303

Screw

$2.99

$

In Stock, Qty 20+

0

92066

Cub Cadet KM-92066-0762

Plug
(Superseded to KM-92066-0881)

$4.49

$

In Stock, Qty 6

0

92070

Cub Cadet KM-BPR4ES

Spark Plug, BPR4ES (NGK)

$3.49

$

In Stock, only 1 left!

0

92072

Cub Cadet KM-92072-7003

Band

$1.49

$

In Stock, Qty 7

0

92154

Cub Cadet KM-92154-7003

Bolt, 12 X 30

$4.99

$

In Stock, Qty 20+

0

92172

Cub Cadet KM-92172-7018

Screw, 5 X 20

$0.99

$

In Stock, Qty 20+

0

92200

Cub Cadet KM-92200-7002

Washer

$3.49

$

In Stock, Qty 10

0

130

Cub Cadet KM-130AA0620

Flanged Bolt, 6 X 20

$3.49

$

In Stock, Qty 20+

0

510

Cub Cadet KM-510A5100

Woodruff Key

$3.49

$

In Stock, Qty 20+

0
