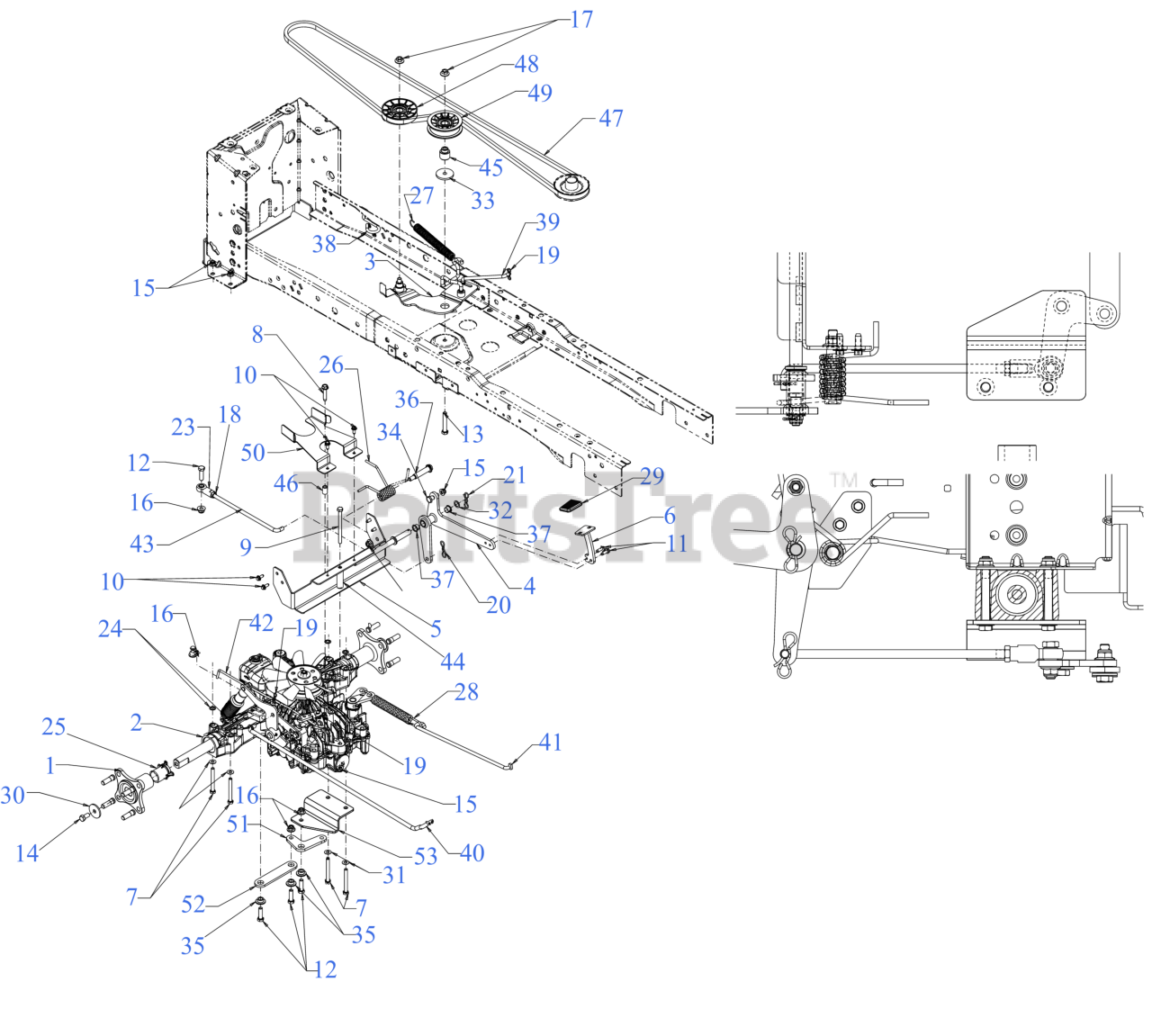

XT2-GX 54D KH FAB (14AQA6TMA10) - Cub Cadet 54" XT2 Enduro Garden Tractor, Fab Deck, Kohler (2022) Drive Parts Diagram

54" XT2 Enduro Garden Tractor, Fab Deck, Kohler

Drive Parts Diagram

  • Title

1

Cub Cadet 918-04317

WHEEL HUB ASSEMBLY

$116.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 710-0852

STUD 7/16-14 x 1.6

$6.49

$

In Stock, only 4 left!

0

2

Cub Cadet 918-07281

HYDRO TRANS ASSEMBLY

Note: (See Separate Breakdown)

$2242.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 983-05090A

IDLER BRACKET ASSEMBLY

$73.99

$

In Stock, only 2 left!

0

3

Cub Cadet 750-0890

SPACER

$6.99

$

In Stock, Qty 6

0

4

Cub Cadet 683Z05301

DIFF PEDAL PIVOT ASSEMBLY (PLATED)

$73.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 683-05303

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 683-05303-0637

BRKT-TRNSMSN MTG - POWDER BLACK (0637)

$81.99

$

Usually ships in 3-6 days

0

$65.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 683Z05323

DIFF LOCK PEDAL ASSEMBLY (PLATED)

$40.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

8

Cub Cadet 710-04605B

HEX SCREW WASHER 5/16-18 x 1.5

$6.99

$

In Stock, Qty 20+

0

9

Cub Cadet 710-05410

SCREW 5/16-18 x 4.00 GR5

$3.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 710-0642

SCREW 1/4-20 x .750

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 710-3005

SCREW 3/8-16 x 1.25 GR5

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet 710-3119

SCREW 3/8-16 x .75 GR 5

$6.99

$

In Stock, only 1 left!

0

15

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

16

Cub Cadet 712-04065

NUT

$3.99

$

In Stock, Qty 20+

0

17

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 16

0

18

Cub Cadet 712-0711

HEX JAM NUT 3/8X24

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet 714-04043

PIN:COTTER

$4.99

$

In Stock, Qty 18

0

21

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 2 left!

0

23

Cub Cadet 723-04038

ROD END 3/8 ID

$60.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, only 2 left!

0

25

Cub Cadet 731-10547A

AXLE SLEEVE 1.02 ID x 1.60 LG

$4.49

$

Usually ships in 3-6 days

0

26

Cub Cadet 732-05080

DIFF PEDAL TORSION SPRING

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 732-05108A

EXTENSION SPRING .790 DIA x 8.41

$12.99

$

In Stock, only 1 left!

0

28

Cub Cadet 732-05146

EXTENSION SPRING 0.90 DIA x 8.14

$12.99

$

In Stock, only 1 left!

0

29

Cub Cadet 735-05173

DIFF LOCK PEDAL PAD

$15.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 736-0227

FLAT WASHER .390x1.500x.134

$6.49

$

In Stock, Qty 13

0

31

Cub Cadet 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 936-0616

THRUST WASHER

$4.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

34

Cub Cadet 738-04320

SHOULDER SCREW

$5.49

$

In Stock, only 2 left!

0

35

Cub Cadet 738-04503

SHOULDER SPACER

$4.49

$

Usually ships in 3-6 days

0

36

Cub Cadet 738-06694

SHOULDER BOLT (.50 X 2.0 x 3/8 -16)

$7.99

$

In Stock, Qty 20+

0

37

Cub Cadet 741-0491

NYLINER BEARING

$5.49

$

In Stock, only 3 left!

0

38

Cub Cadet 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

39

Cub Cadet 747-06193B

IDLER BRACKET ROD

$11.99

$

In Stock, only 1 left!

0

40

Cub Cadet 747-06713A

HYDRO CONTROL ROD (PLATED)

$55.99

$

Usually ships in 3-6 days

0

41

Cub Cadet 747-06714

BRAKE CONTROL ROD (PLATED)

$39.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 747-06720A

HYDRO DISENGAGE ROD (TUFF TORQ)

$17.99

$

Usually ships in 3-6 days

0

43

Cub Cadet 747-09851

ROD .344 OD x 9.68 LG

$12.99

$

Usually ships in 3-6 days

0

44

Cub Cadet 748-05012

SPACER .337 ID x 2.02 LG

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 748-05012-0637

SPACER .337 ID X - POWDER BLACK (0637)

$7.49

$

Usually ships in 3-6 days

0

$5.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

46

Cub Cadet 750-06170

SLEEVE .33X.50X.75 LG

$5.49

$

Usually ships in 3-6 days

0

47

Cub Cadet 954-05156A

V-BELT A SEC x 90.00

$87.99

$

In Stock, only 1 left!

0

48

Cub Cadet 756-05024

V-IDLER PULLEY 3.56 OD

$25.99

$

In Stock, only 2 left!

0

49

Cub Cadet 756-05032

FLAT IDLER PULLEY 3.00 OD

$26.99

$

In Stock, only 1 left!

0

50

Cub Cadet 783-09170A

BELT KEEPER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09170A-0637

BLACK BRKTBELT KEEPER - POWDER BLACK (0637)

$35.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 783-09190

PIVOT BELLCRANK (PLATED)

$17.99

$

Usually ships in 3-6 days

0

52

Cub Cadet 783-09192

BELLCRANK LINK (PLATED)

$17.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 783-09299

BELLCRANK MOUNTING BRACKET (PLATED)

$34.99

$

Usually ships in 3-6 days
