XT2-GX 54 KH FAB (14D7A6CA010) - Cub Cadet 54" XT2 Enduro Garden Tractor, Fab Deck, Kohler (2020) Deck Parts Diagram

54" XT2 Enduro Garden Tractor, Fab Deck, Kohler

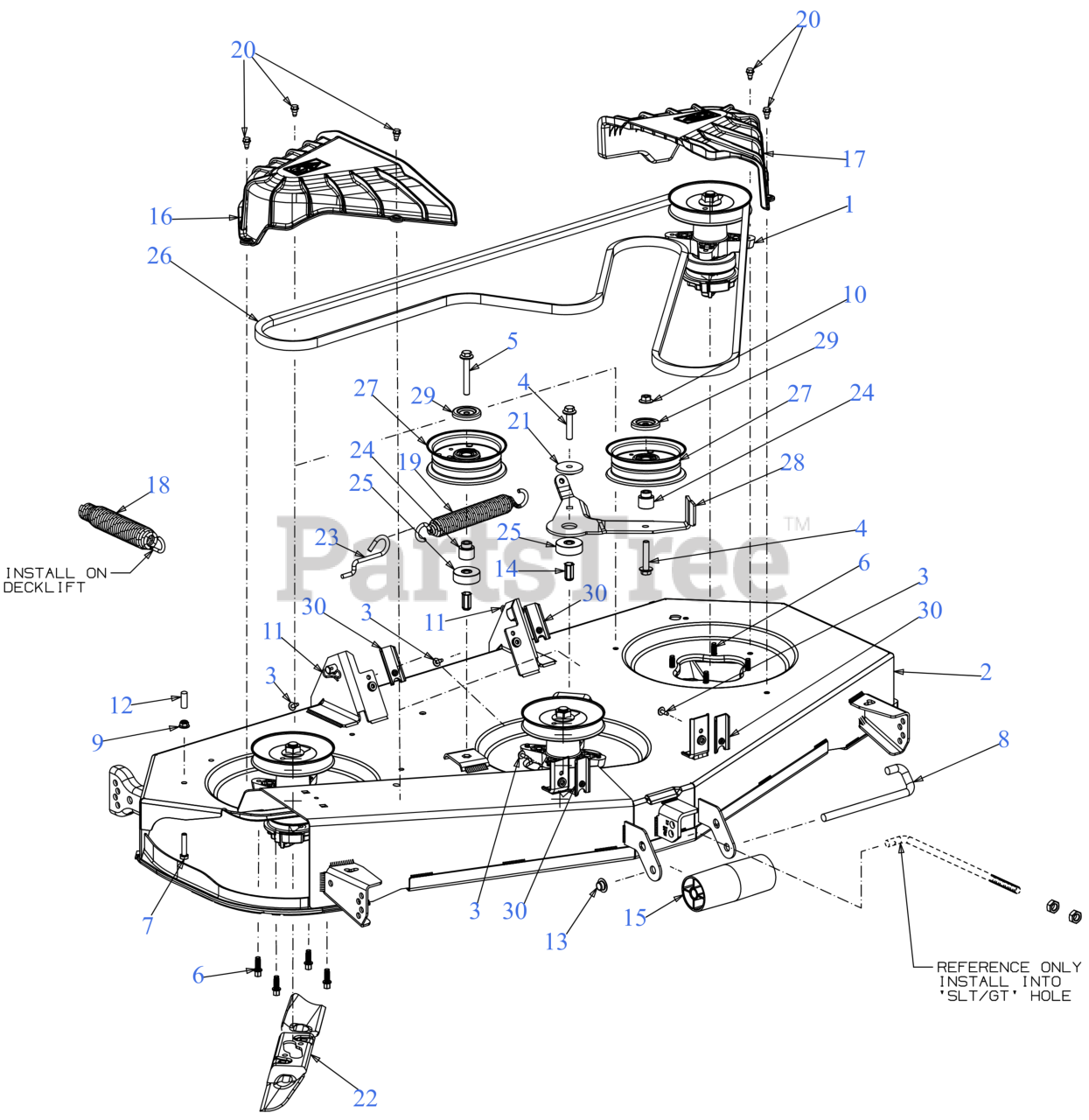

Deck Parts Diagram

  • Title

1

Cub Cadet 918-07389A

BLADE SPINDLE ASSEMBLY

Note: (See Separate Breakdown)

$186.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 983-05138C

54" FAB DECK SHELL

Note: *CHOOSE COLOR WHEN ORDERING*

$1478.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 9

0

4

Cub Cadet 710-06178

SCREW 3/8-16 x 2.0

$6.49

$

In Stock, only 4 left!

0

5

Cub Cadet 710-06214

SCREW 3/8-16 x 2.75 GR5

$7.49

$

In Stock, only 1 left!

0

6

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, Qty 6

0

7

Cub Cadet 710-0805A

SCREW 5/16-18 x 1.5 LG

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 711-06377

ROLLER PIN 1/2 x 7.31

$20.99

$

In Stock, only 1 left!

0

9

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 12

0

11

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 2 left!

0

12

Cub Cadet 720-05075

VINYL CAP

$4.49

$

In Stock, only 2 left!

0

13

Cub Cadet 726-0299

PUSH CAP

$8.49

$

In Stock, Qty 20+

0

14

Cub Cadet 728-05016

NUT RIVET 3/8-16

$5.99

$

In Stock, only 3 left!

0

15

Cub Cadet 731-05679B

ROLLER

$18.99

$

In Stock, Qty 20+

0

16

Cub Cadet 731-09968A

SPINDLE COVER (RH)
(Superseded to 731-09968B)

$28.99

$

In Stock, Qty 20+

0

17

Cub Cadet 731-09969C

SPINDLE COVER (LH)

$28.99

$

In Stock, Qty 20+

0

18

Cub Cadet 732-05242C

LIFT ASSIST SPRING (LARGE)

$22.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-05360A

SPRING 1.25" DIA x 8.5" LONG
(Superseded to 732-05360B)

$34.99

$

In Stock, Qty 20+

0

20

Cub Cadet 738-04502

SHOULDER SCREW 1/4-20 x .50

$4.49

$

In Stock, Qty 15

0

21

Cub Cadet 738-05082

SHOULDER SPACER

$8.49

$

In Stock, only 2 left!

0

22

Cub Cadet 942-01054-H

54" HIGH-LIFT FASTATTACH BLADE

$39.99

$

In Stock, only 1 left!

0

22

Cub Cadet 490-110-C197

Cub Cadet 50"/54" DETHATCHING BLADE SET

Note: Retail Package Part

$102.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 942-01054-X

54" FASTATTACH XTREME MULCH BLADE

$39.99

$

In Stock, only 2 left!

0

22

Cub Cadet 942-01054-L

54" LOW-LIFT SAND FASTATTACH BLADE

$39.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 747-05608

DECK SPRING HOOK
(Superseded to 747-05608A)

$3.49

$

In Stock, Qty 20+

0

24

Cub Cadet 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 9

0

25

Cub Cadet 750-06184

SPACER .385ID x 1.75OD x .585THK

$11.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 954-05025A

V-BELT B SEC x 139

$87.99

$

In Stock, Qty 15

0

26

Cub Cadet 490-501-C064

Cub Cadet 54" DECK DRIVE BELT

Note: Retail Packaged Part

$87.99

$

In Stock, only 3 left!

0

26

Cub Cadet 490-501-M064

Genuine Factory Parts 54" DECK BELT

Note: Retail Packaged Part

$

$

Not available

27

Cub Cadet 756-05034A

IDLER PULLEY 4.50" DIA

$45.99

$

In Stock, Qty 20+

0

28

Cub Cadet 783E08309B

IDLER PIVOT BRACKET

$42.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 783-08389

IDLER PULLEY CAP

$5.99

$

In Stock, Qty 20+

0

30

Cub Cadet 783-08404A

LIFT BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08404A-0606

BRACKET-LIFT STOP - MAJESTIC ORANGE (0606)

$5.49

$

Usually ships in 3-6 days

0

Cub Cadet 783-08404A-0637

BRACKET-LIFT STOP - POWDER BLACK (0637)

$5.49

$

Usually ships in 3-6 days

0

Cub Cadet 783-08404A-4028

BRACKET-LIFT STOP - SEARS YELLOW (4028)

$4.49

$

Usually ships in 3-6 days

0

$4.49

$

Usually ships in 3-6 days

0
