XT2-GX 54 KH FAB (14A7A3CA010) - Cub Cadet 54" XT2 Enduro Garden Tractor, Fab Deck, Kohler (2015) Kohler KT745-3001 Fuel System Parts Diagram

54" XT2 Enduro Garden Tractor, Fab Deck, Kohler

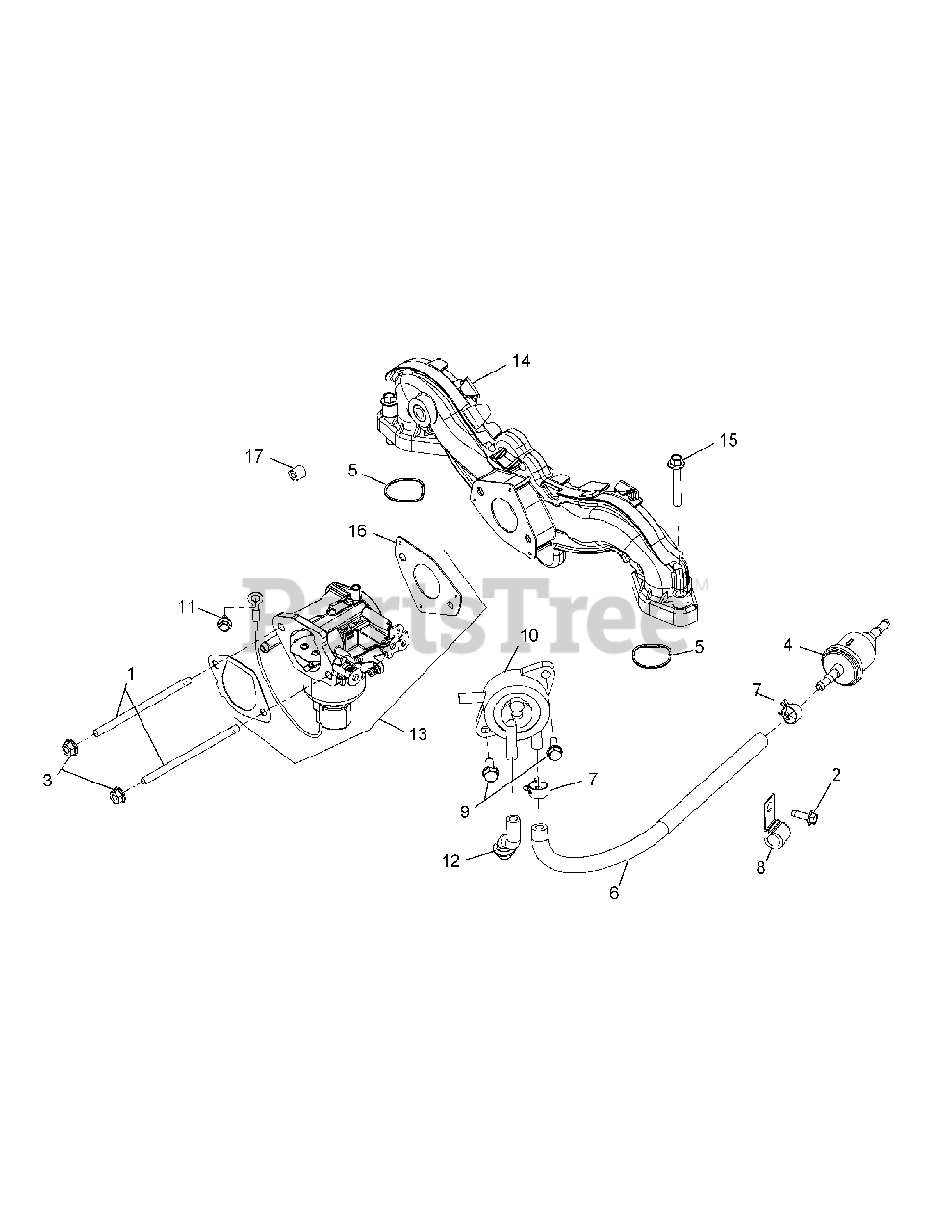

Kohler KT745-3001 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-072-25-S

Stud

$14.99

$

In Stock, only 2 left!

0

2

Cub Cadet KH-25-086-398-S

Thread Forming Screw

$3.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KH-M-641060-S

Flange Nut, M6 x 1.0

$4.49

$

In Stock, Qty 8

0

4

Cub Cadet KH-25-050-22-S1

Fuel Filter

$9.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KH-24-153-27-S

Intake Port O-Ring

$3.99

$

In Stock, Qty 8

0

6

Cub Cadet KH-25-111-81-S

Fuel Line, 24"

$17.99

$

In Stock, only 4 left!

0

7

Cub Cadet KH-25-237-37-S

Spring Hose Clamp

$2.49

$

In Stock, Qty 11

0

8

Cub Cadet KH-47-154-01-S

Cable Clip

$5.49

$

In Stock, only 4 left!

0

9

Cub Cadet KH-24-086-12

Tap Screw, M6 x 1.7 x 18

$

$

Not available

10

Cub Cadet KH-24-393-16

Fuel Pump

$

$

Not available

11

Cub Cadet KH-25-086-400-S

Thread Forming Screw

$2.49

$

In Stock, only 2 left!

0

12

Cub Cadet KH-32-326-08-S

Pulse Pump Hose

$3.99

$

In Stock, only 4 left!

0

13

Cub Cadet KH-16-853-01-S

Carburator Kit

$282.99

$

In Stock, only 2 left!

0

14

Cub Cadet KH-24-164-91-S

Intake Manifold Kit
(Superseded to KH-24-164-278-S)

$218.99

$

Usually ships in 3-6 days

0

15

Cub Cadet KH-M-651040-S

Flange Screw, M6 x 1.0 x 40

$2.49

$

In Stock, Qty 12

0

16

Cub Cadet KH-24-041-52-S

Carburetor Gasket
(Superseded to KH-24-041-91-S)

$5.49

$

Usually ships in 3-6 days

0

17

Cub Cadet KH-25-139-60-S

Pipe Plug, 1/8

$3.49

$

In Stock, only 2 left!

0
