XT2-GX 54 KH FAB (14A7A3CA010) - Cub Cadet 54" XT2 Enduro Garden Tractor, Fab Deck, Kohler (2015) Fender (GX) Parts Diagram

54" XT2 Enduro Garden Tractor, Fab Deck, Kohler

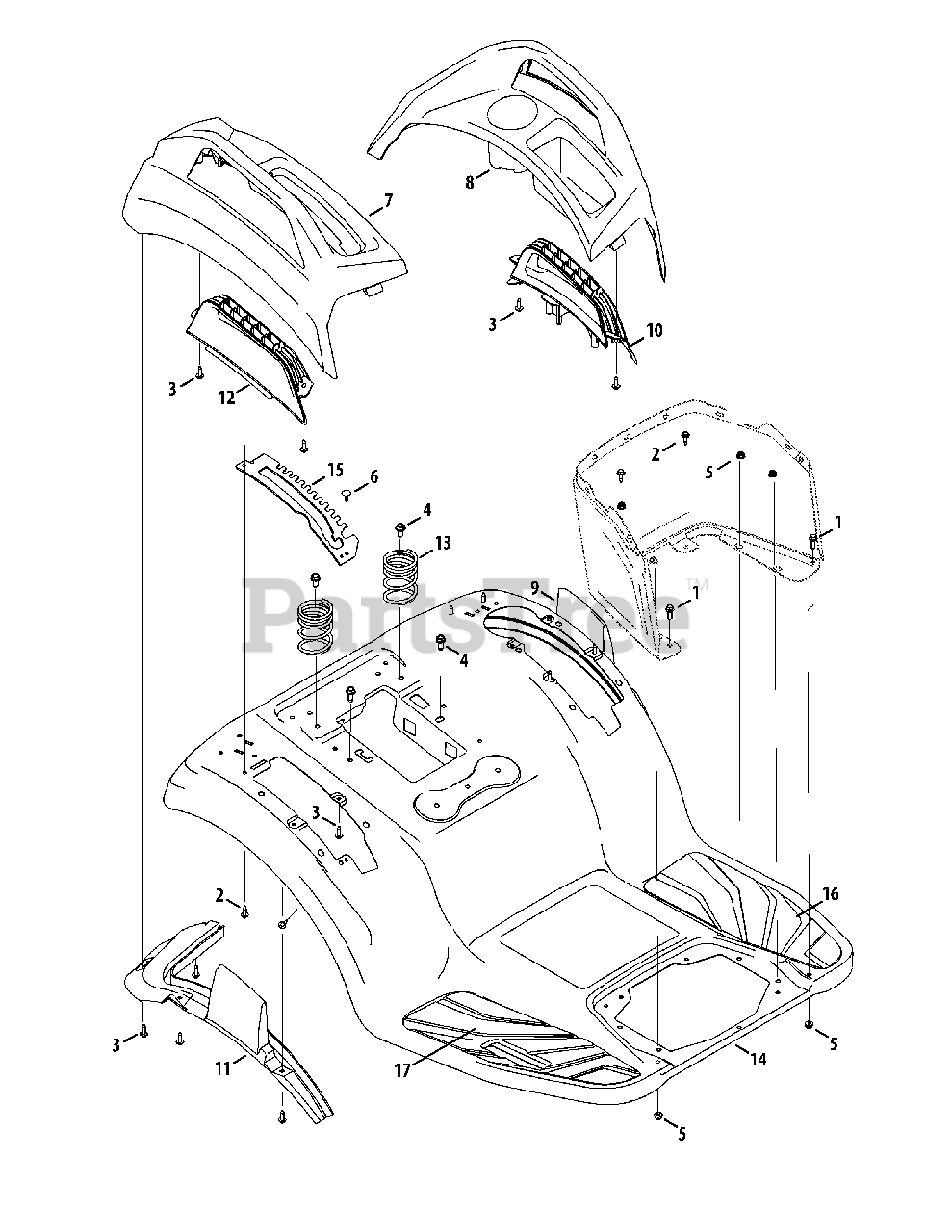

Fender (GX) Parts Diagram

  • Title

1

Cub Cadet 710-04666

Hex flange Screw, 1/4-20 x .75

$6.99

$

In Stock, only 3 left!

0

2

Cub Cadet 710-06133

Screw, M6-1 x .625

$3.99

$

In Stock, Qty 9

0

3

Cub Cadet 710-06147

Screw, 1/4-10 x .75

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 710-1260A

Screw, Self-tapping, 5/16-18, 0.750,

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 712-04064

Nut, Flange Lock, 1/4-20, Nylon

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 726-3046

Ratchet Clip, .250 DIA

$3.99

$

In Stock, Qty 16

0

7

Cub Cadet 731-09767

Upper Cover, RH
(Superseded to 631-05258A)

$58.99

$

In Stock, only 1 left!

0

8

Cub Cadet 731-09768

Upper Cover, LH

$55.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 731-10354

Lower Cover, LH

$23.99

$

In Stock, only 1 left!

0

10

Cub Cadet 731-10434

Cover Handle, LH

$18.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 731-10523

Lower Cover, RH

$23.99

$

In Stock, only 1 left!

0

12

Cub Cadet 731-10524

Cover Handle. RH

$18.99

$

In Stock, only 1 left!

0

13

Cub Cadet 732-05182

Compression Spring, 2.50 x 3.951 x .207
(Superseded to 732-05182A)

$11.99

$

In Stock, only 1 left!

0

14

Cub Cadet 783-08279-4021

Fender
(Superseded to 783-08279C-4021)

$420.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 783-08559

Lift Index Bracket

Variations

Cub Cadet 783-08559-0637

Lift Index Bracket - POWDER BLACK (0637)

$18.99

$

Usually ships in 3-6 days

0

$18.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 731-09731

Pad, Foot, LH
(Superseded to 731-09731A)

$16.99

$

Usually ships in 3-6 days

0

17

Cub Cadet 731-09812

Pad, Foot, RH
(Superseded to 731-09812A)

$17.99

$

In Stock, only 1 left!

0
