XT2-GX 54 FAB (14B7A6CA010) - Cub Cadet 54" XT2 Enduro Garden Tractor, Fab Deck (2018) Discharge Chute Parts Diagram

54" XT2 Enduro Garden Tractor, Fab Deck

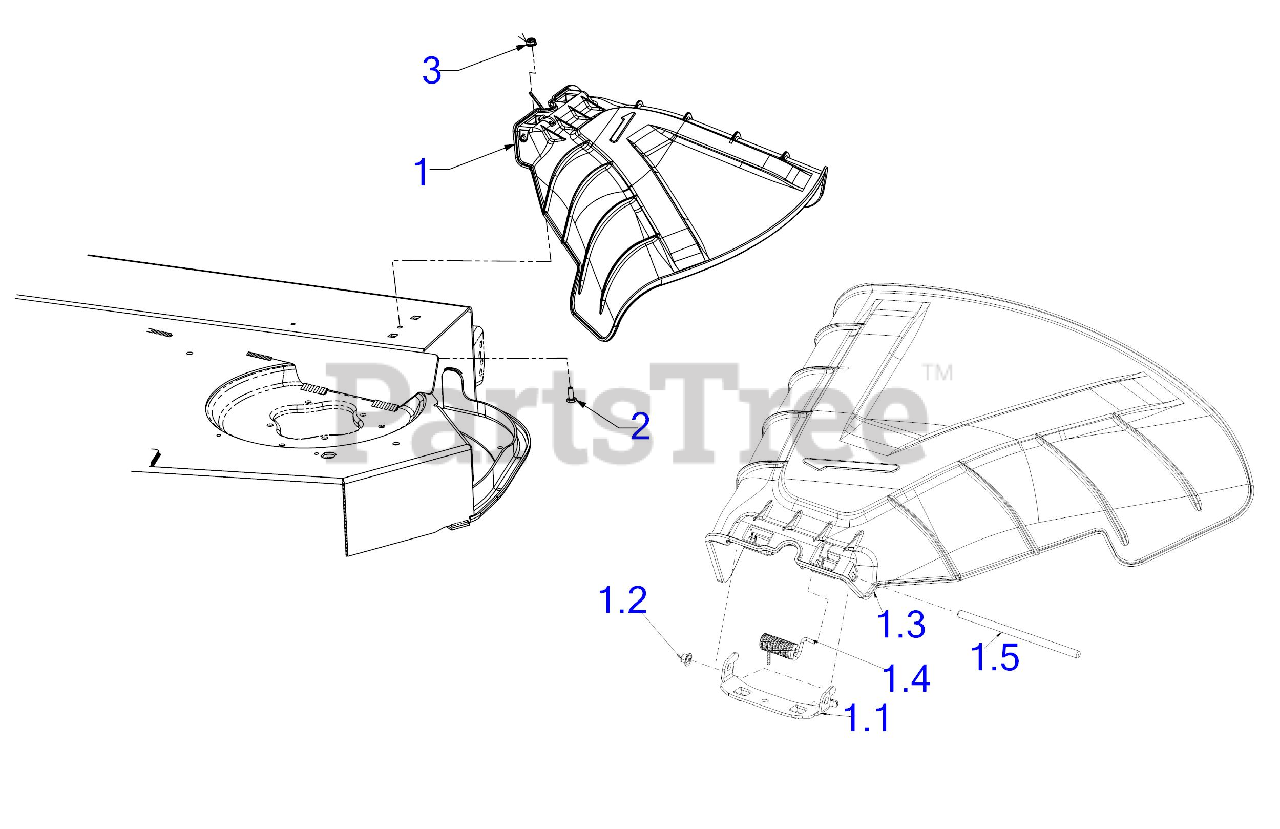

Discharge Chute Parts Diagram

  • Title
1

Cub Cadet 631-05168C

CHUTE ASSEMBLY

$52.99

$

In Stock, only 1 left!

0

1.1

Cub Cadet 783-08504A-0637

CHUTE MOUNTING BRACKET
(Superseded to 783-08504B)

$14.99

$

In Stock, Qty 7

0

1.2

$6.99

$

In Stock, only 1 left!

0

1.3

CHUTE (Order Assembly)

Note: (Order Assembly)

$

$

Not available

1.4

Cub Cadet 732-05261

TORSION SPRING

$5.99

$

In Stock, only 3 left!

0

1.5

Cub Cadet 747-06290B

CHUTE HINGE PIN

$4.49

$

In Stock, Qty 20+

0

2

Cub Cadet 710-0751

SCREW 1/4-20 x .620 GR5

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0
