XT173-0022 - Kohler Courage XT-7 Series Engine, Made for Husqvarna, 8.0 ft-lbs, 173cc Ignition/Electrical Parts Diagram

Courage XT-7 Series Engine, Made for Husqvarna, 8.0 ft-lbs, 173cc

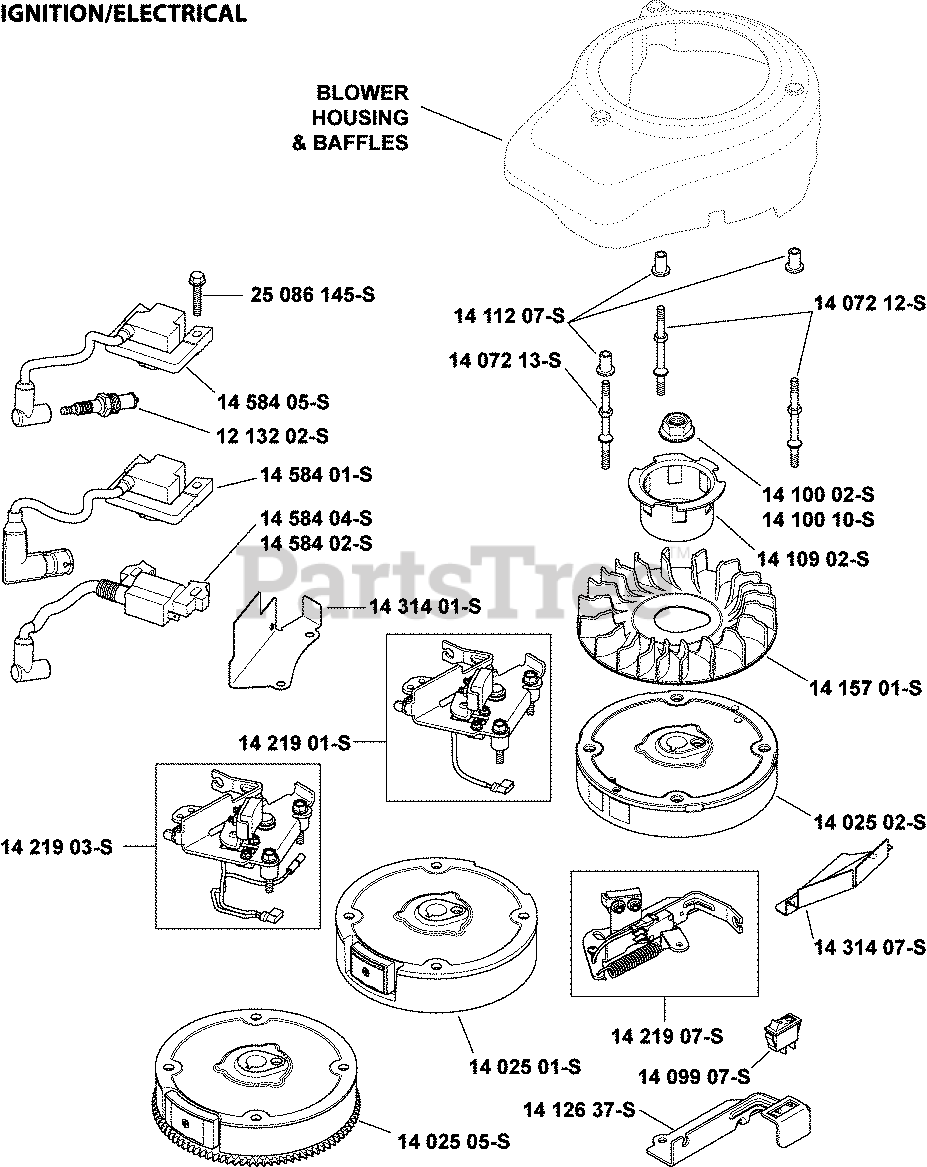

Ignition/Electrical Parts Diagram

  • Title

1410010-S

Kohler 14 100 10-S

NUT, FLYWHEEL (W/SERRATIONS)

$5.49

$

In Stock, only 1 left!

0

1410902-S

Kohler 14 109 02-S

CUP, DRIVE - (#1410905S)
(Superseded to 14 109 05-S)

$11.99

$

Usually ships in 2-5 days

0

1402502-S

Kohler 14 025 02-S

FLYWHEEL ASSEMBLY (ALUMINUM)

$120.99

$

Usually ships in 2-5 days

0

1458405-S

Kohler 14 584 05-S

MODULE, IGN (ALUM STD IGN)

$54.99

$

In Stock, only 2 left!

0

1213202-S

Kohler 12 132 02-S

PLUG, SPARK (STD)

$3.49

$

In Stock, Qty 20+

0

1421907-S

Kohler 14 219 07-S

BRAKE ASSEMBLY, CARB SIDE

Note: (includes Brake Lever, Brake Spring, Flange Nuts, Brake Pad, Ground to Kill Leads, Screws, Switch Insulators, Brake Switch Contact, Brake Spacer, Brake Bracket, Flange Screw, Brake Lever Screw, Nylon Flatwasher)

$29.99

$

In Stock, only 2 left!

0

1411207-S

Kohler 14 112 07-S

SPACER

$2.49

$

In Stock, only 3 left!

0

1407212-S

Kohler 14 072 12-S

STUD - (#1407226S)
(Superseded to 14 072 26-S)

$5.49

$

In Stock, Qty 7

0

1407213-S

Kohler 14 072 13-S

STUD - (#1407225S)
(Superseded to 14 072 25-S)

$5.49

$

In Stock, Qty 12

0

25086145-S

Kohler 25 086 145-S

SCREW, HEX FLANGE (M6) - USE 25 086 435-S
(Superseded to 25 086 435-S)

$2.49

$

In Stock, Qty 7

0

1415701-S

Kohler 14 157 01-S

FAN, FLYWHEEL USE 17 157 06-S
(Superseded to 17 157 06-S)

$10.99

$

In Stock, only 2 left!

0

1431401-S

Kohler 14 314 01-S

GUARD

$6.99

$

Usually ships in 2-5 days

0
