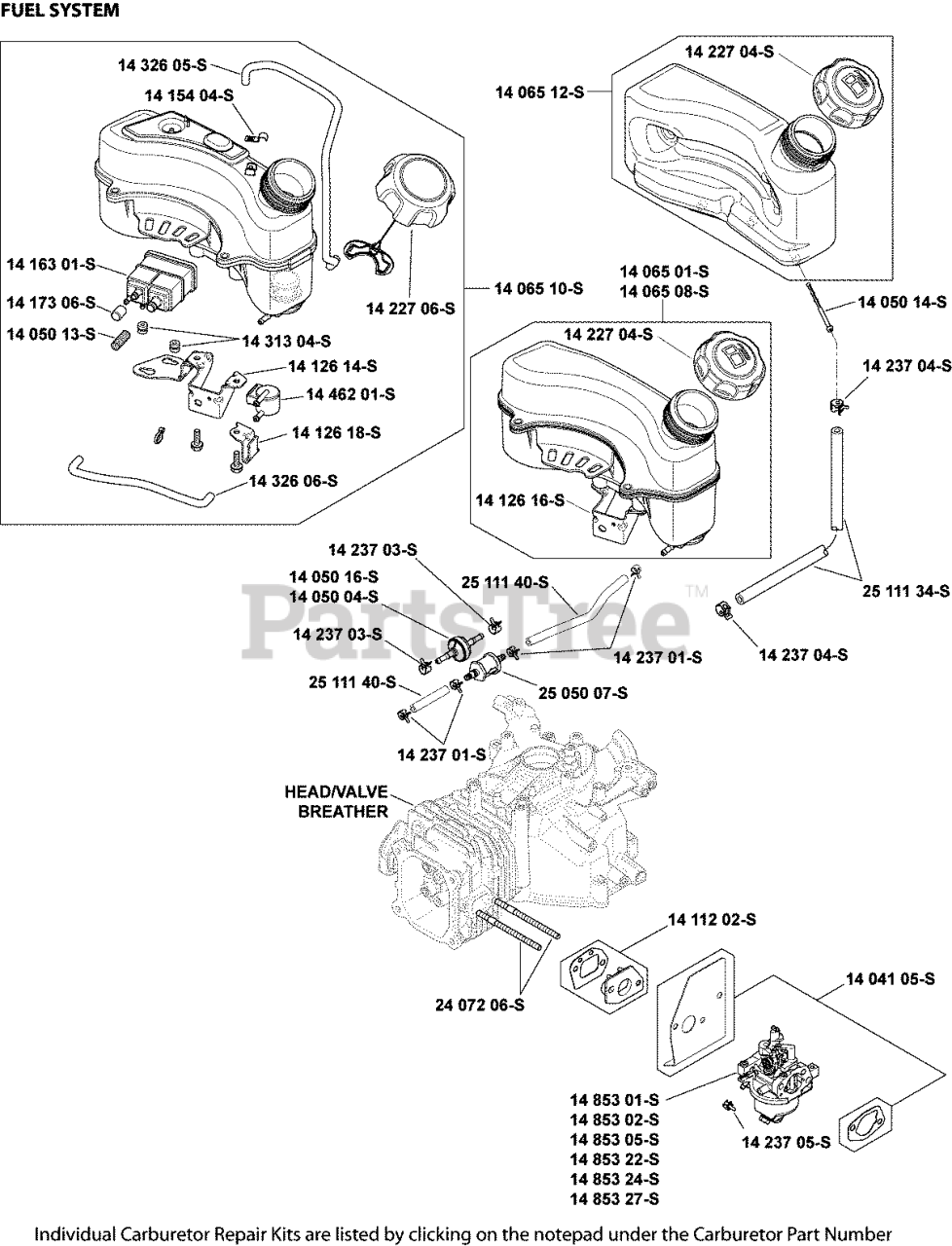

XT173-0004 - Kohler Courage XT-7 Series Engine, Made for Toro, 8.0 ft-lbs, 173cc Fuel System Parts Diagram
Courage XT-7 Series Engine, Made for Toro, 8.0 ft-lbs, 173cc
Fuel System Parts Diagram
$9.49
$
In Stock, Qty 6
Kohler 14 126 16-S
BRACKET, FUEL TANK (LOWER)
$8.49
$
Usually ships in 2-5 days
Kohler 14 065 08-S
KIT, FUEL TANK ASSY (XENOY)
$71.99
$
Usually ships in 2-5 days
Kohler 25 111 40-S
LINE, FUEL (10"-CUT TO LENGTH)
$7.49
$
In Stock, Qty 6
Kohler 14 237 01-S
CLAMP, FUEL LINE
$2.49
$
In Stock, only 4 left!
Kohler 25 050 07-S
FILTER, FUEL
$10.99
$
In Stock, only 3 left!
Kohler 14 041 05-S
GASKET, CARBURETOR - USE 14 041 24-S
(Superseded to 14 041 31-S)
Note: (includes Carburetor Heat Shield Gasket, Air Cleaner Base Gasket)
$13.99
$
In Stock, Qty 5
Kohler 14 853 05-S
KIT, CARB (PRIMER) W/GASKETS - DISCONTINUED
$
$
Not available
