XT1-LT 50 KH FAB (13AQA1CZ056) - Cub Cadet 50" XT1 Enduro Lawn Tractor, Fab Deck, Kohler (2019) Electrical Parts Diagram

50" XT1 Enduro Lawn Tractor, Fab Deck, Kohler

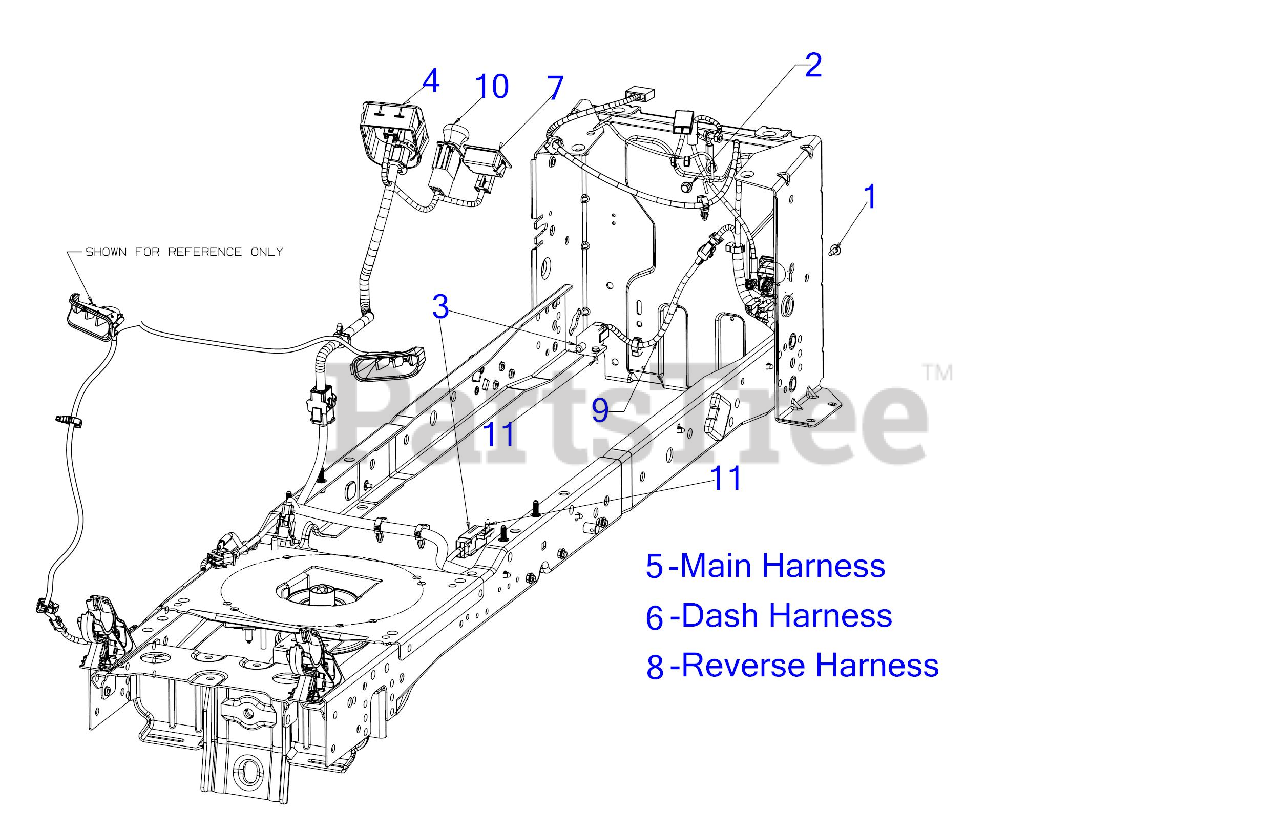

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 7

0

2

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 10

0

4

Cub Cadet 725-06102B

IGNITION SWITCH MODULE
(Superseded to 725-13425)

$96.99

$

In Stock, Qty 20+

0

5

Cub Cadet 925-06127B

MAIN HARNESS
(Superseded to 725P06127C)

$192.99

$

In Stock, only 1 left!

0

5

Cub Cadet 725-06153

SOLENOID
(Superseded to 725-06153A)

$42.99

$

In Stock, Qty 13

0

6

Cub Cadet 925-06129

DASH HARNESS

$71.99

$

In Stock, only 2 left!

0

7

Cub Cadet 925-06170A

HOUR/SVC METER
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

7

490-900-C075

Cub Cadet HOUR METER KIT

Note: Retail Packaged Part

$

$

Not available

7

Cub Cadet 490-900-Y075

Troy-Bilt HOUR METER KIT

Note: Retail Packaged Part

$53.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 925-06167

REVERSE HARNESS

$13.99

$

In Stock, only 1 left!

0

9

Cub Cadet 725-06173

CLUTCH HARNESS 11"

$30.99

$

In Stock, only 1 left!

0

10

Cub Cadet 925-3233A

PTO SWITCH (YELLOW KNOB)

$51.99

$

In Stock, Qty 6

0

11

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0
