XT1-LT 46 (13APA1CT056) - Cub Cadet 46" XT1 Enduro Lawn Tractor (2017) Electrical Parts Diagram

46" XT1 Enduro Lawn Tractor

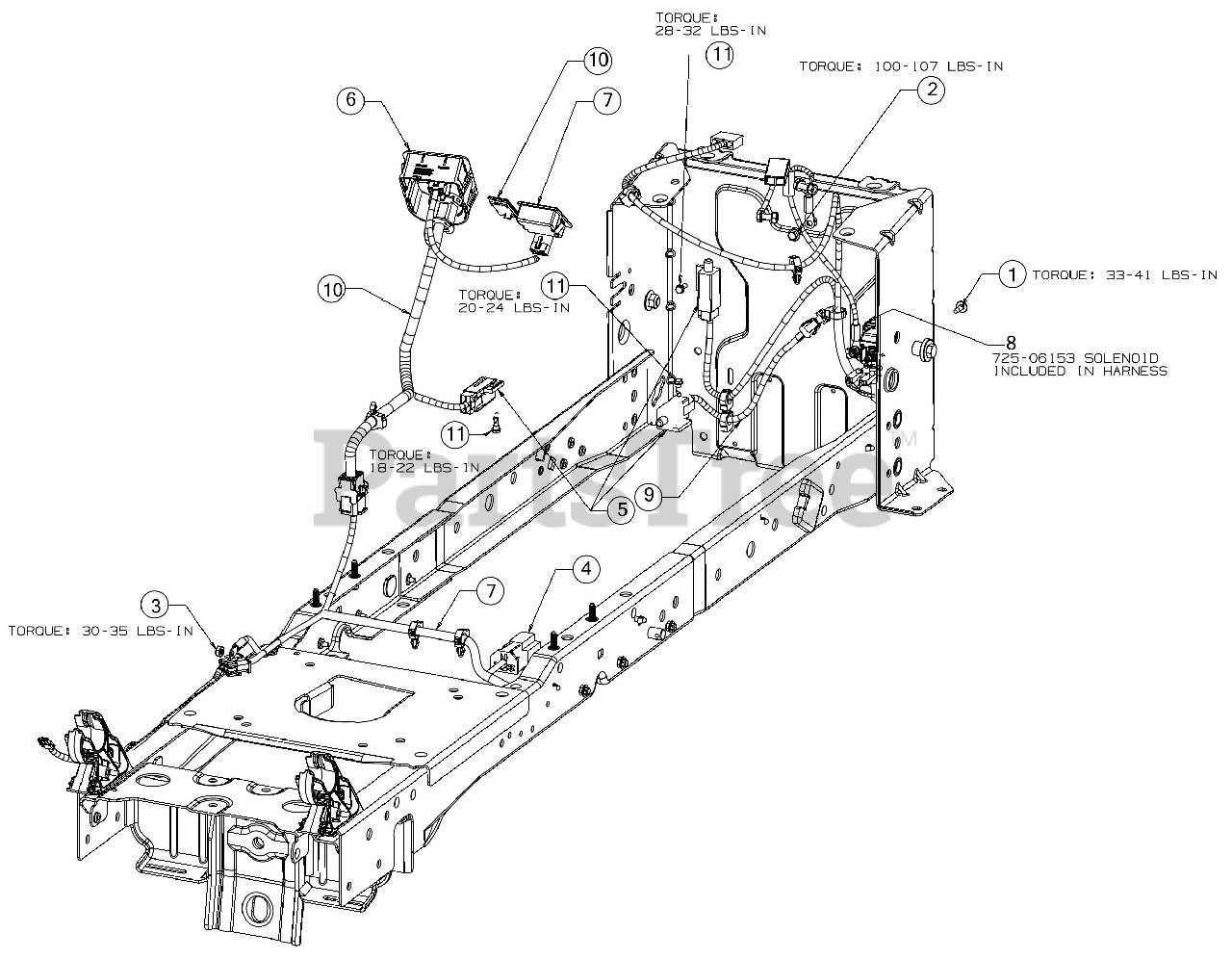

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-06133

SCREW M6-1 X .625

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-05106

HEX NUT 1/4-20

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-04232

3 POLE SWITCH ( NC-NO-NO)

$49.99

$

In Stock, only 1 left!

0

5

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 13

0

6

Cub Cadet 925-06119B

KEY SWITCH MODULE
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

7

Cub Cadet 925-06170A

SERVICE MINDER
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 925-06167

REVERSE HARNESS

$13.99

$

In Stock, only 1 left!

0

9

Cub Cadet 925-06261

HARNESS

$47.99

$

In Stock, only 1 left!

0

10

Cub Cadet 731-10634

DASH PLUG

$5.49

$

In Stock, only 1 left!

0

11

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0

12

Cub Cadet 925-06130B

MAIN HARNESS M-PTO/RMC/HRMTR
(Superseded to 925-06130E)

$194.99

$

Usually ships in 3-6 days

0
