XT1-LT 42 EFI (13A9A1CS056) - Cub Cadet 42" XT1 Enduro Lawn Tractor, Cub Cadet EFI (2017) Electrical Parts Diagram

42" XT1 Enduro Lawn Tractor, Cub Cadet EFI

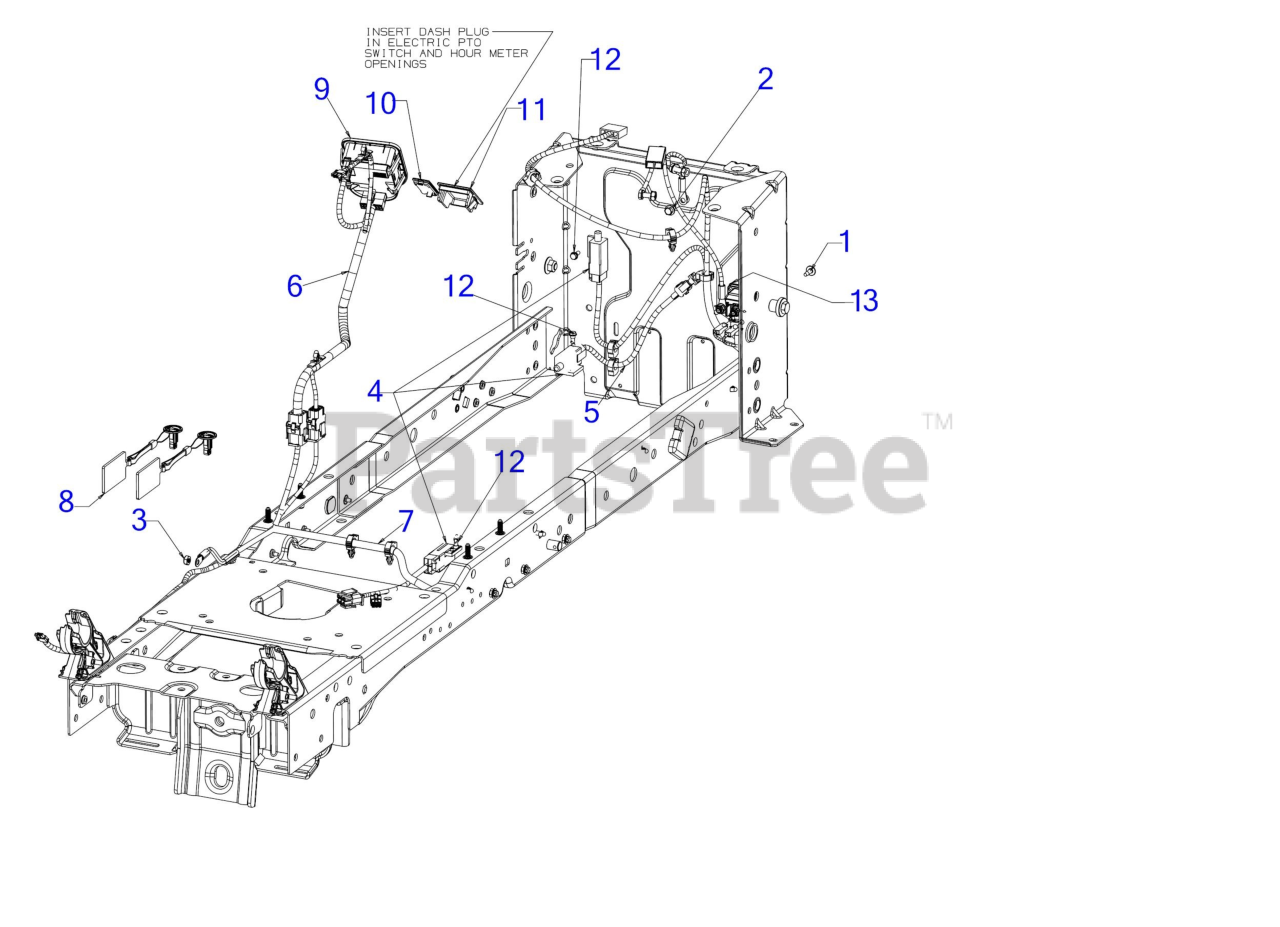

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 5

0

2

Cub Cadet 710-1652

SCREW 1/4-20X.625

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-05106

HEX NUT 1/4-20

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 7

0

5

Cub Cadet 925-06167

REVERSE HARNESS

$13.99

$

In Stock, only 1 left!

0

6

Cub Cadet 925-06764

DASH HARNESS M-PTO/PBS/EFI/RMC

$67.99

$

In Stock, only 1 left!

0

7

Cub Cadet 925-06765

MAIN HARNESS M-PTO/PBS/EFI
(Superseded to 725P06765A)

$196.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 725-06779

PBS KEY
(Superseded to 725-06779C)

$15.99

$

In Stock, only 1 left!

0

9

Cub Cadet 925-06872

MODULE-PBS/HRMTR/SVC MNDR/BT
(Superseded to 925-06872A)

$280.99

$

Usually ships in 3-6 days

0

10

Cub Cadet 731-10634

DASH PLUG

$5.49

$

In Stock, only 1 left!

0

11

Cub Cadet 731-11495

DASH HOUR METER PLUG
(Superseded to 731-11495A)

$5.49

$

In Stock, only 1 left!

0

12

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 7

0

13

Cub Cadet 725-06153

SOLENOID
(Superseded to 725-06153A)

Note: (Not Shown)

$42.99

$

In Stock, Qty 12

0
