XT1-LT 42 e (33ABA7ESB10) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2023) Pedals Parts Diagram

42" XT1 Enduro Lawn Tractor

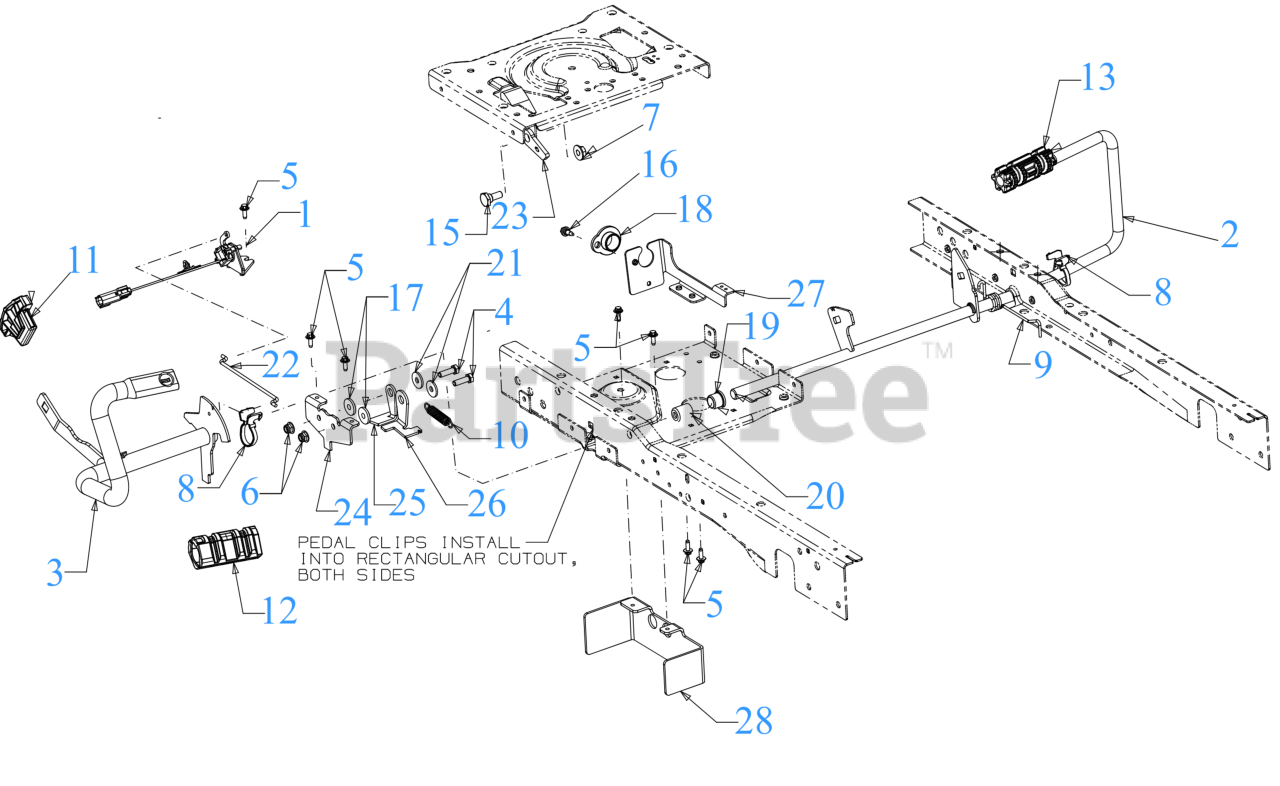

Pedals Parts Diagram

  • Title
1

Cub Cadet 625-07290

THROTTLE SENSOR ASSEMLBLY

$138.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 729-0359

HARNESS CLIP

$3.99

$

Usually ships in 3-6 days

0

1

Cub Cadet 924-04153

ROTARY SENSOR MAGNET

$10.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 647-05131

BRAKE PEDAL ASSEMBLY

Note: *CHOOSE COLOR WHEN ORDERING*

$62.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 649E05101

FWD/REV PEDAL ASSEMBLY

$72.99

$

Usually ships in 3-6 days

0

4

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 10

0

6

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

8

$4.49

$

In Stock, Qty 5

0

9

Cub Cadet 732-05155

TORSION SPRING .725

$5.49

$

In Stock, only 1 left!

0

10

Cub Cadet 732-05615

SPRING-EXT .51"DIA x 2.85"LG

$21.99

$

Usually ships in 3-6 days

0

11

Cub Cadet 735-05028

REVERSE PEDAL PAD

$6.49

$

In Stock, Qty 11

0

12

Cub Cadet 735-05030

FORWARD PEDAL PAD

$12.99

$

In Stock, only 1 left!

0

13

Cub Cadet 735-05051

BRAKE PEDAL PAD

$11.99

$

In Stock, only 1 left!

0

15

Cub Cadet 738-0380

SHOULDER SCREW

$7.99

$

In Stock, only 1 left!

0

16

Cub Cadet 738-04184A

SHOULDER SCREW

$6.99

$

In Stock, Qty 5

0

17

Cub Cadet 738-05474

SHOULDER SPACER (.315" x .50" x.14")

$3.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 741-0356A

FLANGE BEARING

$7.49

$

In Stock, only 2 left!

0

19

Cub Cadet 741-05074A

FLANGE BEARING .63X.84X.71
(Superseded to 741-05074B)

$2.99

$

In Stock, Qty 6

0

20

Cub Cadet 741-05085A

PLASTIC SLEEVE BEARING

$3.49

$

In Stock, Qty 6

0

21

Cub Cadet 741-05470

THRUST BEARING (.323" x .985" x .1")

$3.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 747-06948

SWITCH ROD

$5.99

$

Usually ships in 3-6 days

0

23

Cub Cadet 748-04203

CRUISE LATCH

$14.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 783-09061

NEUTRAL RETURN BRACKET

$16.99

$

Usually ships in 3-6 days

0

25

Cub Cadet 783-09596A

FORWARD RETURN BRACKET

$18.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 783-09739

REVERSE RETURN BRACKET

$10.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-09770

BRAKE SWITCH BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$36.99

$

Usually ships in 3-6 days

0

28

Cub Cadet 783-09781

RETURN COVER PLATE

Note: *CHOOSE COLOR WHEN ORDERING*

$

$

Not available
