XT1-LT 42 e (33ABA7ESB10) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2023) Deck Parts Diagram

42" XT1 Enduro Lawn Tractor

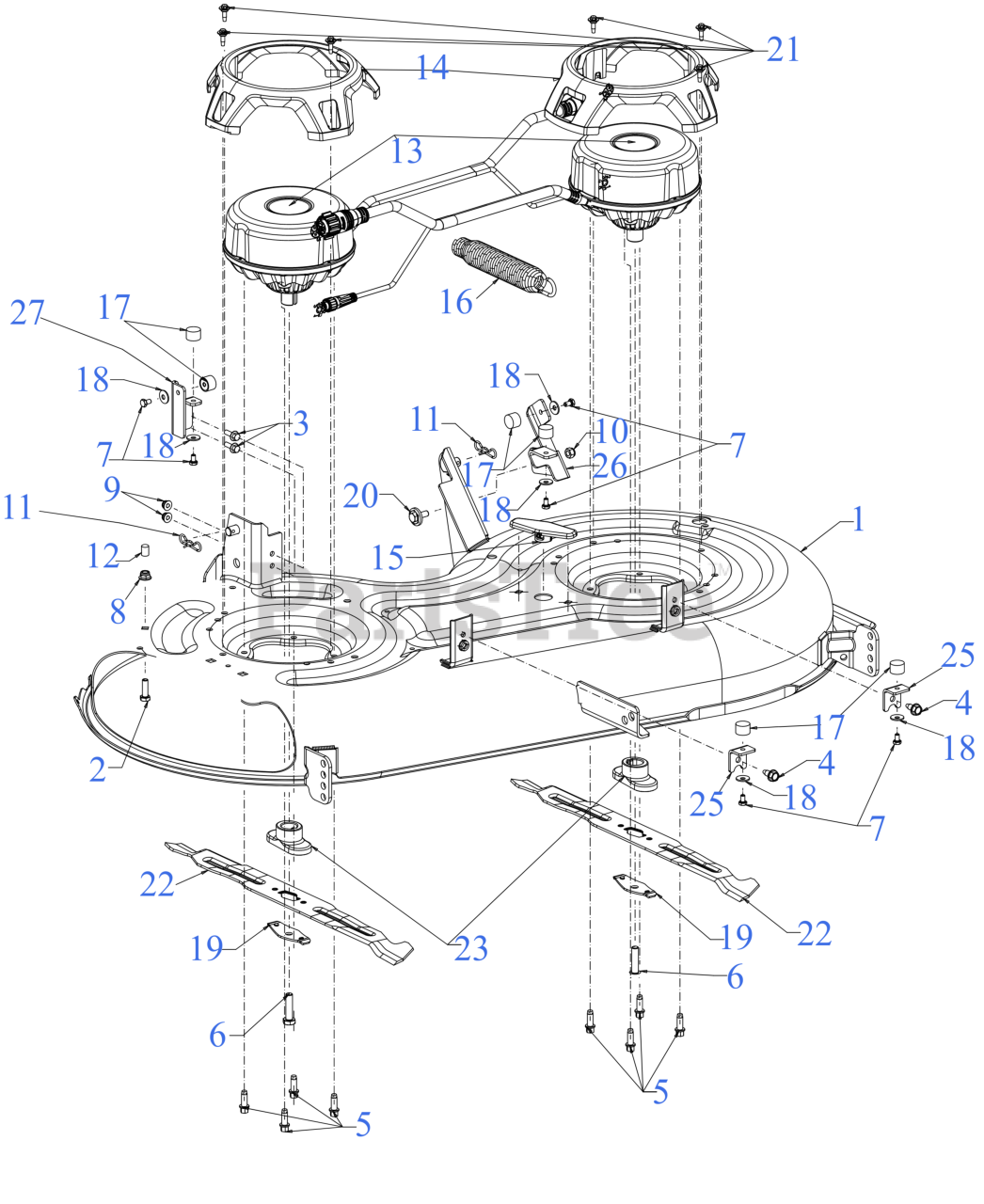

Deck Parts Diagram

  • Title
1

Cub Cadet 683-06214

42" DECK

Note: *CHOOSE COLOR WHEN ORDERING*

$350.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-0376

SCREW 5/16-18 x 1.0 GR5

$3.99

$

In Stock, Qty 5

0

3

Cub Cadet 710-04666

SCREW 1/4-20 x .75 GR5

$6.99

$

In Stock, only 3 left!

0

4

Cub Cadet 710-06256

SCREW M8-1.25 x .750

$3.49

$

In Stock, Qty 20+

0

5

Cub Cadet 710-06322

SCREW 5/16-18 x .875

$5.49

$

In Stock, only 1 left!

0

6

Cub Cadet 710-1044

SCREW 3/8-24 x 1.50 GR8

$3.99

$

In Stock, only 1 left!

0

7

Cub Cadet 710-3209

SCREW M6-1.0X10MM GR8.8

$8.49

$

In Stock, Qty 13

0

8

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 5

0

9

Cub Cadet 712-04064

FLANGE LOCK NUT

$3.99

$

In Stock, Qty 20+

0

10

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

Usually ships in 3-6 days

0

12

$4.49

$

In Stock, Qty 7

0

13

Cub Cadet 724P05189

48V ELECTRIC DECK MOTOR

$625.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-26212

MOTOR COVER

$33.99

$

Usually ships in 3-6 days

0

15

$10.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-05241A

LIFT ASSIST SPRING (SMALL)

$20.99

$

Usually ships in 3-6 days

0

$3.99

$

Usually ships in 3-6 days

0

18

Cub Cadet 736-0270

SPRING WASHER BELL

$3.99

$

In Stock, Qty 20+

0

19

Cub Cadet 736-0524B

BLADE BELL SUPPORT
(Superseded to 736-0524B-1)

$5.99

$

In Stock, only 1 left!

0

20

Cub Cadet 738-04439

SHOULDER SCREW

$3.99

$

In Stock, Qty 6

0

21

Cub Cadet 738-05090

SHOULDER SCREW M6-1 .368 X.115

$3.49

$

In Stock, Qty 20+

0

22

Cub Cadet 742P05720

21.18" MULCH BLADE (S SHAPE CENTER HOLE)

$34.99

$

Usually ships in 3-6 days

0

22

Cub Cadet 490-110-C207

Cub Cadet 42" BLADE SET

Note: Retail Package Part

$67.99

$

In Stock, Qty 12

0

23

Cub Cadet 748-06644

BLADE ADAPTER (#6 X 1.19 W/S)

$11.99

$

In Stock, only 2 left!

0

25

Cub Cadet 783-09774

UPSTOP BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$5.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 783-10048

UPSTOP BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

$18.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 783-10049

UPSTOP BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

$13.99

$

Usually ships in 3-6 days

0
