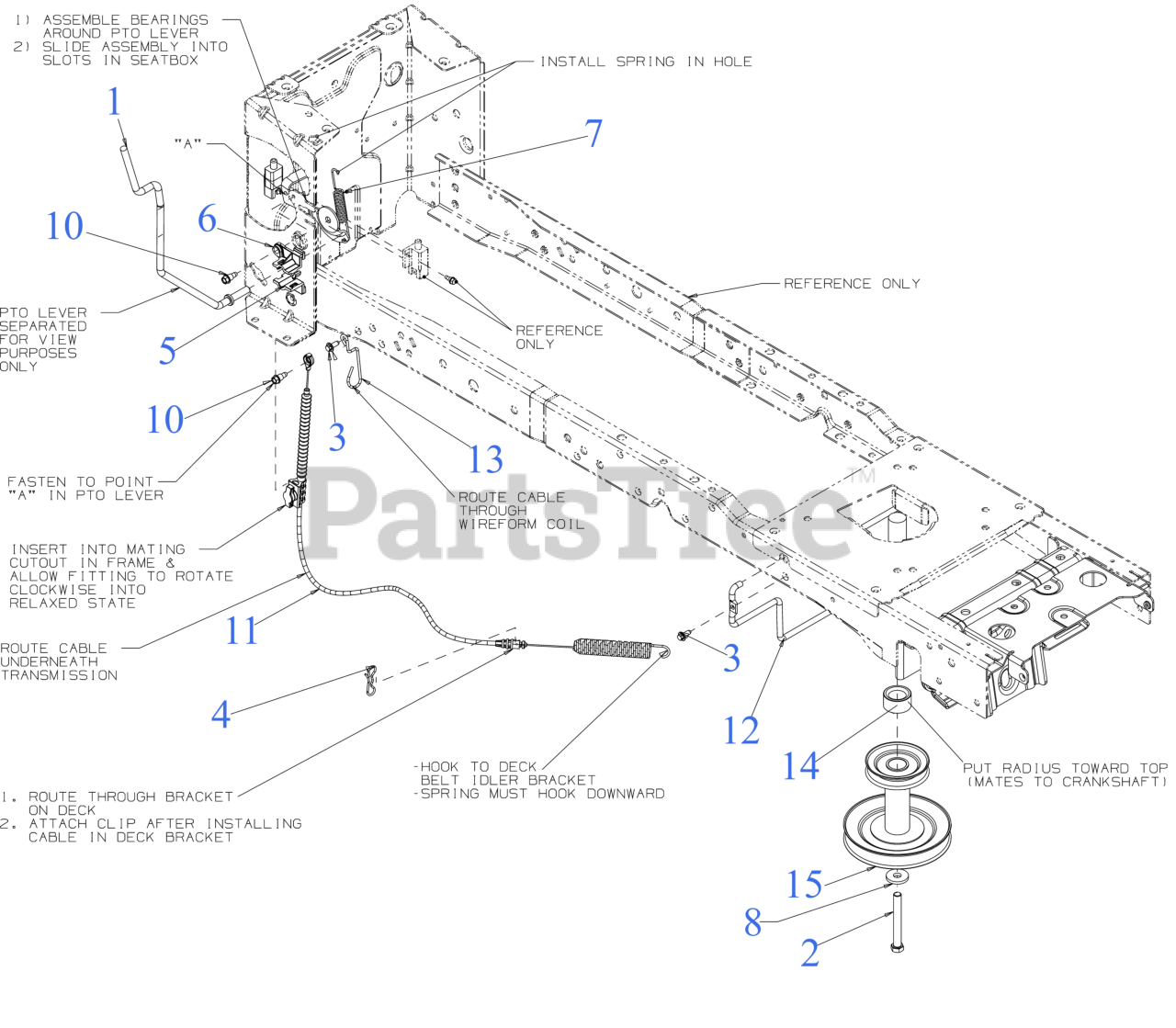

XT1-LT 42 B (13ALA9TSA10) - Cub Cadet 42" XT1 Enduro Lawn Tractor, Briggs & Stratton (2023) Manual PTO Parts Diagram

42" XT1 Enduro Lawn Tractor, Briggs & Stratton

Manual PTO Parts Diagram

  • Title

1

Cub Cadet 983-05105A

PTO HANDLE ASSEMBLY

$39.99

$

In Stock, only 3 left!

0

2

Cub Cadet 710-04379A

SCREW 7/16-20 x 3.5 GR5

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 5

0

4

Cub Cadet 714-05005

BOW TIE COTTER PIN

$4.99

$

In Stock, only 2 left!

0

5

Cub Cadet 731-10066A

PTO HANDLE BOTTOM BEARING

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet 731-10067C

PTO HANDLE TOP BEARING

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 732-05119

EXTENSION SPRING .56 OD x 4.52

$9.49

$

In Stock, only 1 left!

0

8

Cub Cadet 736-0322

FLAT WASHER .445 x 1.248 x .170

$9.49

$

In Stock, Qty 8

0

10

Cub Cadet 738-04425

SHOULDER SCREW

$4.49

$

In Stock, Qty 20+

0

11

Cub Cadet 946-05087D

PTO HANDLE CABLE

$37.99

$

In Stock, Qty 9

0

12

Cub Cadet 747-06239B

BELT KEEPER ROD

$25.99

$

In Stock, Qty 5

0

13

Cub Cadet 747-06308

CABLE GUIDE WIRE

$3.49

$

Usually ships in 3-6 days

0

14

Cub Cadet 748-05079

ENGINE PULLEY SPACER

$7.49

$

In Stock, only 1 left!

0

15

Cub Cadet 956-04067B

ENGINE PULLEY (3.56 x 6.12 DIA)

$81.99

$

In Stock, only 1 left!

0
