XT1-LT 42 (13AVA1CS056) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2015) Kohler SV541-3212 Fuel System Parts Diagram

42" XT1 Enduro Lawn Tractor

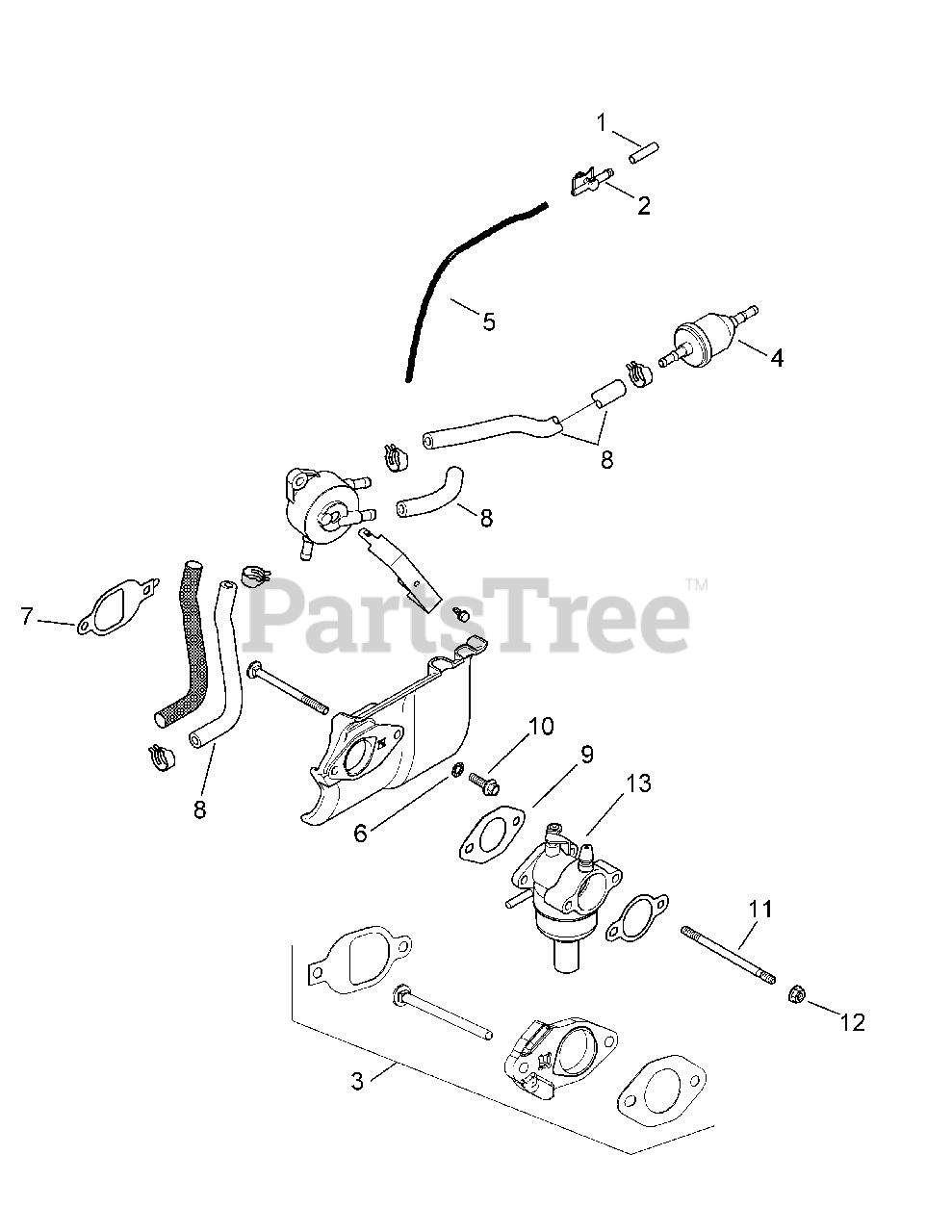

Kohler SV541-3212 Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-25-173-33-S

Masking Cap

$2.49

$

In Stock, only 1 left!

0

2

Cub Cadet KH-25-155-51-S

Evaporative Connector

$13.99

$

In Stock, only 3 left!

0

3

Cub Cadet KH-20-112-08-S

Carburetor Spacer Kit

$16.99

$

Usually ships in 2-5 days

0

4

Cub Cadet KH-25-050-21-S

Fuel Filter

$8.99

$

In Stock, Qty 20+

0

5

Cub Cadet KH-25-326-28-S

Evaporative Hose

$4.49

$

In Stock, Qty 6

0

6

Cub Cadet KH-X-22-11

Int. Tooth Lock Washer, 1/4

$

$

Not available

7

Cub Cadet KH-20-041-18-S

Heat Deflector Gasket

$6.99

$

In Stock, Qty 13

0

8

Cub Cadet KH-25-111-81-S

Fuel Line

$17.99

$

In Stock, Qty 6

0

9

Cub Cadet KH-12-041-01

Carburetor Gasket

$2.49

$

In Stock, Qty 14

0

10

Cub Cadet KH-M-651020-S

Flange Screw, M6 X 1.0 X 20

$2.49

$

In Stock, Qty 6

0

11

Cub Cadet KH-20-072-10-S

Stud

$4.99

$

In Stock, Qty 9

0

12

Cub Cadet KH-M-641060-S

Flange Nut, M6 X 1.0

$4.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-20-853-95-S

Carburetor Kit

$

$

Not available

Cub Cadet KH-25-454-05-S

Tie

Note: (Not Shown)

$2.49

$

In Stock, only 2 left!

0

Cub Cadet KH-25-237-37-S

Spring Hose Clamp

Note: (Not Shown)

$2.49

$

In Stock, Qty 11

0
