XT1-LT 42 (13A8A1CS056) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2015) Electrical Parts Diagram

42" XT1 Enduro Lawn Tractor

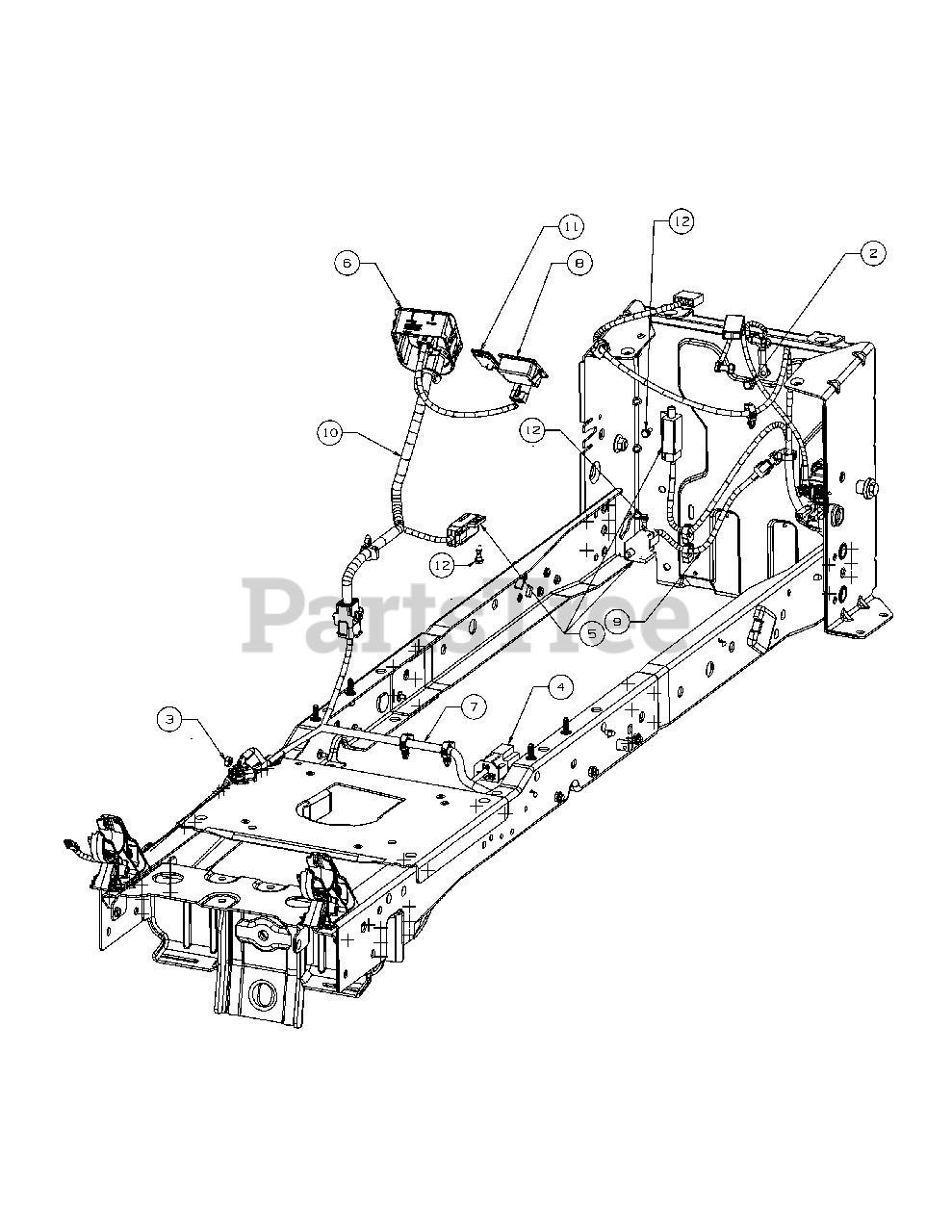

Electrical Parts Diagram

  • Title

1

Cub Cadet 710-06133

Screw-Hxacrnwsh M6-

$3.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 710-1652

Screw Hex.Wash.Hd

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 712-05106

Nut-Hex Jamlk 1/4-20

$3.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 725-04232

Switch-3 Pole Nc

$49.99

$

In Stock, only 1 left!

0

5

Cub Cadet 725-04363

Switch, Interlock

$15.99

$

In Stock, Qty 13

0

6

Cub Cadet 925-06119A

Key Switch (Man. PTO) RMC
(Superseded to 925-06119C)

$116.99

$

In Stock, Qty 20+

0

6

Cub Cadet 625-05000

Ignition Key
(Superseded to 925-1745A)

$17.99

$

In Stock, Qty 20+

0

7

Cub Cadet 925-06130

Harness Assembly, Main (Manual PTO)
(Superseded to 925-06130E)

$194.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 925-06170

Hour Meter/Service Minder
(Superseded to 925-06170B)

$70.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 925-06167

Harness-Reverse

$13.99

$

In Stock, only 1 left!

0

10

Cub Cadet 925-06261

Dash Harness (Man. PTO) RMC

$47.99

$

In Stock, only 1 left!

0

11

Cub Cadet 731-10634

Plug:Dash:Man PTO

$5.49

$

In Stock, only 1 left!

0

12

Cub Cadet 738-04237A

Screw:Shldr:T:#10-32:.500

$6.49

$

In Stock, Qty 7

0

RMC® (Reverse Mowing Control)

$

$

Not available
