XT1-LT 42 (13A8A1CS056) - Cub Cadet 42" XT1 Enduro Lawn Tractor (2015) Dash Parts Diagram

42" XT1 Enduro Lawn Tractor

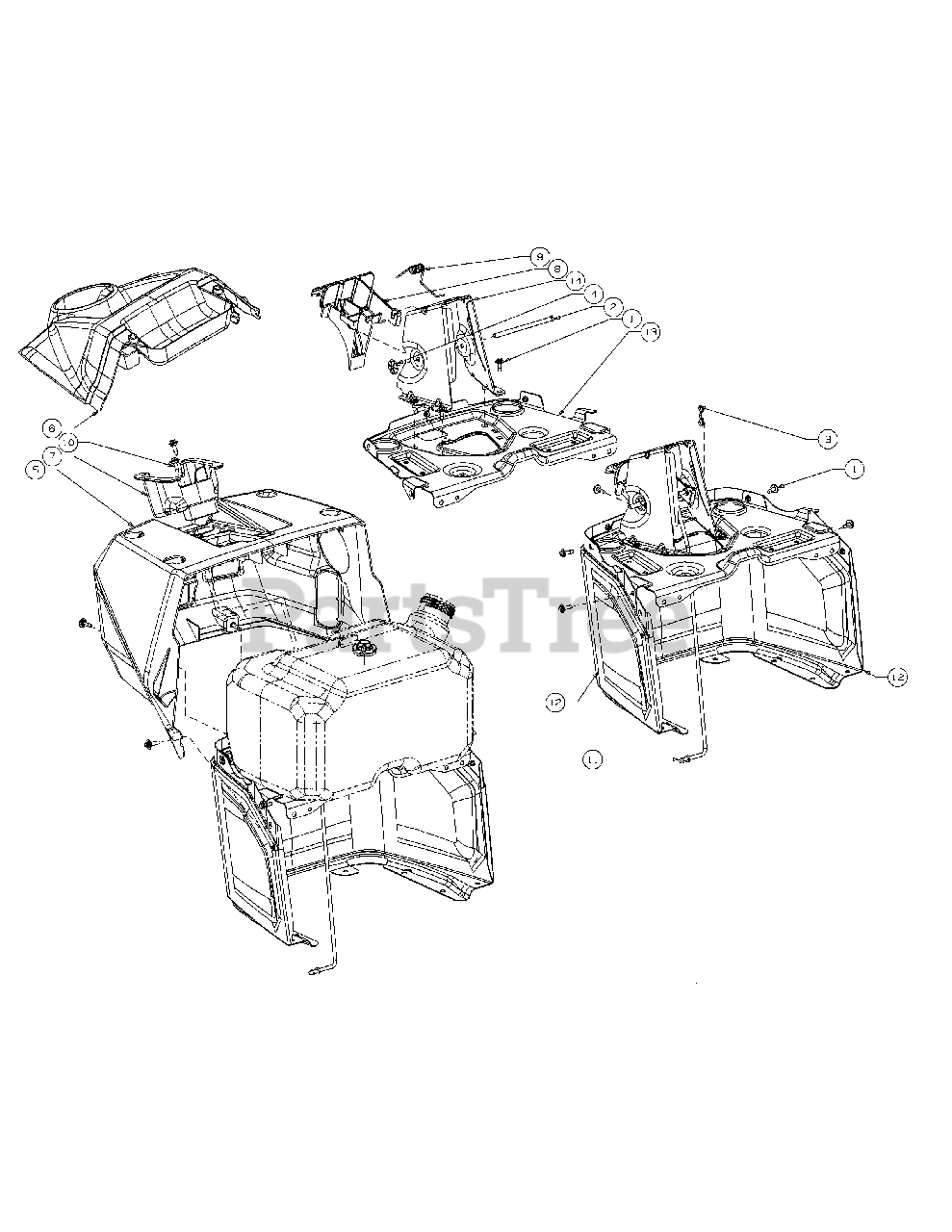

Dash Parts Diagram

  • Title

1

Cub Cadet 710-06133

Screw-Hxacrnwsh M6-

$3.99

$

In Stock, Qty 8

0

2

Cub Cadet 711-06378

Pin-Crus/Brake Lever

$3.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 714-04040

Pin-Cotter

$1.49

$

In Stock, Qty 20+

0

4

Cub Cadet 926-04012

Nut:Push-On:.25 Dia
(Superseded to 726-04012)

$

$

Not available

5

Cub Cadet 931-09815

Dash:Upr:C Sty
(Superseded to 931-09815B)

$63.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 931-09816

Dash:Cap:C Sty
(Superseded to 931-12495)

$31.99

$

Usually ships in 3-6 days

0

8

Cub Cadet 731-10636B

Lever-Cruise/Brake Dash
(Superseded to 731-10636C)

$12.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 732-05199

Spring-Torsn Crus/Brake Lvr

$3.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 738-05090

Scr-Shldr M6-1 .3

$3.49

$

In Stock, Qty 20+

0

11

Cub Cadet 747-06192

Rod-Cruise/Brake
(Superseded to 747-06192A)

$16.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 783-08391A-0637

Dash-Lower
(Superseded to 783-08391B-0637)

$48.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 783-08453-0637

Plate-Dash/Fuel Tnk
(Superseded to 783-09546B-0637)

$24.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 783-08538-0637

Brkt-Strg Brg Mtg Dash
(Superseded to 783-08538A-0637)

$31.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 731-10618

Bearing-Steering Shaft

$14.99

$

Usually ships in 3-6 days

0

Cub Cadet 731-11629

Plenum

Note: (Not Shown)

$28.99

$

Usually ships in 3-6 days

0
