42" XT1 Enduro Lawn Tractor

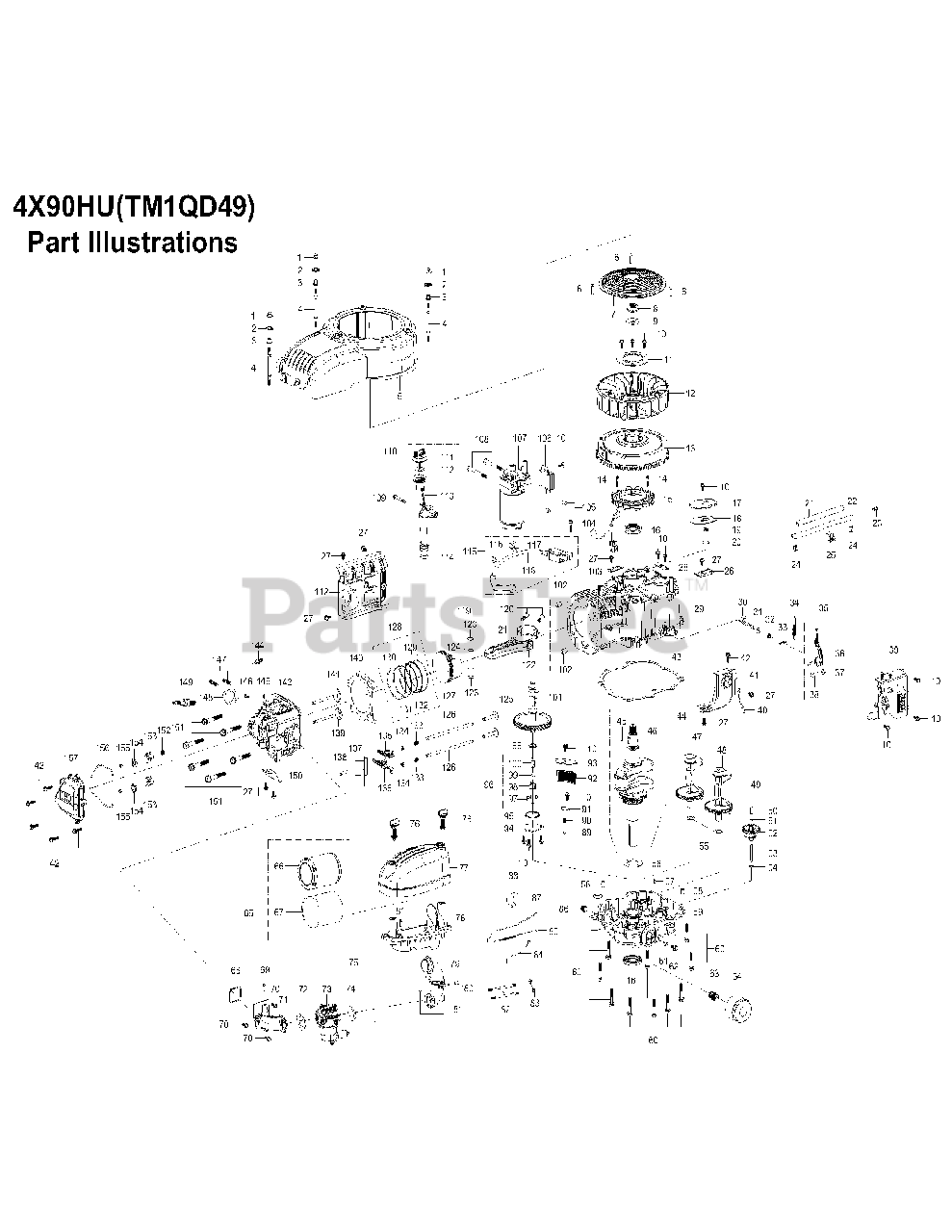

4X90HU Engine Parts Diagram

  • Title

1

Cub Cadet 712-04276

Nut
(Superseded to 712-04276A)

$6.49

$

In Stock, Qty 12

0

2

Cub Cadet 736-05109

Washer

$6.49

$

Usually ships in 3-6 days

0

3

Cub Cadet 750-05320

Engine Shroud Spacer

$4.49

$

In Stock, only 3 left!

0

4

Cub Cadet 710-06310

Starter / Shroud Stud M6×113
(Superseded to 910-06310)

$7.49

$

In Stock, only 1 left!

0

5

Cub Cadet 931-10876

Shroud/Air Shield

$59.99

$

Usually ships in 3-6 days

0

6

Cub Cadet 710-05303

Screw 5.5×25

$3.99

$

In Stock, only 2 left!

0

7

Cub Cadet 951-12205

Debris Shield

$9.99

$

In Stock, Qty 7

0

8

Cub Cadet 912-05102

Nut M20×1.5

$8.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 936-05110

Washer 20.5×5×40

$6.49

$

Usually ships in 3-6 days

0

10

Cub Cadet 710-04916

Bolt M6×14

$4.49

$

Usually ships in 3-6 days

0

11

Cub Cadet 951-14889

Vane Plate

$10.99

$

Usually ships in 3-6 days

0

12

Cub Cadet 931-10866

Cooling Fan

$49.99

$

Usually ships in 3-6 days

0

13

Cub Cadet 951-14890

Flywheel

$247.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 710-06285

Bolt M5×25

$6.49

$

Usually ships in 3-6 days

0

15

Cub Cadet 925-06298

Charging Coil

$94.99

$

Usually ships in 3-6 days

0

16

Cub Cadet 937-05067

Oil Seal 38×58×8

$15.99

$

In Stock, only 3 left!

0

17

Cub Cadet 907-06254

Breather Cover

$8.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 921-04738

Gasket, Breather Cover

$5.99

$

Usually ships in 3-6 days

0

19

Cub Cadet 732-04718

Breather Valve Spring

$4.49

$

In Stock, only 1 left!

0

20

Cub Cadet 951-11614

Second Air Vavle

$4.49

$

In Stock, only 1 left!

0

21

Cub Cadet 935-05083

Tubing Protective Sieeve

$5.49

$

Usually ships in 3-6 days

0

22

Cub Cadet 993-00171

Fuel Hose 6.3×12.5×250

$9.49

$

Usually ships in 3-6 days

0

23

Cub Cadet 951-14091

Plug

$4.99

$

Usually ships in 3-6 days

0

24

Cub Cadet 951-11700

Clamp, Fuel Hose
(Superseded to 951-11700A)

$4.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 723-04071

Wire Clamp
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

25

Cub Cadet 651-05269

Block Asm:Short:X90

$

$

Currently unavailable

26

Cub Cadet 951-14922

Wire Plate II

$4.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 710-04915

Bolt M6×12

$4.49

$

In Stock, only 3 left!

0

28

Cub Cadet 907-06255

Hook

$4.99

$

Usually ships in 3-6 days

0

29

Cub Cadet 951-14891

Crankcase
(Superseded to 951-14891A)

$326.99

$

Usually ships in 3-6 days

0

30

Cub Cadet 911-06416

Governor Gear Shaft

$4.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 936-05114

Washer 8×0.8×16

$5.49

$

Usually ships in 3-6 days

0

32

Cub Cadet 951-12388

Oil Seal 8×14×4

$4.49

$

Usually ships in 3-6 days

0

33

Cub Cadet 714-04077

Cotter Pin

$6.49

$

In Stock, only 1 left!

0

34

Cub Cadet 932-05291

Governor Spring

$6.99

$

Usually ships in 3-6 days

0

35

Cub Cadet 951-14919

Governor Lever
(Superseded to 951-14919A)

$5.99

$

Usually ships in 3-6 days

0

36

Cub Cadet 951-14920

Governor Arm
(Superseded to 951-14920A)

$5.99

$

Usually ships in 3-6 days

0

37

Cub Cadet 712-05015

Governor Arm Nut M6

$6.99

$

In Stock, Qty 6

0

38

Cub Cadet 710-04908

Governor Arm Bolt

$6.49

$

Usually ships in 3-6 days

0

39

Cub Cadet 951-05249

Governor Gear Bracket Assy

$

$

Not available

40

Cub Cadet 925-06302

Ground Connection

$5.49

$

Usually ships in 3-6 days

0

41

Cub Cadet 707-06280

Shroud/Right
(Superseded to 907-06280)

$11.99

$

Usually ships in 3-6 days

0

42

Cub Cadet 710-04919

Bolt M6×25

$4.49

$

Usually ships in 3-6 days

0

43

Cub Cadet 921-04741

Gasket, Crankcase Cover

$16.99

$

In Stock, only 1 left!

0

44

Cub Cadet 951-05245

Crankshaft Assembly

$288.99

$

Usually ships in 3-6 days

0

45

Cub Cadet 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

Usually ships in 3-6 days

0

46

Cub Cadet 951-14892

Crankshaft

$257.99

$

Usually ships in 3-6 days

0

47

Cub Cadet 917-05292

Balance Shaft/L
(Superseded to 917-05292A)

$80.99

$

Usually ships in 3-6 days

0

48

Cub Cadet 917-05293

Balance Shaft/R
(Superseded to 917-05293A)

$80.99

$

Usually ships in 3-6 days

0

49

Cub Cadet 951-05246

Governor Gear Assembly

$34.99

$

Usually ships in 3-6 days

0

50

Cub Cadet 931-09778

Governor Slide Cap

$4.99

$

Usually ships in 3-6 days

0

51

Cub Cadet 916-05005

Governor Shaft Stop Ring

$4.49

$

Usually ships in 3-6 days

0

52

Cub Cadet 951-14893

Governor Gear

$17.99

$

Usually ships in 3-6 days

0

53

Cub Cadet 911-06193

Governor Shaft

$4.49

$

Usually ships in 3-6 days

0

54

Cub Cadet 936-05053

Governor Gear Washer

$5.49

$

Usually ships in 3-6 days

0

55

Cub Cadet 936-05112

Washer 17.2×26×1

$5.49

$

In Stock, only 2 left!

0

56

Cub Cadet 936-05111

Washer 38.3×54×1

$5.49

$

Usually ships in 3-6 days

0

57

Cub Cadet 715-04092

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

58

Cub Cadet 715-04096

Dowel Pin 9×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

59

Cub Cadet 951-14894

Crankcase Cover
(Superseded to 951-15515)

$212.99

$

Usually ships in 3-6 days

0

60

Cub Cadet 710-06289

Bolt M8×45

$4.49

$

Usually ships in 3-6 days

0

61

Cub Cadet 736-04560

Washer 8.3×1.5×17

$4.49

$

Usually ships in 3-6 days

0

62

Cub Cadet 710-05313

Bolt M8×15

$3.99

$

Usually ships in 3-6 days

0

63

Cub Cadet 951-12253

Filter Connector Pipe

$7.99

$

Usually ships in 3-6 days

0

64

Cub Cadet 951-12690

Oil Filter

$17.99

$

In Stock, Qty 20+

0

65

Cub Cadet 937-05066

Air Filter Element

$22.99

$

In Stock, Qty 17

0

66

Cub Cadet N/A

Paper Filter

$

$

Currently unavailable

67

Cub Cadet N/A

Sponge Filter

$

$

Currently unavailable

68

Cub Cadet 951-14915

Intake Pipe Ring

$4.99

$

In Stock, only 1 left!

0

69

Cub Cadet 710-06179

Screw 4.2×20

$5.99

$

Usually ships in 3-6 days

0

70

Cub Cadet 710-06292

Bolt M6×22

$5.49

$

Usually ships in 3-6 days

0

71

Cub Cadet 931-10879

Intake Pipe

$24.99

$

In Stock, only 1 left!

0

72

Cub Cadet 751-14947

Carburetor Gasket
(Superseded to 951-14947)

$8.49

$

In Stock, only 1 left!

0

73

Cub Cadet 993-00170

Carburetor
(Superseded to 993-00170A)

$101.99

$

In Stock, only 1 left!

0

74

Cub Cadet 921-04745

Air Filter Gasket

$6.99

$

In Stock, only 1 left!

0

75

Cub Cadet 931-05257

Air Filter

$55.99

$

Usually ships in 3-6 days

0

76

Cub Cadet 910-06308

Air Filter Cover Screw

$8.99

$

Usually ships in 3-6 days

0

77

Cub Cadet 931-10869

Air Filter Cover

$

$

Not available

78

Cub Cadet 931-10880

Silencer Plate

$20.99

$

Usually ships in 3-6 days

0

79

Cub Cadet 931-05262

Manifold

$20.99

$

Usually ships in 3-6 days

0

80

Cub Cadet 951-12328

Rubber Cap

$3.99

$

In Stock, only 2 left!

0

81

Cub Cadet 710-06293

Screw 4.2×12

$6.49

$

Usually ships in 3-6 days

0

82

Cub Cadet 710-06319

Stud M6×92

$6.49

$

Usually ships in 3-6 days

0

83

Cub Cadet 712-05015

Governor Arm Nut M6

$6.99

$

In Stock, Qty 6

0

84

Cub Cadet 951-14918

Choke Lever
(Superseded to 951-14918A)

$6.99

$

Usually ships in 3-6 days

0

85

Cub Cadet 951-12231

Idle Spring

$4.49

$

Usually ships in 3-6 days

0

86

Cub Cadet 951-11644

Drain Bolt

$10.99

$

In Stock, Qty 5

0

87

Cub Cadet 951-14917

Throttle Linkage

$7.49

$

Usually ships in 3-6 days

0

88

Cub Cadet 951-14916

Venting House

$4.99

$

Usually ships in 3-6 days

0

89

Cub Cadet 941-05137

Steel Ball 8.731

$4.99

$

Usually ships in 3-6 days

0

90

Cub Cadet 932-05290

Pressure Release Valve Spring

$5.49

$

Usually ships in 3-6 days

0

91

Cub Cadet 951-14895

Pressure Release Valve Cover

$5.49

$

Usually ships in 3-6 days

0

92

Cub Cadet 937-05069

Filter Screen

$4.99

$

Usually ships in 3-6 days

0

93

Cub Cadet 931-10867

Filter Cover

$4.99

$

Usually ships in 3-6 days

0

94

Cub Cadet 951-14896

Oil Separater

$5.49

$

Usually ships in 3-6 days

0

95

Cub Cadet 921-04742

Gasket, Cylinder Head Cover

$6.99

$

Usually ships in 3-6 days

0

96

Cub Cadet 951-05247

Oil Pump Assembly

$58.99

$

Usually ships in 3-6 days

0

97

Cub Cadet 951-14924

Oil Pump Outer Shaft Rotator

$7.99

$

Usually ships in 3-6 days

0

98

Cub Cadet 951-14923

Oil Pump Inner Shaft Rotator

$7.99

$

Usually ships in 3-6 days

0

99

Cub Cadet 951-14897

Oil Pump Pin

$4.49

$

Usually ships in 3-6 days

0

100

Cub Cadet 911-06419

Oil Pump Shaft

$5.99

$

Usually ships in 3-6 days

0

101

Cub Cadet 911-06413

Camshaft
(Superseded to 753-08688)

$85.99

$

Usually ships in 3-6 days

0

102

Cub Cadet 715-04122

Dowel Pin 12×16

$4.49

$

In Stock, only 1 left!

0

103

Cub Cadet 951-14921

Wire Plate I

$4.99

$

Usually ships in 3-6 days

0

104

Cub Cadet 710-04943

Bolt M6×28

$4.49

$

In Stock, only 2 left!

0

105

Cub Cadet 915-05026

Dowel Pin 10×12

$5.49

$

Usually ships in 3-6 days

0

106

Cub Cadet 925-06299

Regulator

$39.99

$

In Stock, only 1 left!

0

107

Cub Cadet 925-06300

Electric Starter

$294.99

$

Usually ships in 3-6 days

0

108

Cub Cadet 710-06286

Bolt M8×80

$5.49

$

Usually ships in 3-6 days

0

109

Cub Cadet 710-06287

Bolt M6×45

$5.49

$

Usually ships in 3-6 days

0

110

Cub Cadet 924-05033

Dipstick Assembly
(Superseded to 924-05033A)

$26.99

$

Usually ships in 3-6 days

0

111

Cub Cadet 931-10877

Dipstick Cover

$16.99

$

Usually ships in 3-6 days

0

112

Cub Cadet 921-04739

Upper O-Ring

$4.99

$

Usually ships in 3-6 days

0

113

Cub Cadet 931-10878

Dipstick Seat

$14.99

$

Usually ships in 3-6 days

0

114

Cub Cadet 921-04740

Lower O-Ring

$4.99

$

Usually ships in 3-6 days

0

115

Cub Cadet 994-00128

Ignition Coil Assembly

$90.99

$

In Stock, only 1 left!

0

116

Cub Cadet 750-05314

Vibration Pad

$3.99

$

Usually ships in 3-6 days

0

117

Cub Cadet 723-04071

Wire Clamp
(Superseded to 723-04071A)

$3.49

$

Usually ships in 3-6 days

0

118

Cub Cadet 794-00130

Ignition Coil

$

$

Currently unavailable

119

Cub Cadet 951-14902

Connecting Rod

$76.99

$

In Stock, only 2 left!

0

120

Cub Cadet 710-05319

Connecting Rod Bolt

$4.99

$

In Stock, Qty 9

0

121

Cub Cadet 751-14903

Connecting Rod Cap

$

$

Currently unavailable

122

Cub Cadet 751-14904

Connecting Rod

$

$

Currently unavailable

123

Cub Cadet 951-11953

Circlip, Piston Pin
(Superseded to 951-11953A)

$3.99

$

In Stock, Qty 5

0

124

Cub Cadet 711-06415

Piston Pin
(Superseded to 911-06415)

$10.99

$

Usually ships in 3-6 days

0

125

Cub Cadet 951-11962

Tappet
(Superseded to 951-11962A)

$6.99

$

In Stock, only 1 left!

0

126

Cub Cadet 951-14898

Push Rod

$22.99

$

Usually ships in 3-6 days

0

127

Cub Cadet 951-14905

Piston

$55.99

$

Usually ships in 3-6 days

0

128

Cub Cadet 951-05248

Piston Ring Set

$28.99

$

Usually ships in 3-6 days

0

129

Cub Cadet 737-05070

Scraper Ring, Oil Ring

$

$

Currently unavailable

130

Cub Cadet 751-14906

1st Piston Ring

$

$

Currently unavailable

131

Cub Cadet 751-14907

2nd Piston Ring

$

$

Currently unavailable

132

Cub Cadet 737-05071

Lining Ring, Oil Ring

$

$

Currently unavailable

133

Cub Cadet 951-14899

Valve Clearance Adjustment Screws Combination

$5.99

$

Usually ships in 3-6 days

0

134

Cub Cadet 912-05103

Nut

$6.49

$

Usually ships in 3-6 days

0

135

Cub Cadet 951-14900

Rocker Arm

$18.99

$

Usually ships in 3-6 days

0

136

Cub Cadet 951-14901

Rocker Arm

$18.99

$

Usually ships in 3-6 days

0

137

Cub Cadet 911-06414

Rocker Arm Core Shaft

$5.99

$

Usually ships in 3-6 days

0

138

Cub Cadet 715-05035

Rocker Arm Core Shaft Bolt
(Superseded to 915-05035)

$7.99

$

Usually ships in 3-6 days

0

139

Cub Cadet 951-14909

Exhaust Valve

$26.99

$

Usually ships in 3-6 days

0

140

Cub Cadet 921-04743

Gasket, Cylinder Head

$16.99

$

Usually ships in 3-6 days

0

140

Cub Cadet 619-05133

Head Asm Cyl:X90
(Superseded to 919-05133)

$296.99

$

In Stock, only 2 left!

0

141

Cub Cadet 951-14908

Intake Vavle

$26.99

$

Usually ships in 3-6 days

0

142

Cub Cadet 707-06281

Shroud/Lift
(Superseded to 907-06281)

$26.99

$

Usually ships in 3-6 days

0

143

Cub Cadet 918-07090

Cylinder Head

$291.99

$

Usually ships in 3-6 days

0

144

Cub Cadet 710-05305

Hook Bolt

$4.49

$

In Stock, only 2 left!

0

145

Cub Cadet 736-05113

Washer 5.3×1×10
(Superseded to 936-05113)

$5.99

$

Usually ships in 3-6 days

0

146

Cub Cadet 710-06290

Bolt M5×10

$4.99

$

Usually ships in 3-6 days

0

147

Cub Cadet 910-06299

Stud

$4.99

$

Usually ships in 3-6 days

0

148

Cub Cadet 921-04744

Gasket, Muffler

$6.99

$

Usually ships in 3-6 days

0

149

Cub Cadet 951-10292

Spark Plug(F6Rtc)
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

150

Cub Cadet 931-10868

Shroud

$7.99

$

Usually ships in 3-6 days

0

151

Cub Cadet 710-06291

Bolt M10×1.25×70

$4.99

$

Usually ships in 3-6 days

0

152

Cub Cadet 951-11964

Intake Valve Seal
(Superseded to 951-11964A)

$11.99

$

Usually ships in 3-6 days

0

153

Cub Cadet 951-14910

Valve Spring

$10.99

$

Usually ships in 3-6 days

0

154

Cub Cadet 951-14911

Valve Spring Seat

$5.99

$

Usually ships in 3-6 days

0

155

Cub Cadet 951-14912

Valve Cap
(Superseded to 951-14912A)

$3.49

$

In Stock, only 2 left!

0

156

Cub Cadet 951-14913

Valve Cover Ring

$13.99

$

Usually ships in 3-6 days

0

157

Cub Cadet 951-14914

Cylinder Head Cover

$28.99

$

Usually ships in 3-6 days

0

Cub Cadet 952Z4X90HU

Complete Engine
(Superseded to 952Z4X90HUA)

Note: (not shown)

$1437.99

$

Usually ships in 3-6 days

0

Cub Cadet 651-05269

Block Asm:Short:X90

Note: (not shown)

$

$

Currently unavailable

Cub Cadet 619-05133

Head Asm Cyl:X90
(Superseded to 919-05133)

Note: (not shown)

$296.99

$

In Stock, only 2 left!

0
