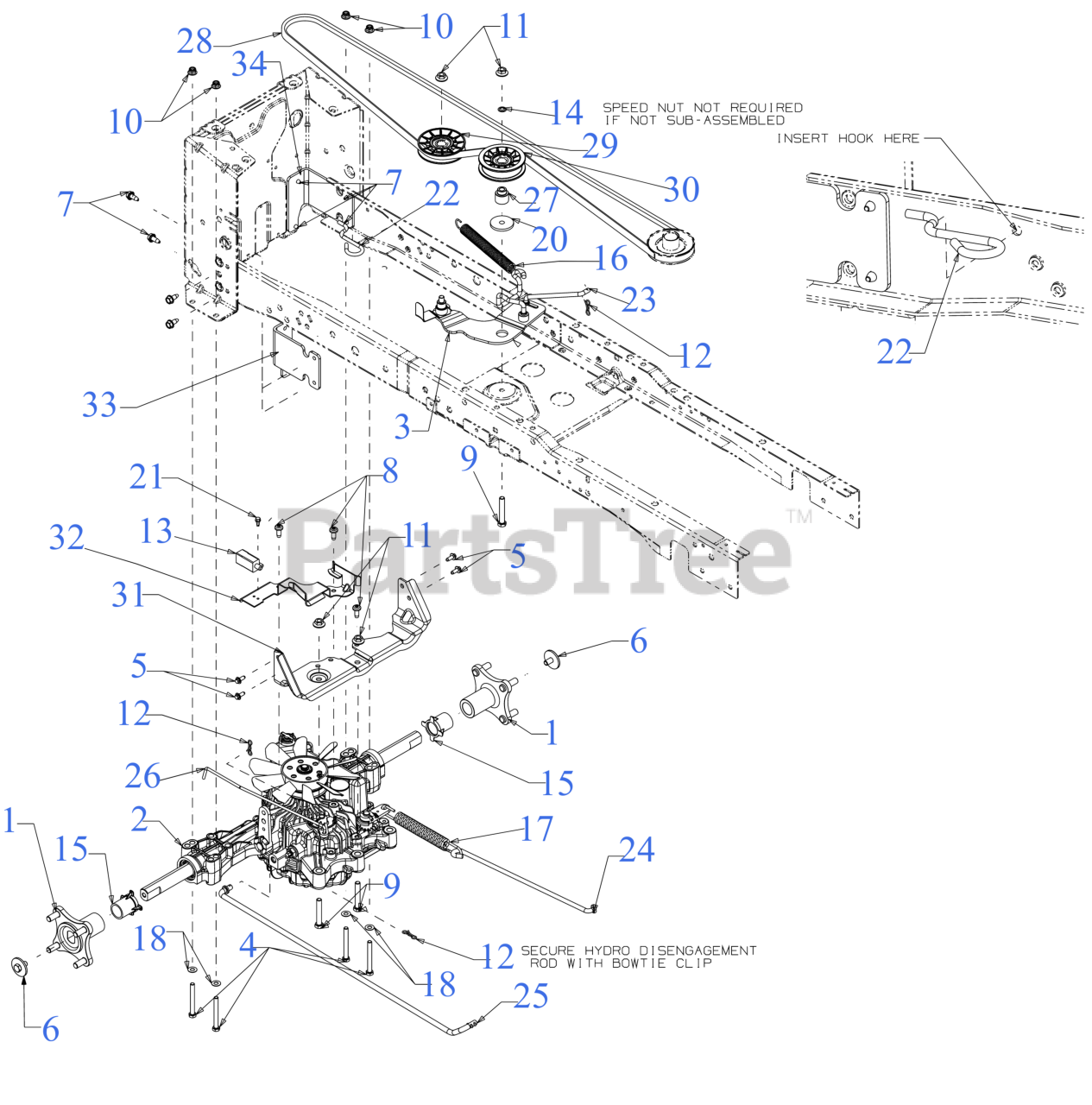

XT1-GT 54 KH FAB (14A7A3TMA10) - Cub Cadet 54" XT1 Enduro Garden Tractor, Fab Deck, Kohler (2024) Drive Parts Diagram

54" XT1 Enduro Garden Tractor, Fab Deck, Kohler

Drive Parts Diagram

  • Title

1

Cub Cadet 918-04317

WHEEL HUB ASSEMBLY

$116.99

$

In Stock, Qty 7

0

1

Cub Cadet 710-0852

STUD 7/16-14 x 1.6

Note: (Not Shown)

$6.49

$

In Stock, Qty 20+

0

2

Cub Cadet 918-07233A

TRANSMISSION ASSEMBLY

Note: (See Separate Breakdown)

$1580.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 983-05090A

IDLER BRACKET ASSEMBLY

$73.99

$

In Stock, only 4 left!

0

3

Cub Cadet 750-0890

SPACER

Note: (Not Shown)

$6.99

$

In Stock, only 4 left!

0

4

Cub Cadet 710-0176

HEX SCREW 5/16-18 x 2.75

$4.49

$

In Stock, only 2 left!

0

5

Cub Cadet 710-06133

SCREW M6-1 x .625

$3.99

$

In Stock, Qty 20+

0

6

Cub Cadet 710-06168

SCREW 3/8-16 x .75 GR5.1

$6.49

$

Usually ships in 3-6 days

0

7

Cub Cadet 710-06256

SCREW M8-1.25 x .750

$3.49

$

In Stock, Qty 20+

0

8

Cub Cadet 710-1611B

SCREW 5/16-18 x .750

$6.99

$

Usually ships in 3-6 days

0

9

Cub Cadet 710-3011

SCREW 3/8-16 x 2.25 GR5

$6.99

$

In Stock, Qty 20+

0

10

Cub Cadet 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 714-04040

BOW TIE COTTER PIN 1/4-5/16

$1.49

$

In Stock, Qty 20+

0

13

Cub Cadet 725-04363

INTERLOCK SWITCH (NO/NC)

$15.99

$

In Stock, Qty 20+

0

14

Cub Cadet 726-0201

PUSH NUT

$6.99

$

In Stock, Qty 20+

0

15

Cub Cadet 731-10547A

AXLE SLEEVE 1.02 ID x 1.60 LG

$4.49

$

Usually ships in 3-6 days

0

16

Cub Cadet 732-05108A

EXTENSION SPRING .790 DIA x 8.41

$12.99

$

In Stock, Qty 20+

0

17

Cub Cadet 732-05146

EXTENSION SPRING 0.90 DIA x 8.14

$12.99

$

In Stock, Qty 5

0

18

Cub Cadet 736-0278

FLAT WASHER

$5.99

$

Usually ships in 3-6 days

0

20

Cub Cadet 738-04162C

SHOULDER SPACER

$13.99

$

In Stock, Qty 20+

0

21

Cub Cadet 738-04237A

SHOULDER SCREW

$6.49

$

In Stock, Qty 6

0

22

Cub Cadet 747-05608A

DECK SPRING HOOK

$3.49

$

In Stock, Qty 20+

0

23

Cub Cadet 747-06193B

IDLER BRACKET ROD

$11.99

$

In Stock, only 2 left!

0

24

Cub Cadet 747-06251C

BRAKE ROD

$12.99

$

In Stock, only 2 left!

0

25

Cub Cadet 747-06281B

HYDRO CONTROL ROD

$18.99

$

Usually ships in 3-6 days

0

26

Cub Cadet 747-06447

HYDRO DISENGAGEMENT ROD

$8.49

$

Usually ships in 3-6 days

0

27

Cub Cadet 748-05037B

SHOULDER SPACER

$5.49

$

In Stock, Qty 20+

0

28

Cub Cadet 954-05027B

V-BELT A SEC x 90.90

$63.99

$

In Stock, Qty 20+

0

28

Cub Cadet 490-501-C061

Cub Cadet DRIVE BELT

Note: Retail Packaged Part

$63.99

$

In Stock, only 2 left!

0

28

Cub Cadet 490-501-M061

Genuine Factory Parts DRIVE BELT

Note: Retail Packaged Part

$63.99

$

In Stock, only 4 left!

0

29

Cub Cadet 756-05024

V-IDLER PULLEY 3.56 OD

$25.99

$

In Stock, Qty 20+

0

30

Cub Cadet 756-05032

FLAT IDLER PULLEY 3.00 OD

$26.99

$

In Stock, Qty 20+

0

31

Cub Cadet 783-08463A

TRANSMISSION MOUNTING BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

$28.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 783-08991A

BELT KEEPER BRACKET

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-08991A-0637

BRKT-BELT KEEPER - POWDER BLACK (0637)

$13.99

$

Usually ships in 3-6 days

0

$11.99

$

Usually ships in 3-6 days

0

33

Cub Cadet 783-09775

FRAME SUPPORT BRACKET (RH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09775-0637

BLACK BRKTFRAME SUPOR - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0

34

Cub Cadet 783-09776

FRAME SUPPORT BRACKET (LH)

Note: *CHOOSE COLOR WHEN ORDERING*

Variations

Cub Cadet 783-09776-0637

BLACK BRKTFRAME SUPOR - POWDER BLACK (0637)

$28.99

$

Usually ships in 3-6 days

0

$28.99

$

Usually ships in 3-6 days

0
