XT1-GT 50 KH (14AQA3CQ010) - Cub Cadet 50" XT1 Enduro Garden Tractor, Kohler (2016) Pedals Parts Diagram

50" XT1 Enduro Garden Tractor, Kohler

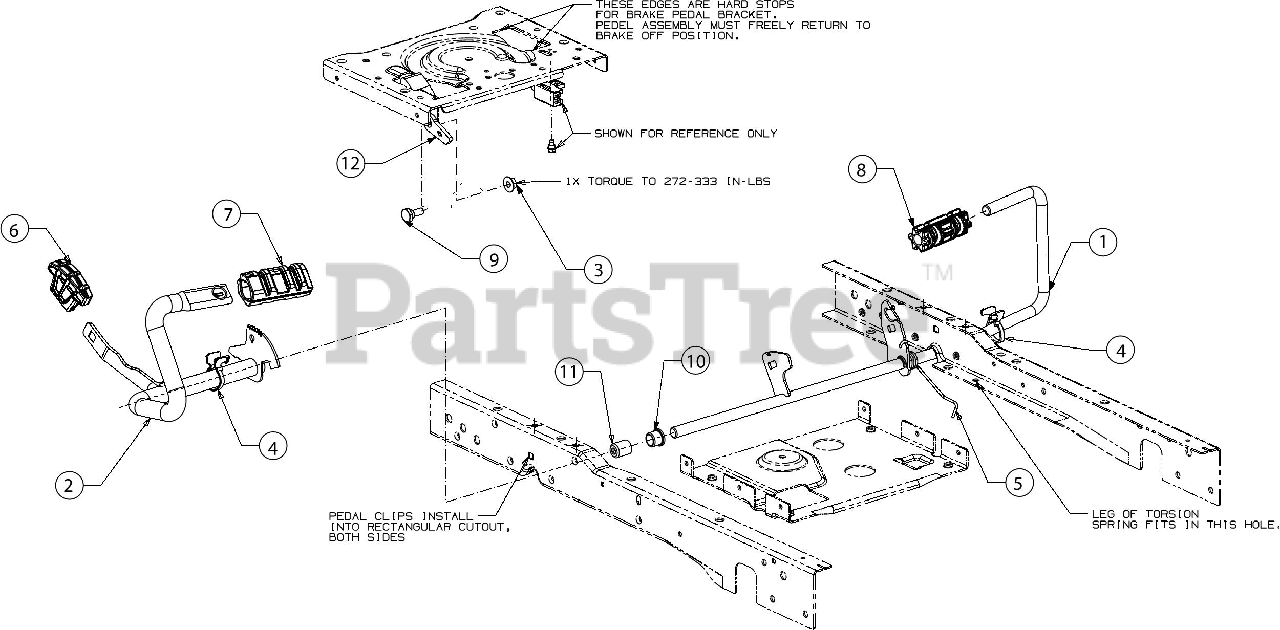

Pedals Parts Diagram

  • Title
1

Cub Cadet 947-05033

BRAKE PEDAL ASSEMBLY

$82.99

$

Usually ships in 3-6 days

0

2

Cub Cadet 949-05026

FORWARD/REVERSE PEDAL ASSEMBLY

$

$

Not available

3

Cub Cadet 712-04217

FLANGE LOCK NUT

$4.49

$

In Stock, Qty 17

0

4

$4.49

$

In Stock, Qty 7

0

5

Cub Cadet 732-05155

TORSION SPRING

$5.49

$

Usually ships in 3-6 days

0

6

Cub Cadet 735-05028

REVERSE PEDAL PAD

$6.49

$

In Stock, Qty 11

0

7

Cub Cadet 735-05030

FORWARD PEDAL PAD

$12.99

$

In Stock, only 1 left!

0

8

Cub Cadet 735-05051

BRAKE PEDAL PAD

$11.99

$

In Stock, only 1 left!

0

9

Cub Cadet 938-0380

SHOULDER SCREW
(Superseded to 738-0380)

$7.99

$

In Stock, only 1 left!

0

10

Cub Cadet 741-05074A

FLANGE BEARING .63X.84X.71
(Superseded to 741-05074B)

$2.99

$

In Stock, Qty 8

0

11

Cub Cadet 741-05085A

PLASTIC SLEEVE BEARING

$3.49

$

In Stock, Qty 8

0

12

Cub Cadet 748-04203

CRUISE LATCH

$14.99

$

Usually ships in 3-6 days

0
