XT 90 - Weed Eater String Trimmer Carburetor Assembly (Part 2) Parts Diagram

String Trimmer

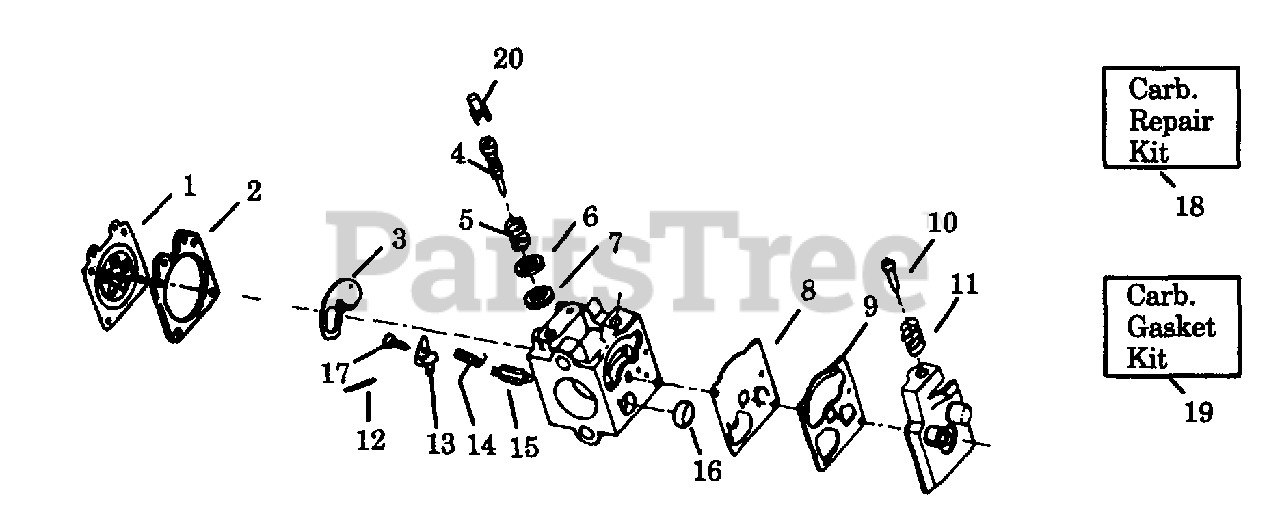

Carburetor Assembly (Part 2) Parts Diagram

  • Title
1

Poulan 530035014

Metering Diaphragm
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

2

Poulan 530035151

Metering Diaphragm Gasket

$3.99

$

In Stock, Qty 8

0

3

Poulan 530035211

Circuit Plate Gasket

$

$

Not available

4

Poulan 530035212

Mixture Needle Type I (WA-207/207A)

$

$

Not available

4

Poulan 530035341

Mixture Needle Type II (WA-219)

$

$

Not available

5

Poulan 530035214

Mixture Needle Spring Type I (WA-207/207A)
(Superseded to 530035293)

$4.99

$

Usually ships in 3-10 days

0

5

Poulan 530035342

Mixture Needle Spring Type II (WA-219)

$4.99

$

In Stock, Qty 5

0

6

Poulan 530035217

Mixture Needle Washer

$

$

Not available

7

Poulan 530035218

"O" Ring Mixture

$

$

Not available

8

Poulan 530035166

Fuel Pump Diaphragm
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

9

Poulan 530035164

Fuel Pump Gasket
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

10

Poulan 530035203

Idle Speed Screw

$8.99

$

Usually ships in 3-10 days

0

11

Poulan 530035208

Idle Speed Spring
(Superseded to 501667801)

$

$

Not available

12

Poulan 530035028

Metering Lever Pin
(Superseded to 505520125)

$7.99

$

In Stock, only 3 left!

0

13

Poulan 530035031

Metering Lever
(Superseded to 505520127)

$5.99

$

Usually ships in 3-10 days

0

14

Poulan 530035188

Metering Lever Spring

$4.99

$

In Stock, Qty 10

0

15

Poulan 530035106

Inlet Needle Valve
(Superseded to 503117001)

$22.99

$

In Stock, Qty 8

0

16

Poulan 530035178

Fuel Inlet Screen

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530035016

Metering Lever Pin Screw

$7.99

$

In Stock, Qty 6

0

18

Poulan 530035264

Carb. Kwik Repair Kit

Note: (Contents 1, 2, 3, 7, 8, 9, & 12-17)

$

$

Not available

19

Poulan 530035219

Carb. Gasket/Diaphragm Kit
(Superseded to 530069844)

Note: (Contents 1, 2, 3, 7, 8, & 9)

$20.99

$

In Stock, only 3 left!

0

20

Poulan 530035337

Limiter Cap

$

$

Not available
