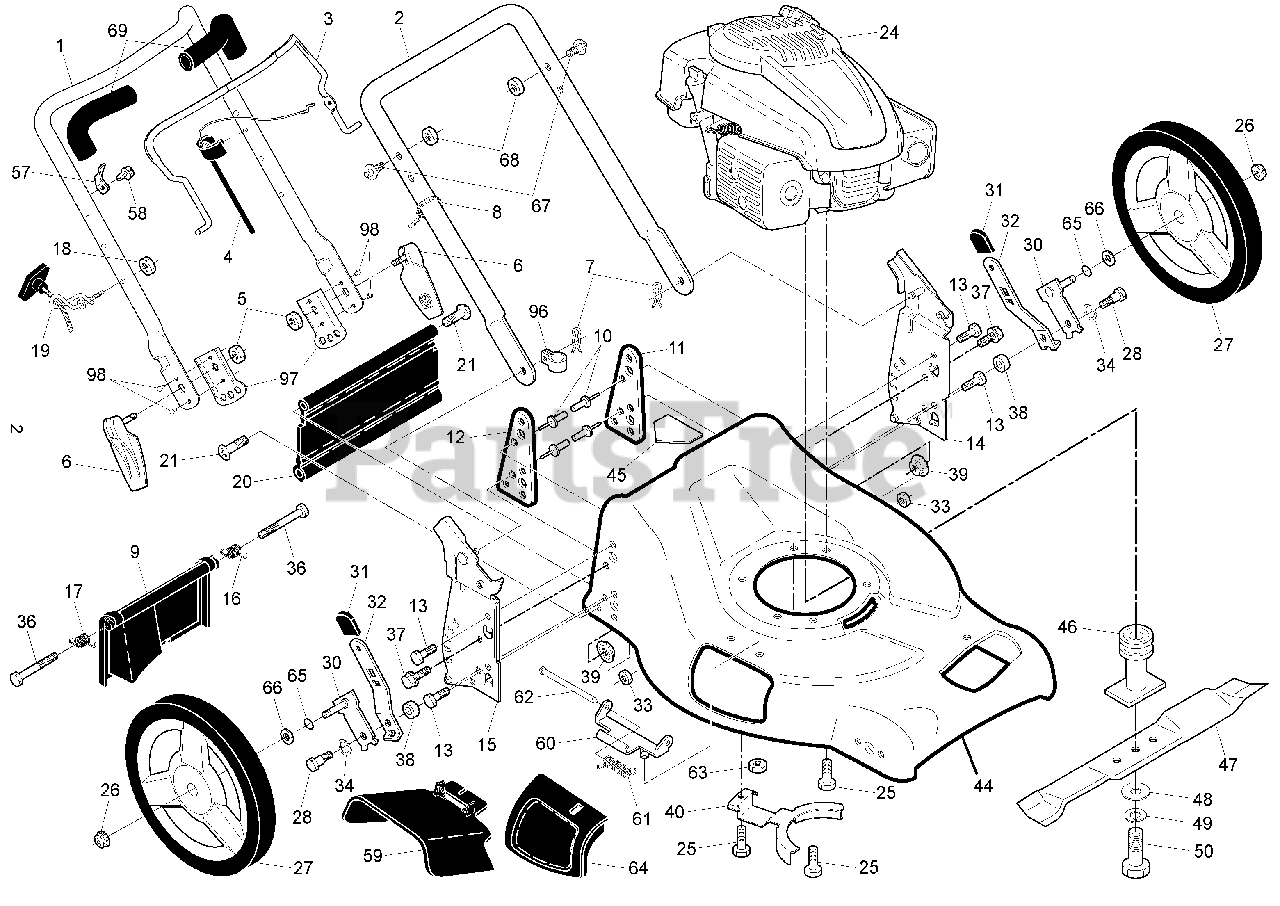

XT 721 F (961430059-01) - Husqvarna 21" Walk-Behind Mower (2010-02) Frame Parts Diagram

21" Walk-Behind Mower

Frame Parts Diagram

  • Title

1

Husqvarna 532420577

Upper Handle
(Superseded to 583848601)

Note: (Includes Foam Grip)

$56.99

$

Usually ships in 3-10 days

0

2

Husqvarna 532433896

Lower Handle

$28.99

$

Usually ships in 3-10 days

0

3

Husqvarna 532426812

Control Bar

$

$

Not available

4

Husqvarna 532435054

Engine Zone Control Cable

$15.99

$

Usually ships in 3-10 days

0

5

Husqvarna 532191730

Locknut, Hex 1/4-20

$7.49

$

In Stock, Qty 5

0

6

Husqvarna 532432018

Handle Knob Assembly, Quick-Release

$9.49

$

Usually ships in 3-10 days

0

7

Husqvarna 532051793

Hairpin Cotter

$7.49

$

Usually ships in 3-10 days

0

8

Husqvarna 532066426

Wire Tie
(Superseded to 532124756)

$9.49

$

Usually ships in 3-10 days

0

9

Husqvarna 532406985

Rear Door Assembly
(Superseded to 532401812)

$34.99

$

Usually ships in 3-10 days

0

10

Husqvarna 532128415

Pop Rivet

$4.99

$

Usually ships in 3-10 days

0

11

Husqvarna 532410540

Support Bracket, LH
(Superseded to 532406573)

$7.49

$

Usually ships in 3-10 days

0

12

Husqvarna 532410542

Support Bracket, RH

$7.49

$

Usually ships in 3-10 days

0

13

Husqvarna 817060410

Screw 1/4-20 x 5/8

$7.49

$

Usually ships in 3-10 days

0

14

Husqvarna 532434550

Handle Bracket Assembly, LH

$

$

Not available

15

Husqvarna 532434549

Handle Bracket Assembly, RH

$9.49

$

Usually ships in 3-10 days

0

16

Husqvarna 532405417

Spring, Rear Door, LH

$9.49

$

Usually ships in 3-10 days

0

17

Husqvarna 532405418

Spring, Rear Door, RH

$4.99

$

Usually ships in 3-10 days

0

18

Husqvarna 532132004

Locknut, Hex 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

19

Husqvarna 532194788

Rope Guide
(Superseded to 586122501)

$18.99

$

In Stock, Qty 5

0

20

Husqvarna 532413159

Rear Skirt

$17.99

$

In Stock, only 3 left!

0

21

Husqvarna 532088652

Screw, Hinge

$7.49

$

In Stock, only 2 left!

0

24

Engine, Kohler, Model Number XT173-3225-EA

Note: (For engine service and replacement parts, call Kohler Engines at 1-800-544-2444)

$

$

Not available

25

Husqvarna 532150406

Hex Head Thread Rolling Screw 3/8-16 x 1-1/8

$7.49

$

Usually ships in 3-10 days

0

26

Husqvarna 532409149

Hex Flange Nut

$4.99

$

In Stock, Qty 20+

0

27

Husqvarna 532410815

Wheel & Tire Assembly, Rear, 12"
(Superseded to 585911001)

$26.99

$

In Stock, Qty 6

0

28

Husqvarna 532401638

Shoulder Bolt 5/16-18 x .33
(Superseded to 596203801)

$4.99

$

In Stock, Qty 8

0

30

Husqvarna 532413141

Axle Arm Assembly, Rear

$7.49

$

In Stock, only 3 left!

0

31

Husqvarna 532701037

Selector Knob

$5.99

$

In Stock, only 4 left!

0

32

Husqvarna 532409889

Selector Spring
(Superseded to 532401626)

$4.99

$

In Stock, only 2 left!

0

33

Husqvarna 873800500

Nut, Hex 5/16-18

$3.99

$

Usually ships in 3-10 days

0

34

Husqvarna 532401630

Washer, Curved, Cylindrical

$4.99

$

In Stock, only 3 left!

0

36

Husqvarna 532184193

Bolt

$

$

Not available

37

Husqvarna 874780512

Thread Cutting Screw w/Sems 5/16-18 x 3/4
(Superseded to 596030501)

$4.99

$

In Stock, Qty 20+

0

38

Husqvarna 532401629

Spacer

$6.49

$

In Stock, only 4 left!

0

39

Husqvarna 532155377

Nut, Hex, Flanged 5/16-18

$6.49

$

Usually ships in 3-10 days

0

40

Husqvarna 532425711

Belt Keeper

$

$

Not available

44

Husqvarna 532408989

Lawn Mower Housing

Note: (Includes Key Numbers 10, 11, 12 and 45)

$

$

Not available

45

Husqvarna 532404763

Danger Decal
(Superseded to 581579101)

$7.49

$

Usually ships in 3-10 days

0

46

Husqvarna 532421248

Blade Adapter / Pulley
(Superseded to 532443950)

$

$

Not available

47

Husqvarna 532406712

Blade 21"
(Superseded to 594893001)

$20.99

$

In Stock, only 2 left!

0

48

Husqvarna 532851074

Hardened Washer

$4.99

$

In Stock, only 4 left!

0

49

Husqvarna 532850263

Helical Washer 3/8-24 x 1-3/8 Grade 8
(Superseded to 810040600)

$4.99

$

In Stock, Qty 20+

0

50

Husqvarna 532851084

Hex Head Machine Screw 3/8-24 x 1-3/8 Grade 8
(Superseded to 532435345)

$4.99

$

In Stock, Qty 20+

0

57

Husqvarna 532430034

Upstop Bracket

$6.99

$

In Stock, only 3 left!

0

58

Husqvarna 532750634

Screw

$6.49

$

In Stock, Qty 5

0

59

Husqvarna 532185582

Discharge Deflector
(Superseded to 532175071)

$20.99

$

Usually ships in 3-10 days

0

60

Husqvarna 532175735

Hinge Bracket Assembly

$

$

Not available

61

Husqvarna 532193000

Spring, Hinge

$7.49

$

In Stock, only 3 left!

0

62

Husqvarna 532175650

Rod, Hinge

$7.49

$

In Stock, Qty 10

0

63

Husqvarna 873800400

Locknut, Hex 1/4-20
(Superseded to 582478602)

$2.49

$

In Stock, Qty 20+

0

64

Husqvarna 532185576

Mulcher Door

$14.99

$

Usually ships in 3-10 days

0

65

Husqvarna 532197480

O-Ring

$7.49

$

Usually ships in 3-10 days

0

66

Husqvarna 532088348

Washer, Flat

$7.49

$

In Stock, Qty 6

0

67

Husqvarna 532199255

Stud

$4.99

$

Usually ships in 3-10 days

0

68

Husqvarna 532751153

Nut, Hex

$4.99

$

In Stock, only 1 left!

0

69

Husqvarna 532182748

Grip, Foam

$

$

Not available

96

Husqvarna 532197991

Clip, Cable

$7.49

$

In Stock, Qty 6

0

97

Husqvarna 532413534

Bracket, Adjuster

$10.99

$

Usually ships in 3-10 days

0

98

Husqvarna 532199697

Rivet

$4.99

$

Usually ships in 3-10 days

0

Husqvarna 532404764

Decal, Warning
(Superseded to 581579101)

Note: (not shown)

$7.49

$

Usually ships in 3-10 days

0

Husqvarna 532431443

Operator's Manual, English / French

$

$

Currently unavailable
