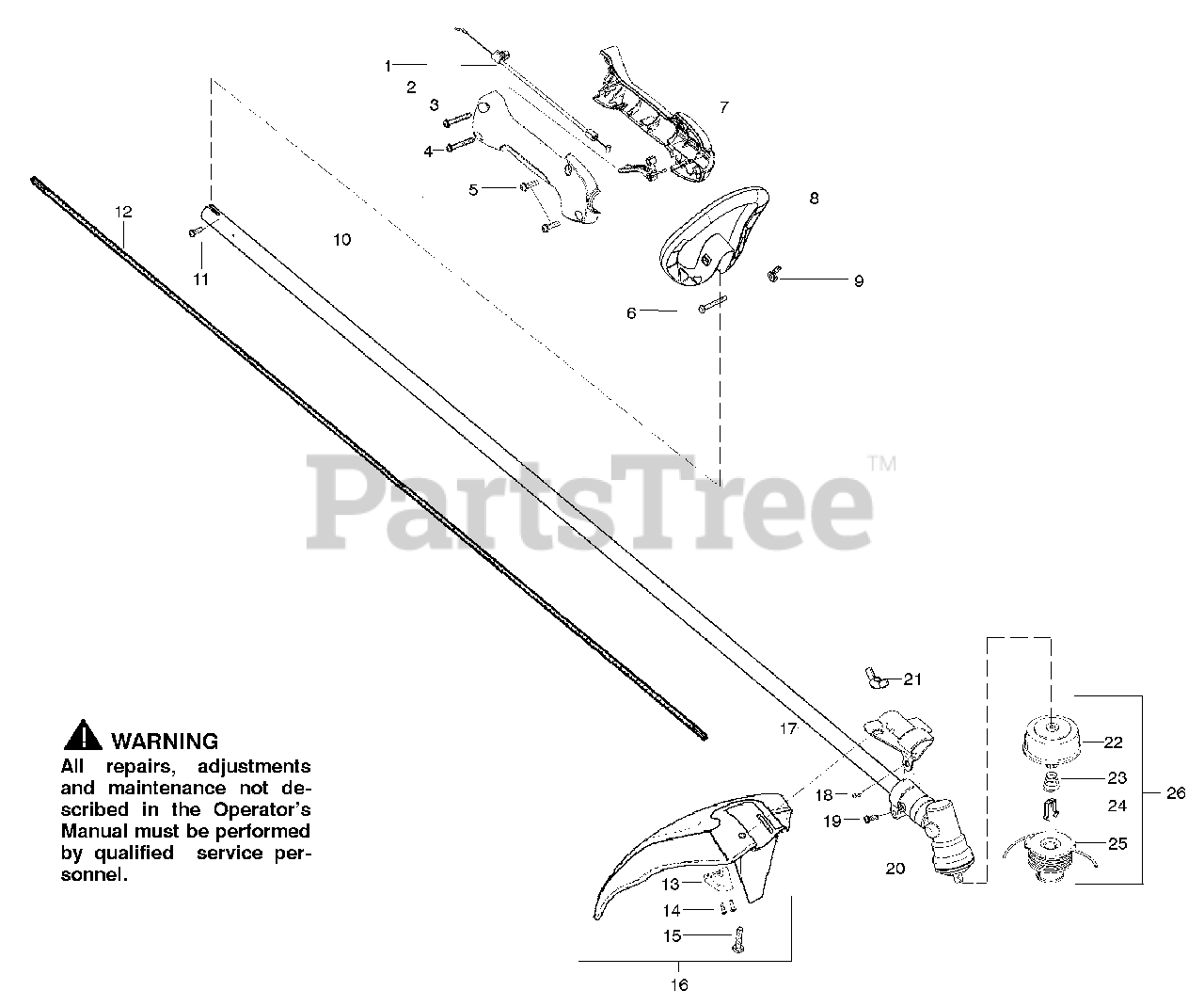

XT 700 (952711798) - Poulan String Trimmer (2009-03) Handle & Controls Parts Diagram

String Trimmer

Handle & Controls Parts Diagram

  • Title

1

Electrolux/AYP 530057566

Assy-Throttle Cable

$

$

Not available

2

Electrolux/AYP 530058000

Trigger

$6.49

$

In Stock, Qty 10

0

3

Electrolux/AYP 530058751

Throttle Hsg. (Right)

$

$

Not available

4

Electrolux/AYP 530016406

Screw

$6.49

$

In Stock, only 1 left!

0

5

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

6

Electrolux/AYP 530015786

Bolt-Handle

$4.99

$

In Stock, only 4 left!

0

7

Electrolux/AYP 530058750

Throttle Hsg. (Left)

$

$

Not available

8

Electrolux/AYP 530058754

Handle-Assist
(Superseded to 530058753)

$

$

Not available

9

Electrolux/AYP 530016152

Wingnut-Handle
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

10

Electrolux/AYP 530071780

Assy-Drive Shaft Hsg.

$32.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 530015805

Screw
(Superseded to 530015886)

$6.49

$

In Stock, only 4 left!

0

12

Electrolux/AYP 530096169

Shaft- Flex

$

$

Not available

13

Electrolux/AYP 530052285

Line Limiter

$3.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 530015814

Screw

$6.49

$

In Stock, Qty 17

0

15

Electrolux/AYP 530015820

Bolt-Shield

$4.99

$

In Stock, only 1 left!

0

16

Electrolux/AYP 530071823

Kit-Shield Assy

Note: (Incl.13,14)

$

$

Not available

17

Electrolux/AYP 545150701

Bracket-Shield

$5.99

$

In Stock, only 2 left!

0

18

Electrolux/AYP 530015224

Screw

$

$

Not available

19

Electrolux/AYP 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

20

Electrolux/AYP 530096099

Assy-Gearbox

$53.99

$

In Stock, only 2 left!

0

21

Electrolux/AYP 530016152

Wingnut
(Superseded to 530401992)

$2.49

$

In Stock, only 1 left!

0

22

Electrolux/AYP 530095772

Assy-Hub.

$

$

Not available

23

Electrolux/AYP 530053241

Spring

$

$

Not available

24

Electrolux/AYP 530401957

'Retainer

$4.99

$

In Stock, only 4 left!

0

25

Electrolux/AYP 952711551

Accy-Spool w/Line

$

$

Not available

26

Electrolux/AYP 952711550

Accy-Head TNG VI Assy.

$

$

Not available

26

Electrolux/AYP 545186834

Operator Manual

Note: Not Shown

$

$

Not available

26

Electrolux/AYP 530058594

Decal-Start Inst.

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 530058597

Decal-Choke

Note: Not Shown

$3.99

$

Usually ships in 3-10 days

0

26

Electrolux/AYP 545144405

Decal-Shaft Warning

Note: Not Shown

$

$

Not available
