XT 625Y22RP (961420082-00) - Poulan Pro XT Walk-Behind Mower (2010-01) Frame Parts Diagram

XT Walk-Behind Mower

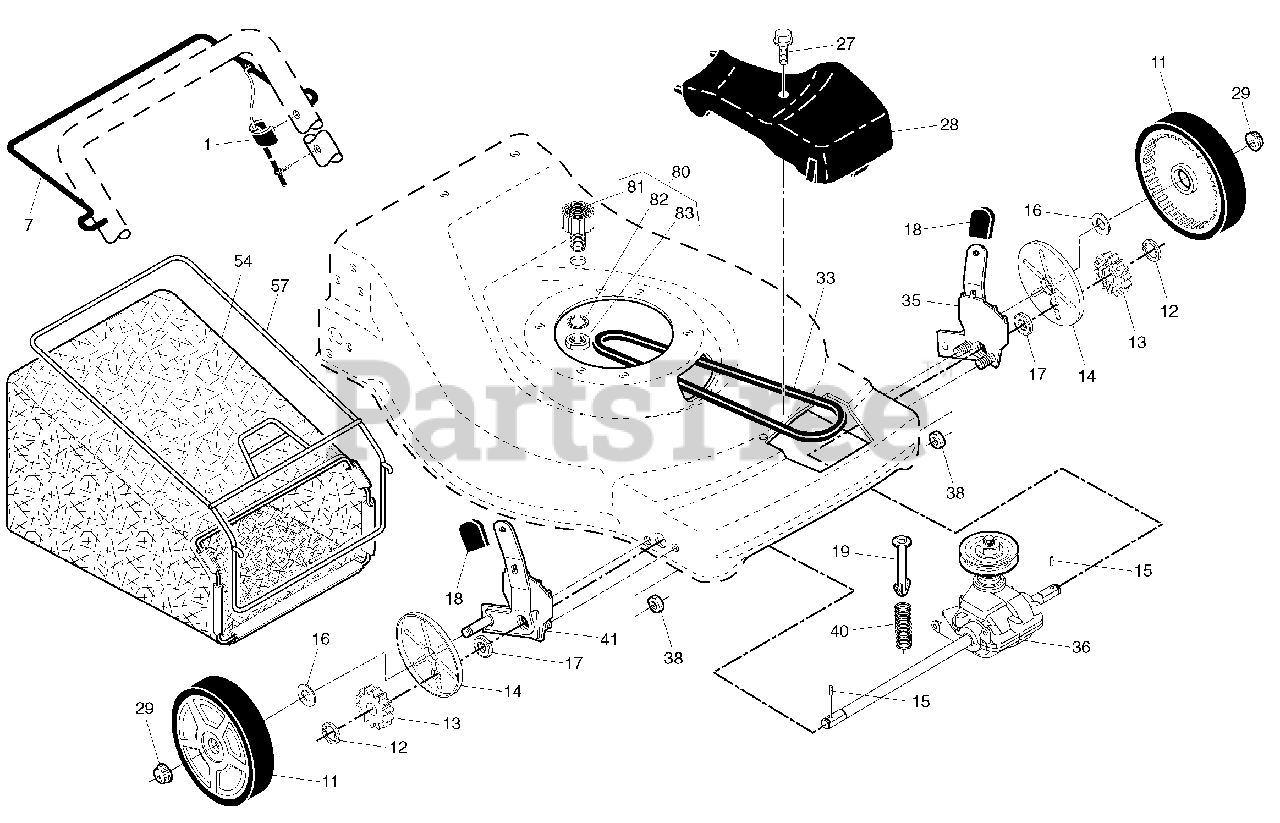

Frame Parts Diagram

  • Title
1

Electrolux/AYP 194653

Drive Control Cable
(Superseded to 532194653)

$26.99

$

In Stock, only 1 left!

0

7

Electrolux/AYP 194185X421

Bar, Drive Control
(Superseded to 532435281)

$12.99

$

In Stock, only 1 left!

0

11

Electrolux/AYP 193912X428

Wheel & Tire Assembly, Front
(Superseded to 581009201)

$34.99

$

In Stock, only 2 left!

0

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 403849

Pinion
(Superseded to 532403849)

$6.99

$

In Stock, Qty 8

0

14

Electrolux/AYP 189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, only 3 left!

0

15

Electrolux/AYP 404845

Pawl, Drive
(Superseded to 532404845)

$5.99

$

In Stock, only 3 left!

0

16

Electrolux/AYP 67725

Washer, Flat 3/8
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

17

Electrolux/AYP 421836

Bearing, Wheel Adjuster Assembly
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

18

Electrolux/AYP 701037X421

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

19

Electrolux/AYP 150495

Retainer, Spring
(Superseded to 532150495)

$7.49

$

In Stock, only 1 left!

0

27

Electrolux/AYP 175262

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532175262)

$7.49

$

In Stock, only 1 left!

0

28

Electrolux/AYP 401271X428

Drive Cover
(Superseded to 532403342)

$

$

Not available

29

Electrolux/AYP 409148

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

$

$

Not available

35

Electrolux/AYP 424201

Kit, Wheel Adjuster, LH
(Superseded to 532438485)

Note: (Includes Knob and Bearing)

$44.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 415226

Gear Case Assembly, Complete
(Superseded to 532415226)

$84.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 73800400

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 137090

Spring
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 424200

Kit, Wheel Adjuster, RH
(Superseded to 532438486)

Note: (Includes Knob and Bearing)

$

$

Not available

54

Electrolux/AYP 412357

Grassbag Assembly

$

$

Not available

57

Electrolux/AYP 411952

Frame, Grassbag
(Superseded to 532411952)

$

$

Not available

80

Electrolux/AYP 421114

Water Washout Assembly
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

81

Electrolux/AYP 419735

Fitting, Hose, Water Washout
(Superseded to 532421114)

$24.99

$

In Stock, only 2 left!

0

82

Electrolux/AYP 415585

Washer, Lock, Internal Tooth
(Superseded to 532415585)

$4.99

$

In Stock, only 2 left!

0

83

Electrolux/AYP 415586

Locknut, Hex, with O-Ring
(Superseded to 532415586)

$6.49

$

In Stock, only 4 left!

0
