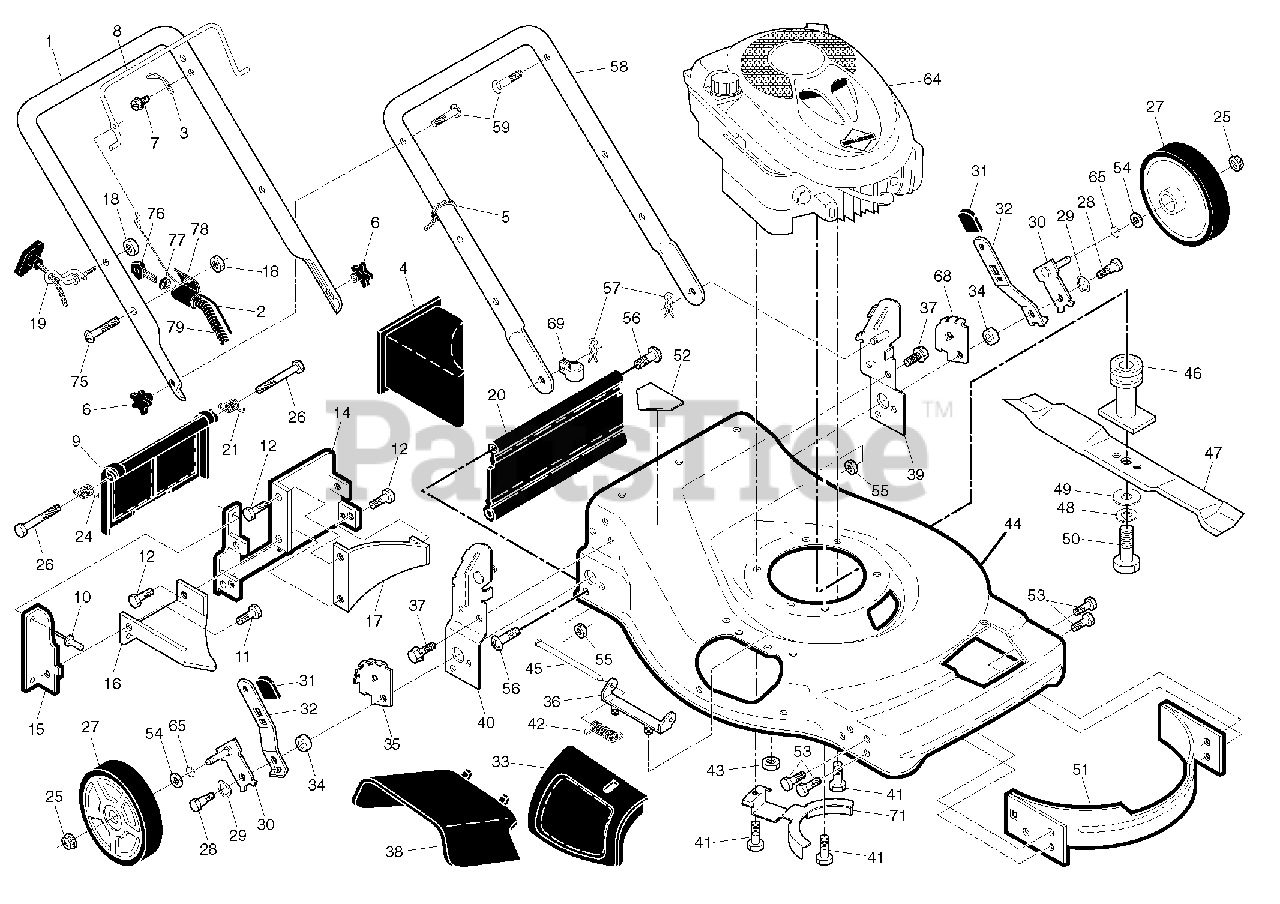

XT 625Y22RKP (961420084-00) - Poulan Pro XT Walk-Behind Mower (2010-01) Frame Parts Diagram

XT Walk-Behind Mower

Frame Parts Diagram

  • Title

1

Electrolux/AYP 427615X479

Upper Handle
(Superseded to 532427738)

$30.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 401994

Cable, Operator Presence
(Superseded to 532401994)

$30.99

$

In Stock, only 1 left!

0

3

Electrolux/AYP 850733X004

Bracket, Upstop
(Superseded to 532850733)

$7.49

$

In Stock, only 1 left!

0

4

Electrolux/AYP 166649

Mulcher Plug
(Superseded to 532166649)

$

$

Not available

5

Electrolux/AYP 66426

Wire Tie
(Superseded to 532007192)

$9.49

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 182398

Handle Knob
(Superseded to 532182398)

$7.49

$

In Stock, only 4 left!

0

7

Electrolux/AYP 750634

Screw
(Superseded to 532750634)

$6.49

$

In Stock, Qty 5

0

8

Electrolux/AYP 427414X428

Control Bar
(Superseded to 532427414)

$36.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 401813X428

Rear Door Assembly
(Superseded to 532401813)

$17.99

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 128415

Pop Rivet
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 150050

Screw, Self-Tapping #10-24 x 5/8
(Superseded to 532150050)

$4.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 17060410

Screw, Hex Hex Head, Sems 1/4-20 x 1/2
(Superseded to 817060410)

$7.49

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 195622X479

Back Plate
(Superseded to 532195622)

$15.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 410545X479

Side Baffle
(Superseded to 532410545)

$7.49

$

Usually ships in 3-10 days

0

16

Electrolux/AYP 176655X479

Discharge Baffle
(Superseded to 532176655)

$

$

Not available

17

Electrolux/AYP 140661X479

Rear Baffle
(Superseded to 532140661)

$

$

Not available

18

Electrolux/AYP 132004

Keps Locknut 1/4-20

$

$

Not available

19

Electrolux/AYP 194788

Rope Guide
(Superseded to 532194788)

$18.99

$

In Stock, Qty 5

0

20

Electrolux/AYP 413160

Rear Skirt
(Superseded to 532413160)

$13.99

$

Usually ships in 3-10 days

0

21

Electrolux/AYP 405421

Spring, Rear Door, LH
(Superseded to 532405421)

$4.99

$

In Stock, only 3 left!

0

24

Electrolux/AYP 405423

Spring, Rear Door, RH
(Superseded to 532405423)

$4.99

$

In Stock, only 3 left!

0

25

Electrolux/AYP 409148

Nut, Hex, Flanged
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

26

Electrolux/AYP 184193

Bolt, Rear Door
(Superseded to 532184193)

$

$

Not available

27

Electrolux/AYP 197972X428

Wheel & Tire Assembly, Rear
(Superseded to 532430480)

$21.99

$

Usually ships in 3-10 days

0

28

Electrolux/AYP 174719

Bolt, Shoulder 3/8-16 x 1
(Superseded to 532174719)

$9.49

$

In Stock, only 1 left!

0

29

Electrolux/AYP 401630

Washer, Curved, Cylindrical
(Superseded to 532401630)

$4.99

$

In Stock, only 3 left!

0

30

Electrolux/AYP 401179X004

Axle Arm Assembly
(Superseded to 532401179)

$7.49

$

In Stock, only 1 left!

0

31

Electrolux/AYP 701037

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

32

Electrolux/AYP 401621X004

Selector Spring
(Superseded to 532401621)

$5.99

$

In Stock, only 2 left!

0

33

Electrolux/AYP 189917X428

Mulcher Door
(Superseded to 532196053)

$17.99

$

Usually ships in 3-10 days

0

34

Electrolux/AYP 401629

Spacer
(Superseded to 532401629)

$6.49

$

In Stock, only 4 left!

0

35

Electrolux/AYP 407492X005

Wheel Adjusting Bracket, RH
(Superseded to 532407492)

$4.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 175735

Hinge Bracket Assembly
(Superseded to 532175735)

$

$

Not available

37

Electrolux/AYP 428867

Screw
(Superseded to 532428867)

$6.49

$

In Stock, Qty 11

0

38

Electrolux/AYP 402574X428

Discharge Deflector
(Superseded to 532402574)

$

$

Not available

39

Electrolux/AYP 195916X479

Handle Bracket Assembly, LH
(Superseded to 532195916)

$10.99

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 195917X479

Handle Bracket Assembly, RH
(Superseded to 532195917)

$10.99

$

Usually ships in 3-10 days

0

41

Electrolux/AYP 150406

Screw, Hex Head, Threaded, Rolled 3/8-16 x 1-1/8
(Superseded to 532150406)

$7.49

$

Usually ships in 3-10 days

0

42

Electrolux/AYP 193000

Spring, Torsion
(Superseded to 532193000)

$7.49

$

In Stock, only 3 left!

0

43

Electrolux/AYP 73800400

Nut, Hex, Nylock
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

44

Electrolux/AYP 425878

Kit, Mower Housing

Note: (Includes Key Numbers 14, 15 and 51)

$135.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 175650

Rod, Hinge
(Superseded to 532175650)

$7.49

$

In Stock, Qty 10

0

46

Electrolux/AYP 421248

Blade Adapter / Pulley
(Superseded to 532443950)

$

$

Not available

47

Electrolux/AYP 406713

Blade, 22"
(Superseded to 532406713)

$26.99

$

In Stock, Qty 11

0

48

Electrolux/AYP 850263

Washer, Helical
(Superseded to 810040600)

$1.99

$

Usually ships in 3-10 days

0

49

Electrolux/AYP 851074

Washer, Hardened
(Superseded to 532851074)

$4.99

$

In Stock, only 4 left!

0

50

Electrolux/AYP 851084

Screw, Machine, Hex Head 3/8-24 x 1-3/8 Grade 8
(Superseded to 532851084)

$4.99

$

In Stock, Qty 20+

0

51

Electrolux/AYP 170031

Kit, Front Baffle
(Superseded to 532170031)

Note: (Includes Key Number 53)

$

$

Not available

52

Electrolux/AYP 404763

Danger Decal

$2.49

$

Usually ships in 3-10 days

0

53

Electrolux/AYP 17600406

Screw, Serrated, TT 1/4-20
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0

54

Electrolux/AYP 88348

Washer, Flat
(Superseded to 532088348)

$7.49

$

In Stock, Qty 6

0

55

Electrolux/AYP 73930600

Locknut, Hex 3/8-16
(Superseded to 873680600)

$3.99

$

Usually ships in 3-10 days

0

56

Electrolux/AYP 88652

Hinge Screw 1/4-20 x 1-1/4
(Superseded to 532088652)

$7.49

$

In Stock, only 2 left!

0

57

Electrolux/AYP 51793

Hairpin Cotter
(Superseded to 532051793)

$7.49

$

Usually ships in 3-10 days

0

58

Electrolux/AYP 400512X479

Lower Handle
(Superseded to 532434539)

$

$

Not available

59

Electrolux/AYP 191574

Handle Bolt
(Superseded to 532191574)

$6.99

$

In Stock, only 4 left!

0

64

Engine, Briggs & Stratton, Model Number 122T05-4846-EA

Note: (For engine service and replacement parts, call Briggs & Stratton at 1-800-233-3723)

$

$

Not available

65

Electrolux/AYP 197480

O-Ring
(Superseded to 532197480)

$7.49

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 407493X005

Wheel Adjusting Bracket, LH
(Superseded to 532407493)

$

$

Not available

69

Electrolux/AYP 197991

Clip, Cable
(Superseded to 532197991)

$7.49

$

In Stock, Qty 6

0

71

Electrolux/AYP 420474X004

Belt Keeper
(Superseded to 532425711)

$

$

Not available

75

Electrolux/AYP 186159

Screw
(Superseded to 532186159)

$4.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 180331

Key
(Superseded to 532180331)

$8.99

$

In Stock, Qty 10

0

77

Electrolux/AYP 194848

Nut, Cap
(Superseded to 532194848)

$7.49

$

Usually ships in 3-10 days

0

78

Electrolux/AYP 189686

Key Start Switch
(Superseded to 532189686)

$47.99

$

In Stock, only 1 left!

0

79

Electrolux/AYP 409567

Wiring Harness
(Superseded to 532409567)

$66.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 404764

Warning Decal
(Superseded to 532404764)

Note: (not shown)

$8.99

$

Usually ships in 3-10 days

0

79

Electrolux/AYP 193733

Operator's Manual, English
(Superseded to 917193733)

$

$

Not available

79

Electrolux/AYP 193736

Operator's Manual, French

$

$

Not available

79

Electrolux/AYP 433050

Repair Parts Manual

$2.49

$

Usually ships in 3-10 days

0
