XT 625Y22RKP (961420043-01) - Poulan Pro XT Walk-Behind Mower (2007-04) Drive Parts Diagram

XT Walk-Behind Mower

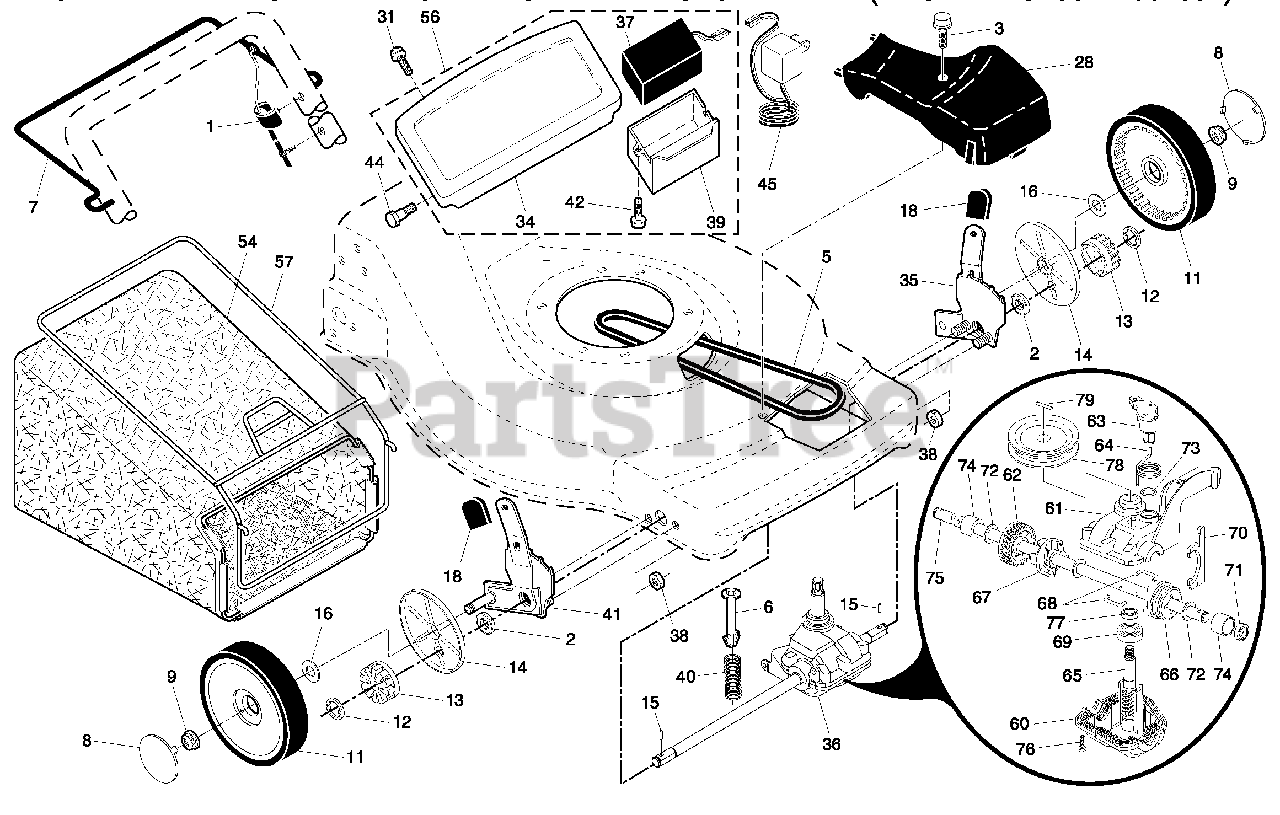

Drive Parts Diagram

  • Title

1

Electrolux/AYP 194653

Drive Control Assembly
(Superseded to 532194653)

Note: (Includes Cable)

$26.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 191039

Bearing, Wheel Adjuster
(Superseded to 587070202)

$14.99

$

In Stock, Qty 15

0

3

Electrolux/AYP 175262

Pan Head Tapping Screw #10-24 x 2-3/4
(Superseded to 532175262)

$7.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 146527

V-Belt

$

$

Not available

6

Electrolux/AYP 150495

Retainer, Spring
(Superseded to 532150495)

$7.49

$

In Stock, only 1 left!

0

7

Electrolux/AYP 194185X428

Bar, Drive Control
(Superseded to 532198453)

$37.99

$

Usually ships in 3-10 days

0

8

Electrolux/AYP 407793X427

Hubcap
(Superseded to 583744301)

$4.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 409149

Locknut, Hex
(Superseded to 532409149)

$4.99

$

In Stock, Qty 20+

0

11

Electrolux/AYP 180773

Wheel & Tire Assembly, Front
(Superseded to 532180773)

$47.99

$

In Stock, only 1 left!

0

12

Electrolux/AYP 12000058

E-Ring
(Superseded to 812000058)

$3.99

$

Usually ships in 3-10 days

0

13

Electrolux/AYP 403849

Pinion
(Superseded to 532403849)

$6.99

$

In Stock, Qty 8

0

14

Electrolux/AYP 189403

Dust Cover
(Superseded to 581840401)

$6.99

$

In Stock, Qty 5

0

15

Electrolux/AYP 191017

Pawl, Drive
(Superseded to 532404845)

$5.99

$

In Stock, Qty 6

0

16

Electrolux/AYP 67725

Washer, Flat 3/8
(Superseded to 532067725)

$7.49

$

In Stock, Qty 20+

0

18

Electrolux/AYP 701037

Selector Knob
(Superseded to 532701037)

$5.99

$

In Stock, only 4 left!

0

28

Electrolux/AYP 401271X428

Drive Cover
(Superseded to 532403342)

$

$

Not available

31

Electrolux/AYP 141841

Screw, Trimplate
(Superseded to 532141841)

$7.49

$

In Stock, only 2 left!

0

34

Electrolux/AYP 411190

Trimplate
(Superseded to 532411190)

$37.99

$

Usually ships in 3-10 days

0

35

Electrolux/AYP 408862

Kit, Wheel Adjuster, LH
(Superseded to 532438485)

Note: (Includes Knob and Bearing)

$44.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 199206

Gear Case Assembly, Complete
(Superseded to 532415226)

$84.99

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 189589

Battery
(Superseded to 584353901)

$103.99

$

Usually ships in 3-10 days

0

38

Electrolux/AYP 73800400

Locknut 1/4-20
(Superseded to 873800400)

$3.99

$

Usually ships in 3-10 days

0

39

Electrolux/AYP 186237

Battery Box
(Superseded to 532186237)

$7.49

$

Usually ships in 3-10 days

0

40

Electrolux/AYP 137090

Spring
(Superseded to 532137090)

$6.49

$

In Stock, only 1 left!

0

41

Electrolux/AYP 408861

Kit, Wheel Adjuster, RH
(Superseded to 532438486)

Note: (Includes Knob and Bearing)

$44.99

$

In Stock, only 1 left!

0

42

Electrolux/AYP 17411308

Screw, Battery Box
(Superseded to 817411308)

$6.49

$

In Stock, only 1 left!

0

44

Electrolux/AYP 175551

Screw, Trimplate
(Superseded to 532175551)

$4.99

$

Usually ships in 3-10 days

0

45

Electrolux/AYP 190097

Charger, Battery
(Superseded to 597186301)

$37.99

$

In Stock, Qty 7

0

54

Electrolux/AYP 412357

Grassbag Assembly

$

$

Not available

56

Electrolux/AYP 191252

Trimplate, Battery Box and Battery Assembly
(Superseded to 532191252)

$78.99

$

Usually ships in 3-10 days

0

57

Electrolux/AYP 407454

Frame, Grassbag
(Superseded to 532411952)

$

$

Not available

60

Electrolux/AYP 183497

Case, Lower
(Superseded to 532183497)

$15.99

$

In Stock, only 1 left!

0

61

Electrolux/AYP 183498

Case, Upper
(Superseded to 532183498)

$15.99

$

Usually ships in 3-10 days

0

62

Electrolux/AYP 183499

Gear, 27 Teeth
(Superseded to 532183499)

$17.99

$

Usually ships in 3-10 days

0

63

Electrolux/AYP 183500

Lever, Clutch
(Superseded to 532183500)

$6.49

$

Usually ships in 3-10 days

0

64

Electrolux/AYP 183501

Spring, Return
(Superseded to 532183501)

$6.49

$

Usually ships in 3-10 days

0

65

Electrolux/AYP 183502

Shaft, Input
(Superseded to 532183502)

$30.99

$

In Stock, only 1 left!

0

66

Electrolux/AYP 183503

Dog, Movable
(Superseded to 532183503)

$6.49

$

Usually ships in 3-10 days

0

67

Electrolux/AYP 183504

Dog, Fixed
(Superseded to 532183504)

$4.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 183505

Wire, Formed
(Superseded to 532183505)

$6.99

$

Usually ships in 3-10 days

0

69

Electrolux/AYP 183506

Bearing, Ball
(Superseded to 532183506)

$8.99

$

Usually ships in 3-10 days

0

70

Electrolux/AYP 183507

Fork, Shift
(Superseded to 532183507)

$9.99

$

Usually ships in 3-10 days

0

71

Electrolux/AYP 183508

Seal, Output Shaft
(Superseded to 532183508)

$11.99

$

In Stock, only 1 left!

0

72

Electrolux/AYP 183509

Washer
(Superseded to 532183509)

$6.49

$

Usually ships in 3-10 days

0

73

Electrolux/AYP 183510

Seal, Case
(Superseded to 532183510)

$6.49

$

Usually ships in 3-10 days

0

74

Electrolux/AYP 183511

Bushing
(Superseded to 532183511)

$5.99

$

Usually ships in 3-10 days

0

75

Electrolux/AYP 196561

Shaft, Output
(Superseded to 532196561)

$54.99

$

Usually ships in 3-10 days

0

76

Electrolux/AYP 183513

Screw
(Superseded to 532183513)

$4.99

$

Usually ships in 3-10 days

0

77

Electrolux/AYP 183514

Seal, Input Shaft
(Superseded to 532183514)

$7.99

$

In Stock, only 2 left!

0

78

Electrolux/AYP 199852

Pulley, Drive
(Superseded to 532199852)

$30.99

$

In Stock, only 1 left!

0

79

Electrolux/AYP 199419

Pin, Retainer
(Superseded to 532199419)

$8.99

$

Usually ships in 3-10 days

0
