XT 400 - Weed Eater String Trimmer, Type 4 Engine Assembly Type 4 Parts Diagram

String Trimmer, Type 4

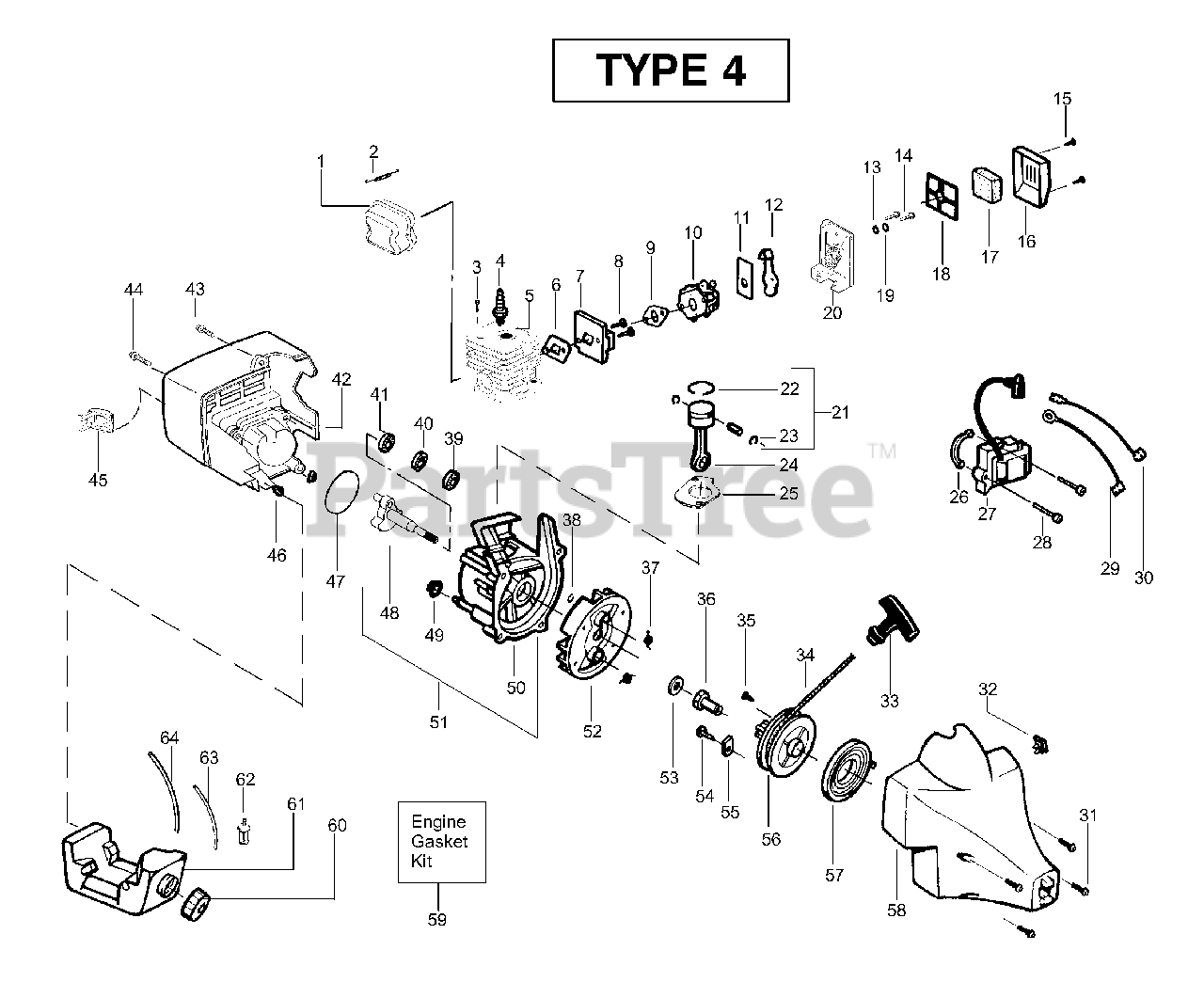

Engine Assembly Type 4 Parts Diagram

  • Title

1

Poulan 530071396

Kit - Muffler

Note: (Incl. 2 & spark arrestor screen)

$

$

Not available

2

Poulan 530042088

Muffler Spring

$3.99

$

In Stock, only 1 left!

0

3

Poulan 530015953

Screw-Cylinder

$6.49

$

In Stock, Qty 7

0

4

Poulan 952030249

Spark Plug (RCJ 6Y)

$4.99

$

In Stock, Qty 20+

0

5

Poulan 530071359

Kit - Cylinder
(Superseded to 582144301)

$

$

Not available

6

Poulan 530071363

Gasket-Cyl/Carb.(kit)

$

$

Not available

7

Poulan 530056404

Adaptor-carb.
(Superseded to 545030403)

$

$

Not available

8

Poulan 530016014

Screw

$6.49

$

In Stock, only 3 left!

0

9

Poulan 530071363

Gasket-Carb.(kit)

$

$

Not available

10

Poulan 530069754

Kit - Carburetor Ass'y

Note: (Incl. Limiter Cap)

$68.99

$

Usually ships in 3-10 days

0

11

Poulan 530038747

Plate-Choke Mounting

$3.99

$

In Stock, only 3 left!

0

12

Poulan 530035499

Lever-Choke

$

$

Not available

13

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

14

Poulan 530016353

Screw

$4.99

$

Usually ships in 3-10 days

0

15

Poulan 530015892

Screw

$6.49

$

In Stock, Qty 20+

0

16

Poulan 530054414

Cover-Air Box

$6.49

$

In Stock, only 1 left!

0

17

Poulan 530036575

Foam-Air Filter

$5.99

$

In Stock, only 2 left!

0

18

Poulan 530036569

Plate-Air Filter Support

$

$

Not available

19

Poulan 530015852

Spacer-Choke

$3.49

$

In Stock, only 1 left!

0

20

Poulan 530052431

Box-Air

$

$

Not available

21

Poulan 530071357

Kit - Piston
(Superseded to 530071833)

Note: (Incl. 22, 23)

$37.99

$

Usually ships in 3-10 days

0

22

Poulan 530055120

Piston Ring
(Superseded to 545154001)

$4.99

$

In Stock, only 2 left!

0

23

Poulan 530015162

Retainer-Piston Pin

$6.49

$

In Stock, only 1 left!

0

24

Poulan 530069945

Assy-Connecting Rod
(Superseded to 530049817)

$13.99

$

Usually ships in 3-10 days

0

25

Poulan 530071363

Gasket-Cylinder(kit)

$

$

Not available

26

Poulan 530036145

Spacer-Module

$3.99

$

In Stock, only 3 left!

0

27

Poulan 530039211

Ignition Module
(Superseded to 501092801)

$24.99

$

Usually ships in 3-10 days

0

28

Poulan 530015954

Screw

$4.99

$

Usually ships in 3-10 days

0

29

Poulan 530054448

Assy-Ground Wire

$

$

Not available

30

Poulan 530054449

Assy-Leadwire

$

$

Not available

31

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

32

Poulan 530069572

Kit-Switch

$9.49

$

In Stock, only 3 left!

0

33

Poulan 530027569

Handle-Starter

$6.49

$

Usually ships in 3-10 days

0

34

Poulan 530071325

Kit - Rope

$

$

Not available

35

Poulan 530016326

Screw

$

$

Not available

36

Poulan 530027953

Coupling-Drive

$

$

Not available

37

Poulan 530023817

Spring-Starter Dog

$6.49

$

In Stock, Qty 5

0

38

Poulan 530015941

Retain. Ring-C'shaft

$4.99

$

Usually ships in 3-10 days

0

39

Poulan 530055128

Bearing-Outer

$4.99

$

In Stock, only 2 left!

0

40

Poulan 530071615

Kit-Seal-C'case

$7.49

$

Usually ships in 3-10 days

0

41

Poulan 530032125

Bearing-Inner
(Superseded to 738210101)

$18.99

$

Usually ships in 3-10 days

0

42

Poulan 530056943

Shroud

$

$

Not available

43

Poulan 530015880

Screw

$4.99

$

In Stock, Qty 8

0

44

Poulan 530015810

Screw
(Superseded to 530016386)

$8.99

$

In Stock, only 1 left!

0

45

Poulan 530054536

Guard-Muffler

$

$

Not available

46

Poulan 530036793

Isolator-Shroud

$

$

Not available

47

Poulan 530071363

O-Ring-C'case(kit)

$

$

Not available

48

Poulan 530012413

Assy-Crankshaft

$18.99

$

Usually ships in 3-10 days

0

49

Poulan 530036792

Isolator-Crankcase

$7.49

$

Usually ships in 3-10 days

0

50

Poulan 530012491

Assy-Crankcase
(Superseded to 530071627)

Note: (Incl. 39-41)

$

$

Not available

51

Poulan 530071337

Assy-C'case & C'shaft

Note: (Incl. 38,48,50)

$

$

Not available

52

Poulan 530069886

Assy-Flywheel
(Superseded to 545221701)

$28.99

$

In Stock, only 1 left!

0

53

Poulan 530015828

Washer-Flat

$4.99

$

Usually ships in 3-10 days

0

54

Poulan 530015775

Screw

$6.49

$

In Stock, only 2 left!

0

55

Poulan 530053985

Retainer-Can

$1.49

$

In Stock, only 1 left!

0

56

Poulan 530071324

Kit-Starter Pulley

Note: (Incl. 35)

$9.99

$

Usually ships in 3-10 days

0

57

Poulan 530042086

Spring-Starter
(Superseded to 545008011)

$10.99

$

In Stock, Qty 7

0

58

Poulan 530071415

Assy-Fan Housing

$18.99

$

Usually ships in 3-10 days

0

59

Poulan 530071363

Kit-Engine Gasket

Note: (Incl. 6,9,25,47)

$

$

Not available

60

Poulan 530014347

Assy-Fuel Cap

$9.49

$

In Stock, Qty 15

0

61

Poulan 530049299

Assy-Fuel Tank

Note: (Incl. cap,filter,lines)

$

$

Not available

62

Poulan 530095646

Assy-Fuel Pickup

$6.99

$

In Stock, Qty 20+

0

63

Poulan 530069247

Kit-Fuel Line

$7.99

$

In Stock, Qty 20+

0

64

Poulan 530069216

Kit-Fuel Line

$11.99

$

In Stock, Qty 20+

0
