XT 200 - Weed Eater String Trimmer, Type 2 Handle, Chassis & Bar Assembly Type 2 & 3 Parts Diagram

String Trimmer, Type 2

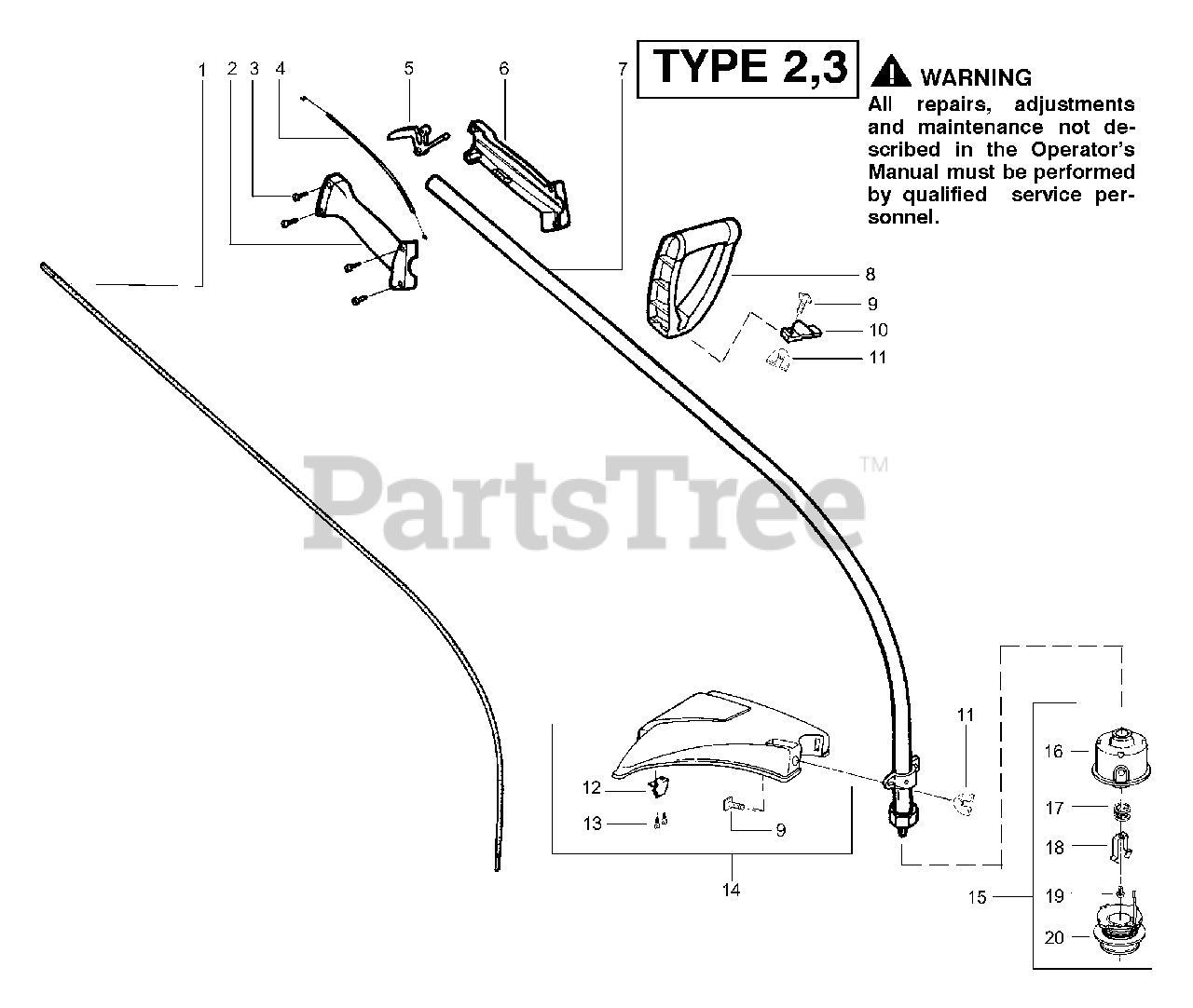

Handle, Chassis & Bar Assembly Type 2 & 3 Parts Diagram

  • Title

1

Poulan 530095613

Shaft-Flex

$8.49

$

Usually ships in 3-10 days

0

2

Poulan 530038581

Throttle Hsg. (Right)

$6.49

$

In Stock, only 1 left!

0

3

Poulan 530016349

Screw-Throttle Hsg.

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530071548

Kit-Throttle Cable Ass'y.

$

$

Not available

5

Poulan 530038682

Trigger

$3.49

$

In Stock, Qty 5

0

6

Poulan 530038580

Throttle Hsg. (Left)

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530069883

Drive Shaft Hsg. Ass'y
(Superseded to 530071425)

$

$

Not available

8

Poulan 530038708

Assist Handle

$

$

Not available

9

Poulan 530015820

Bolt-Handle/Shield

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530094742

Clamp-Handle Assist

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530016118

Wingnut-Handle/Shield
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

12

Poulan 530052286

Line Limiter

$

$

Not available

13

Poulan 530015886

Screw-Line Limiter

$6.49

$

In Stock, only 3 left!

0

14

Poulan 530069759

Kit-Shield Ass'y.

Note: (Incl. 9,11,12,13)

$21.99

$

Usually ships in 3-10 days

0

15

Poulan 952711593

Accy-Cutting Head Ass'y.

Note: (Incl. 16-20)

$

$

Not available

16

Poulan 530095770

Assy-Hub

$20.99

$

Usually ships in 3-10 days

0

17

Poulan 530401958

Spring-Compression

$4.99

$

In Stock, Qty 6

0

18

Poulan 530401957

Clip-Retainer-Head

$4.99

$

In Stock, only 4 left!

0

19

Poulan 530401467

Screw w/ Washer-Head

$

$

Not available

20

Poulan 952711594

Accy-Spool w/Line

$6.49

$

Usually ships in 3-10 days

0

Poulan 530163333

Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055350

Shaft Warning Decal

Note: Not Shown

$

$

Not available

Poulan 530054864

Decal-Start Inst.

Note: Not Shown

$2.49

$

Usually ships in 3-10 days

0
