XT 200 - Weed Eater String Trimmer, Type 1 Handle, Chassis & Bar Assembly Type 1 Parts Diagram

String Trimmer, Type 1

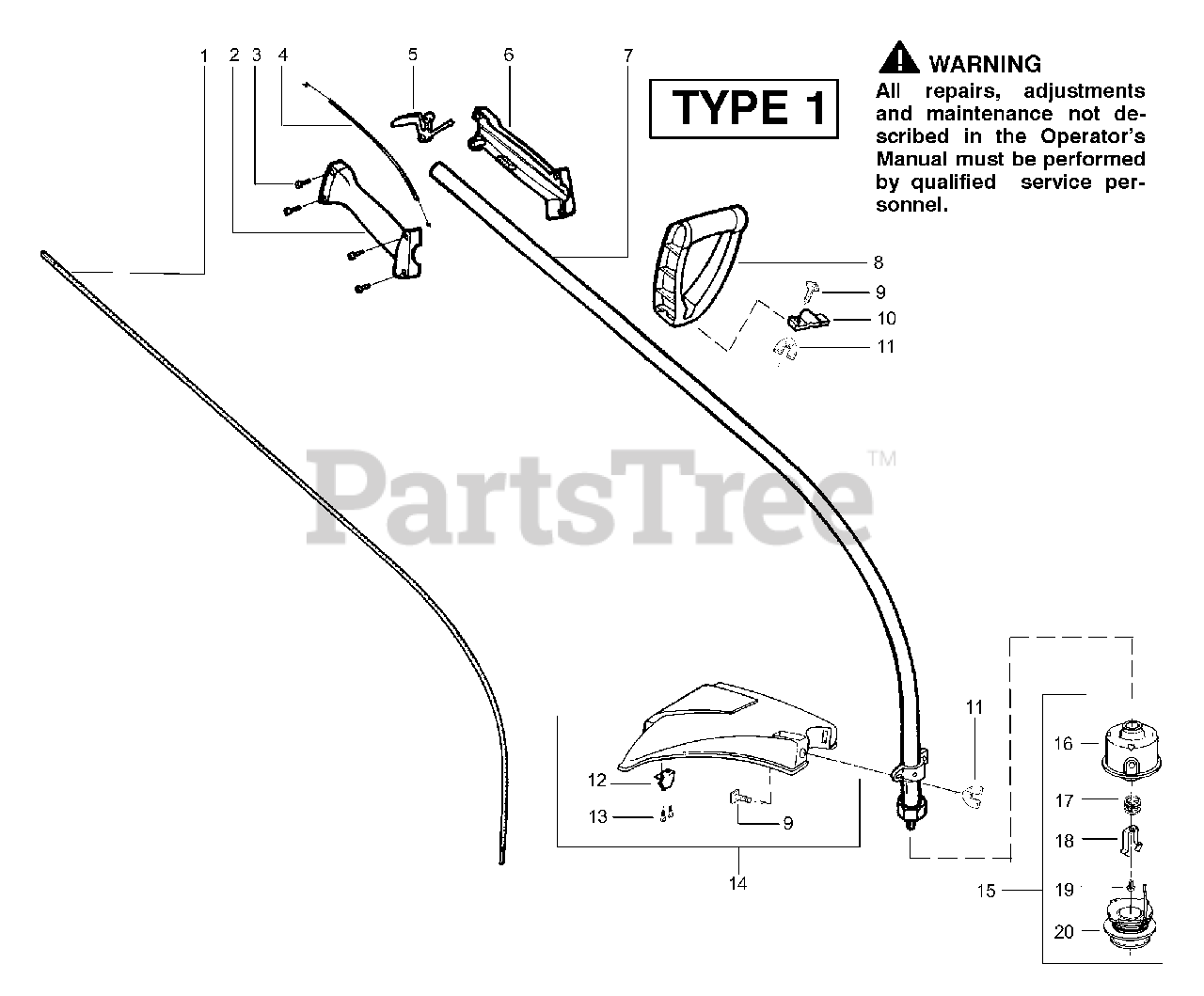

Handle, Chassis & Bar Assembly Type 1 Parts Diagram

  • Title

1

Poulan 530095613

Shaft-Flex

$8.49

$

Usually ships in 3-10 days

0

2

Poulan 530038581

Throttle Hsg. (Right)

$6.49

$

In Stock, only 1 left!

0

3

Poulan 530016349

Screw-Throttle Hsg.

$6.49

$

In Stock, only 2 left!

0

4

Poulan 530071548

Kit-Throttle Cable Ass'y.

$

$

Not available

5

Poulan 530038682

Trigger

$3.49

$

In Stock, Qty 5

0

6

Poulan 530038580

Throttle Hsg. (Left)

$6.49

$

Usually ships in 3-10 days

0

7

Poulan 530071425

Drive Shaft Hsg. Ass'y
(Superseded to 530071311)

$

$

Not available

8

Poulan 530038708

Assist Handle

$

$

Not available

9

Poulan 530015820

Bolt-Handle/Shield

$4.99

$

In Stock, only 1 left!

0

10

Poulan 530094742

Clamp-Handle Assist

$4.99

$

Usually ships in 3-10 days

0

11

Poulan 530016118

Wingnut-Handle/Shield
(Superseded to 530091373)

$2.49

$

In Stock, only 1 left!

0

12

Poulan 530052287

Line Limiter

$4.99

$

In Stock, only 2 left!

0

13

Poulan 530015966

Screw-Line Limiter

$2.49

$

Usually ships in 3-10 days

0

14

Poulan 530069686

Kit-Shield Ass'y.

Note: (Incl. 9,11,12,13)

$

$

Not available

15

Poulan 952701666

Cutting Head Ass'y.
(Superseded to 590267601)

Note: (Incl. 16-20)

$32.99

$

In Stock, only 2 left!

0

16

Poulan 530069690

Kit-Hub Ass'y

$

$

Not available

17

Poulan 530401464

Spring-Compression

$

$

Not available

18

Poulan 530401466

Clip-Retainer-Head

$3.99

$

In Stock, Qty 9

0

19

Poulan 530401467

Screw w/ Washer-Head

$

$

Not available

20

Poulan 952711527

Spool w/Line

$

$

Not available

Poulan 530088137

Manual

Note: Not Shown

$4.99

$

Usually ships in 3-10 days

0

Poulan 530055350

Shaft Warning Decal

Note: Not Shown

$

$

Not available

Poulan 530055162

Stop Decal

Note: Not Shown

$

$

Not available
