XT 195H42 LT (960420072-00) - Poulan Pro Lawn Tractor (2008-10) Chassis Parts Diagram

Lawn Tractor

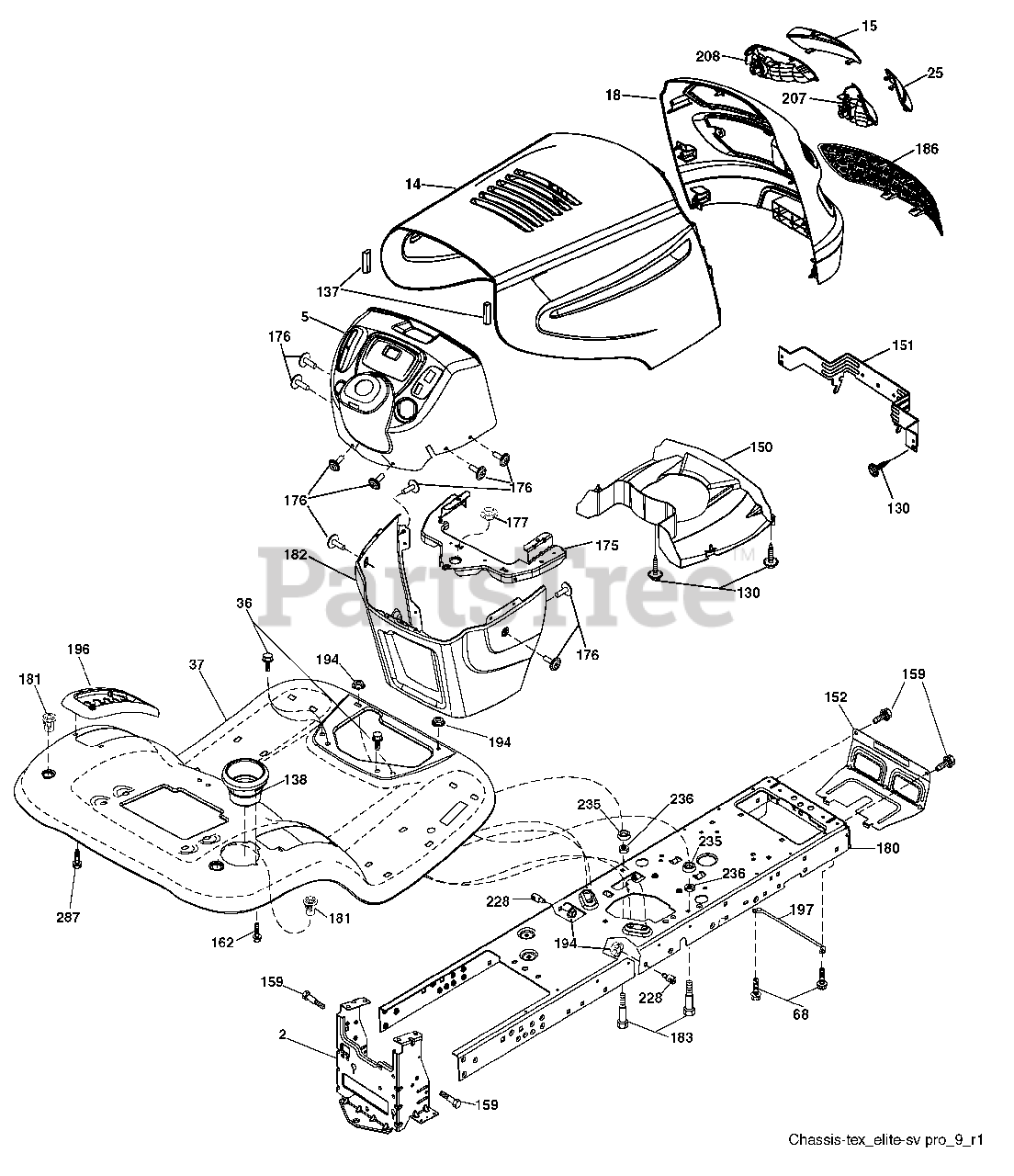

Chassis Parts Diagram

  • Title

2

Electrolux/AYP 194263

Drawbar
(Superseded to 532194263)

$74.99

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 197783X428

Dash
(Superseded to 532411764)

$66.99

$

Usually ships in 3-10 days

0

14

Electrolux/AYP 183393X505

Hood
(Superseded to 532194690)

$80.99

$

Usually ships in 3-10 days

0

15

Electrolux/AYP 183834X599

Lens Grille LH
(Superseded to 183834599)

$

$

Not available

18

Electrolux/AYP 197482

Grille Asm
(Superseded to 583239101)

$151.99

$

Usually ships in 3-10 days

0

25

Electrolux/AYP 183835X599

Lens Grille RH
(Superseded to 183835599)

$14.99

$

Usually ships in 3-10 days

0

36

Electrolux/AYP 17060512

Screw 5/16-18 x 3/4
(Superseded to 583607701)

$7.49

$

Usually ships in 3-10 days

0

37

Electrolux/AYP 414872X505

Fender
(Superseded to 532424739)

$132.99

$

Usually ships in 3-10 days

0

68

Electrolux/AYP 17490508

Screw Thdrol 5/16-18 x 1/2
(Superseded to 817490508)

$6.49

$

Usually ships in 3-10 days

0

130

Electrolux/AYP 416358

Screw #10 x 0.750 ROS Thread
(Superseded to 596321701)

$3.99

$

In Stock, Qty 15

0

137

Electrolux/AYP 184921

Bumper Hood
(Superseded to 532184921)

$7.49

$

In Stock, Qty 9

0

138

Electrolux/AYP 193224X428

Cupholder
(Superseded to 532409730)

$7.99

$

Usually ships in 3-10 days

0

150

Electrolux/AYP 184322

Duct Heat Hood
(Superseded to 583133101)

$34.99

$

Usually ships in 3-10 days

0

151

Electrolux/AYP 407807

Bracket Pivot
(Superseded to 532407807)

$31.99

$

Usually ships in 3-10 days

0

152

Electrolux/AYP 194329

Shield Browning/Debris
(Superseded to 532194329)

$20.99

$

Usually ships in 3-10 days

0

159

Electrolux/AYP 17000612

Screw Hexwsh Thdrol 3/8-16 x 3/4
(Superseded to 817000612)

$4.99

$

In Stock, only 2 left!

0

162

Electrolux/AYP 142432

Screw Hex Wsh Hi-Lo 1/4 x 1/2
(Superseded to 532142432)

$6.49

$

Usually ships in 3-10 days

0

175

Electrolux/AYP 193243

Crossmember
(Superseded to 532193243)

$27.99

$

Usually ships in 3-10 days

0

176

Electrolux/AYP 400776

Screw 10-24 x 5/8 Wshd Qdrx
(Superseded to 532400776)

$10.99

$

Usually ships in 3-10 days

0

177

Electrolux/AYP 195228

Bushing Steering
(Superseded to 532195228)

$5.99

$

Usually ships in 3-10 days

0

180

Electrolux/AYP 194260

Chassis

$94.99

$

Usually ships in 3-10 days

0

181

Electrolux/AYP 193102X428

Bushing Mtg. Fender Crgo.
(Superseded to 532404796)

$

$

Not available

182

Electrolux/AYP 193057

Dash Lower
(Superseded to 532193057)

$96.99

$

Usually ships in 3-10 days

0

183

Electrolux/AYP 74780520

Bolt Fin Hex 5/16-18 x 1-1/4
(Superseded to 874520520)

$4.99

$

Usually ships in 3-10 days

0

186

Electrolux/AYP 183829X428

Insert Grille

$

$

Not available

194

Electrolux/AYP 73900500

Nut Lock Hex Flange 5/16-18
(Superseded to 596135701)

$3.99

$

In Stock, only 2 left!

0

196

Electrolux/AYP 414579

Console Asm. Deck Lift
(Superseded to 532414579)

$37.99

$

In Stock, only 1 left!

0

197

Electrolux/AYP 409167

Rod Pivot Chassis
(Superseded to 532409167)

$13.99

$

In Stock, only 2 left!

0

207

Electrolux/AYP 183833

Bezel Grille RH
(Superseded to 532183833)

$

$

Not available

208

Electrolux/AYP 183832

Bezel Grille LH
(Superseded to 532183832)

$

$

Not available

228

Electrolux/AYP 195161

Stud Fastener
(Superseded to 532195161)

$

$

Not available

235

Electrolux/AYP 406129

Spacer Fender
(Superseded to 532406129)

$4.99

$

Usually ships in 3-10 days

0

236

Electrolux/AYP 73930500

Nut Center Lock 5/16-18
(Superseded to 873930500)

$7.49

$

In Stock, only 1 left!

0

287

Electrolux/AYP 17600406

Screw Hex Washead 1/4-20 x 3/8
(Superseded to 817600406)

$6.49

$

Usually ships in 3-10 days

0
