XT 11530 ES (961920035-02) - Poulan Pro XT Snow Thrower (2010-06) Handles Parts Diagram

XT Snow Thrower

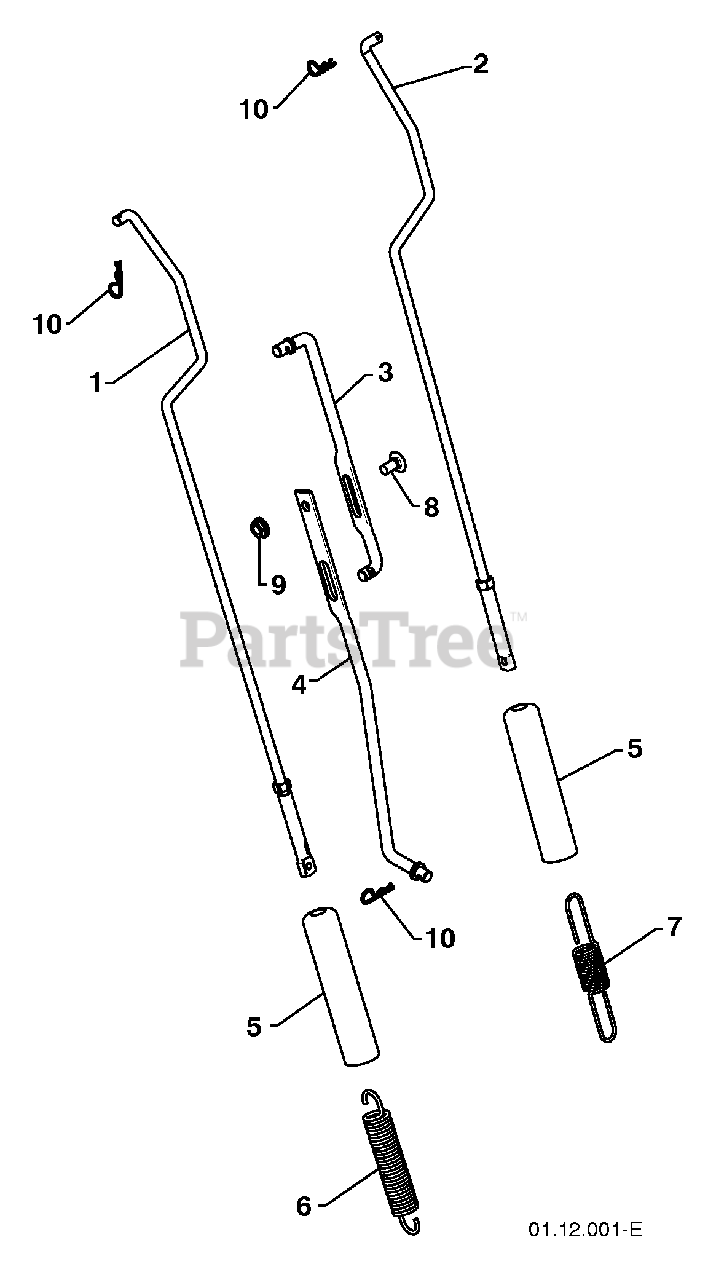

Handles Parts Diagram

  • Title
1

Electrolux/AYP 180480

IMPELLER ROD
(Superseded to 532180480)

$

$

Not available

2

Electrolux/AYP 405740

TRACTION ROD
(Superseded to 532405740)

$

$

Not available

3

Electrolux/AYP 180445

SHIFTER ROD TOP
(Superseded to 532180445)

$39.99

$

In Stock, Qty 5

0

4

Electrolux/AYP 187716

SHIFTER ROD BOTTOM
(Superseded to 532187716)

$

$

Not available

5

Electrolux/AYP 180447

SPRING SLEEVE
(Superseded to 532180447)

$6.99

$

In Stock, only 2 left!

0

6

Electrolux/AYP 178669

IMPELLER SPRING
(Superseded to 532178669)

$9.49

$

In Stock, Qty 5

0

7

Electrolux/AYP 180926

TRACTION SPRING
(Superseded to 532180926)

$7.49

$

In Stock, Qty 7

0

8

Electrolux/AYP 72270505

CARRIAGE BOLT 5/16-18 X .625
(Superseded to 872270505)

$10.99

$

Usually ships in 3-10 days

0

9

Electrolux/AYP 155377

NUT 5/16-18
(Superseded to 532155377)

$6.49

$

Usually ships in 3-10 days

0

10

Electrolux/AYP 169675

RETAINER
(Superseded to 532169675)

$7.49

$

In Stock, only 2 left!

0
