XT 11530 ES (961920035-01) - Poulan Pro XT Snow Thrower (2009-10) Control Panel / Discharge Chute Parts Diagram

XT Snow Thrower

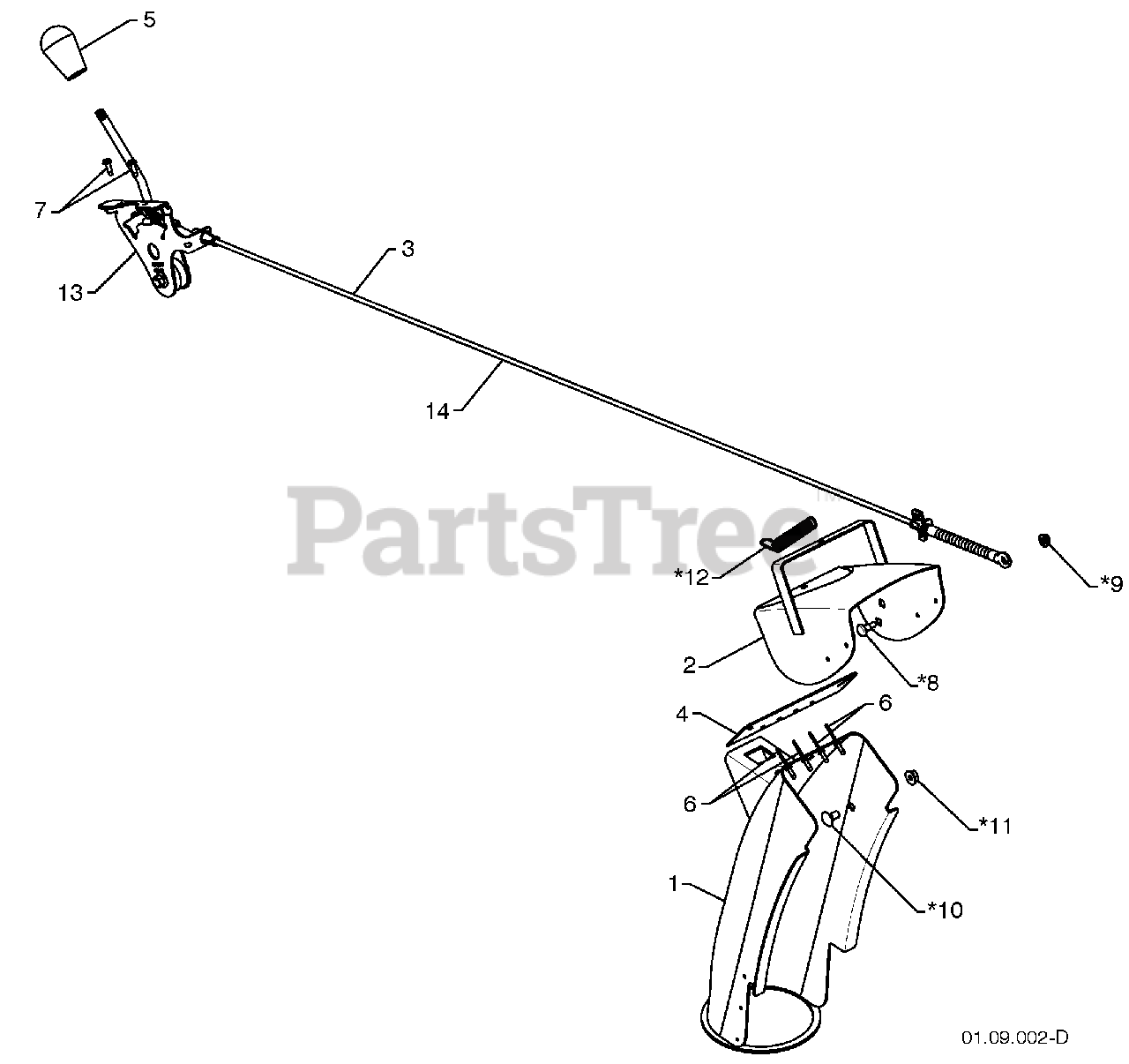

Control Panel / Discharge Chute Parts Diagram

  • Title
1

Electrolux/AYP 420315X505

CHUTE WELDMENT
(Superseded to 532430000)

$47.99

$

Usually ships in 3-10 days

0

2

Electrolux/AYP 178633X505

DEFLECTOR WELDMENT
(Superseded to 588077804)

$

$

Not available

3

Electrolux/AYP 420673

DEFLECTOR CONTROL ASSEMBLY
(Superseded to 585271701)

$80.99

$

In Stock, only 2 left!

0

4

Electrolux/AYP 420325

DEFLECTOR SEAL
(Superseded to 532420325)

$7.49

$

Usually ships in 3-10 days

0

5

Electrolux/AYP 414280

KNOB BLACK
(Superseded to 532414280)

$7.99

$

Usually ships in 3-10 days

0

6

Electrolux/AYP 128415

POP RIVET
(Superseded to 532128415)

$4.99

$

Usually ships in 3-10 days

0

7

Electrolux/AYP 17501010

SCREW 10-24 X .625
(Superseded to 817501010)

$

$

Not available

8

Electrolux/AYP 179829

SHOULDER SCREW
(Superseded to 532179829)

$6.49

$

In Stock, Qty 10

0

9

Electrolux/AYP 191730

NUT 1/4-20
(Superseded to 532191730)

$7.49

$

In Stock, Qty 5

0

10

Electrolux/AYP 72250505

CARRIAGE BOLT 5/16-18 X .50
(Superseded to 872250505)

$8.99

$

Usually ships in 3-10 days

0

11

Electrolux/AYP 751153

NUT 5/16-18
(Superseded to 532426589)

$6.49

$

In Stock, Qty 15

0

12

Electrolux/AYP 184505

DEFLECTOR SPRING
(Superseded to 532184505)

$7.99

$

In Stock, Qty 8

0

13

Electrolux/AYP 420679

DEFLECTOR CONTROL HEAD
(Superseded to 532420679)

$80.99

$

In Stock, only 2 left!

0

14

Electrolux/AYP 420672

DEFLECTOR CONTROL CABLE

$

$

Not available
