XR 95 - Weed Eater String Trimmer CARBURETOR WA-149 & WA-79 BREAKDOWN Parts Diagram

String Trimmer

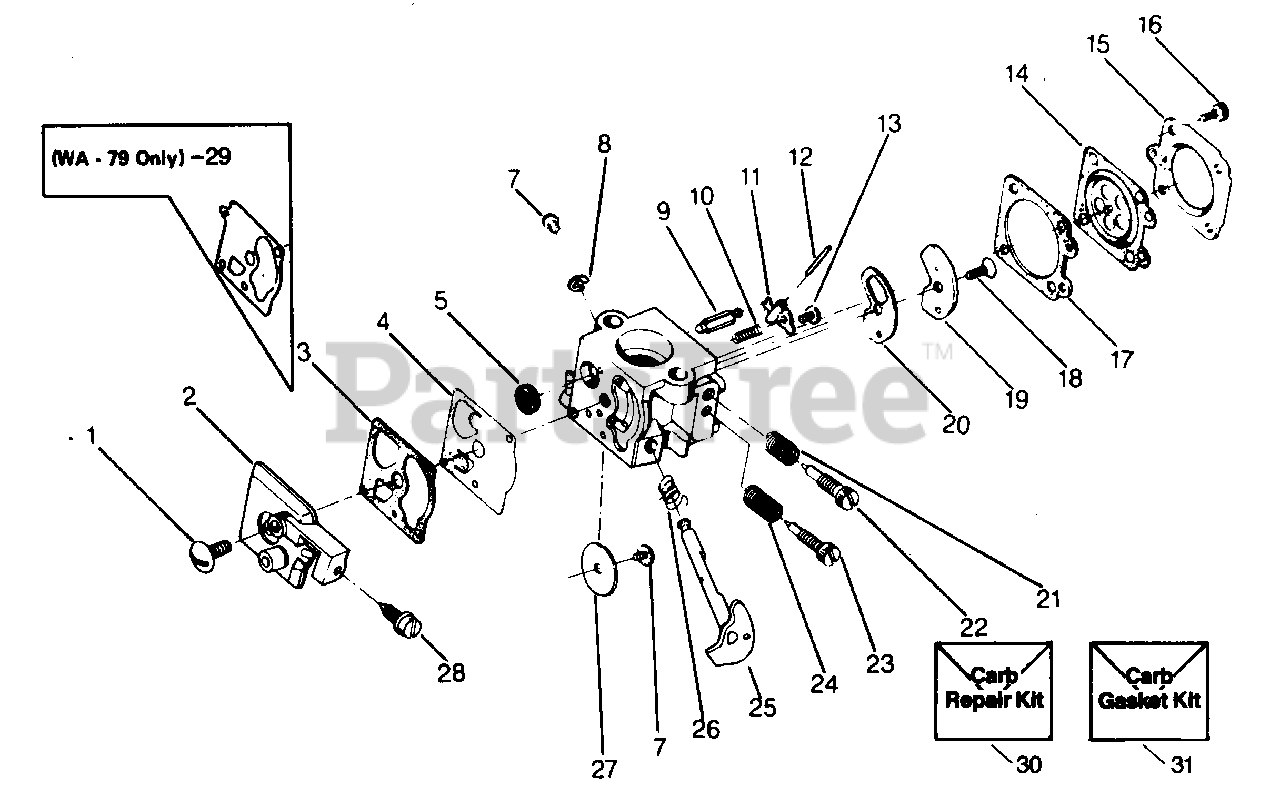

CARBURETOR WA-149 & WA-79 BREAKDOWN Parts Diagram

  • Title

1

Poulan 530035017

Screw - Pump Cover

$0.99

$

Usually ships in 3-10 days

0

2

Pump Cover Ass y. (Inc.28)

$

$

Not available

2

Poulan 530035191

WA-149 (#35183)

$3.99

$

Usually ships in 3-10 days

0

2

Poulan 530035154

WA-79

$

$

Not available

3

Gasket - Pump

$

$

Not available

3

Poulan 530035164

WA-149 (#35183)
(Superseded to 504130906)

$11.99

$

In Stock, only 3 left!

0

3

Poulan 530035009

WA-79

$

$

Not available

4

Diaphragm - Pump

$

$

Not available

4

Poulan 530035166

WA-149 (#35183)
(Superseded to 504130807)

$31.99

$

In Stock, Qty 6

0

4

Poulan 530035152

WA-79

$8.49

$

In Stock, only 2 left!

0

5

Poulan 530035178

Screen-Inlet

Note: Included in Carburetor Kwik Repair Kit.

$3.99

$

Usually ships in 3-10 days

0

7

Poulan 530035015

Screw - Throttle Shaft

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

8

Poulan 530035007

Clip - Throttle Shaft

$

$

Not available

9

Poulan 530035106

Valve - Inlet Needle
(Superseded to 503117001)

Note: Included in Carburetor Kwik Repair Kit.

$22.99

$

In Stock, Qty 8

0

10

Poulan 530035139

Spring - Metering Lever
(Superseded to 530035188)

Note: Included in Carburetor Kwik Repair Kit.

$4.99

$

In Stock, Qty 10

0

11

Poulan 530035031

Lever - Metering
(Superseded to 505520127)

Note: Included in Carburetor Kwik Repair Kit.

$5.99

$

Usually ships in 3-10 days

0

12

Poulan 530035028

Pin - Metering Lever
(Superseded to 505520125)

Note: Included in Carburetor Kwik Repair Kit.

$7.99

$

In Stock, only 3 left!

0

13

Poulan 530035016

Screw - Metering Lever Pin

$7.99

$

In Stock, Qty 6

0

14

Poulan 530035014

Diaphragm Assembly - Metering
(Superseded to 503896701)

$51.99

$

In Stock, Qty 10

0

15

Poulan 530035149

Cover - Metering Diaphragm

$

$

Not available

16

Poulan 530035153

Screw Assembly - Metering Cover & Throttle Shaft Clip

$

$

Not available

17

Poulan 530035151

Gasket - Metering Diaphragm

$3.99

$

In Stock, Qty 8

0

18

Poulan 530035137

Screw - Circuit Plate

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

19

Poulan 530035042

Plate - Circuit

$

$

Not available

20

Poulan 530035147

Gasket - Circuit Plate
(Superseded to 501781301)

$

$

Not available

21

Poulan 530035036

Spring - Hi Speed Needle

$

$

Not available

22

Poulan 530035142

Needle - Hi Speed
(Superseded to 501782201)

$

$

Not available

23

Poulan 530035141

Needle - Idle

$2.99

$

Usually ships in 3-10 days

0

24

Poulan 530035023

Spring - Idle Needle
(Superseded to 501467301)

$0.99

$

Usually ships in 3-10 days

0

25

Poulan 530035132

Shaft Assembly - Throttle

$

$

Not available

26

Poulan 530035138

Spring - Throttle Return

$

$

Not available

27

Poulan 530035133

Valve - Throttle

$

$

Not available

28

Poulan 530035156

Screw - Idle Adjustment

$1.99

$

Usually ships in 3-10 days

0

29

Poulan 530035135

Diaphragm - Pump (WA-79 only)

$

$

Not available

30

Kit - Carb. Kwik Repair

$

$

Not available

30

Poulan 530035144

WA-79

$33.99

$

In Stock, only 1 left!

0

30

Poulan 530035185

WA-149 (#35183)

$36.99

$

In Stock, only 2 left!

0

Kit - Carb. Gasket/Diaphragm

$

$

Not available

30

Poulan 530035145

WA-79

Note: Included in Carburetor Kwik Repair Kit.

$

$

Not available

30

Poulan 530035186

WA-149 (#35183)
(Superseded to 530069844)

Note: Included in Carburetor Kwik Repair Kit.

$20.99

$

In Stock, only 2 left!

0
