XR 88 - Weed Eater String Trimmer POWER UNIT Parts Diagram

String Trimmer

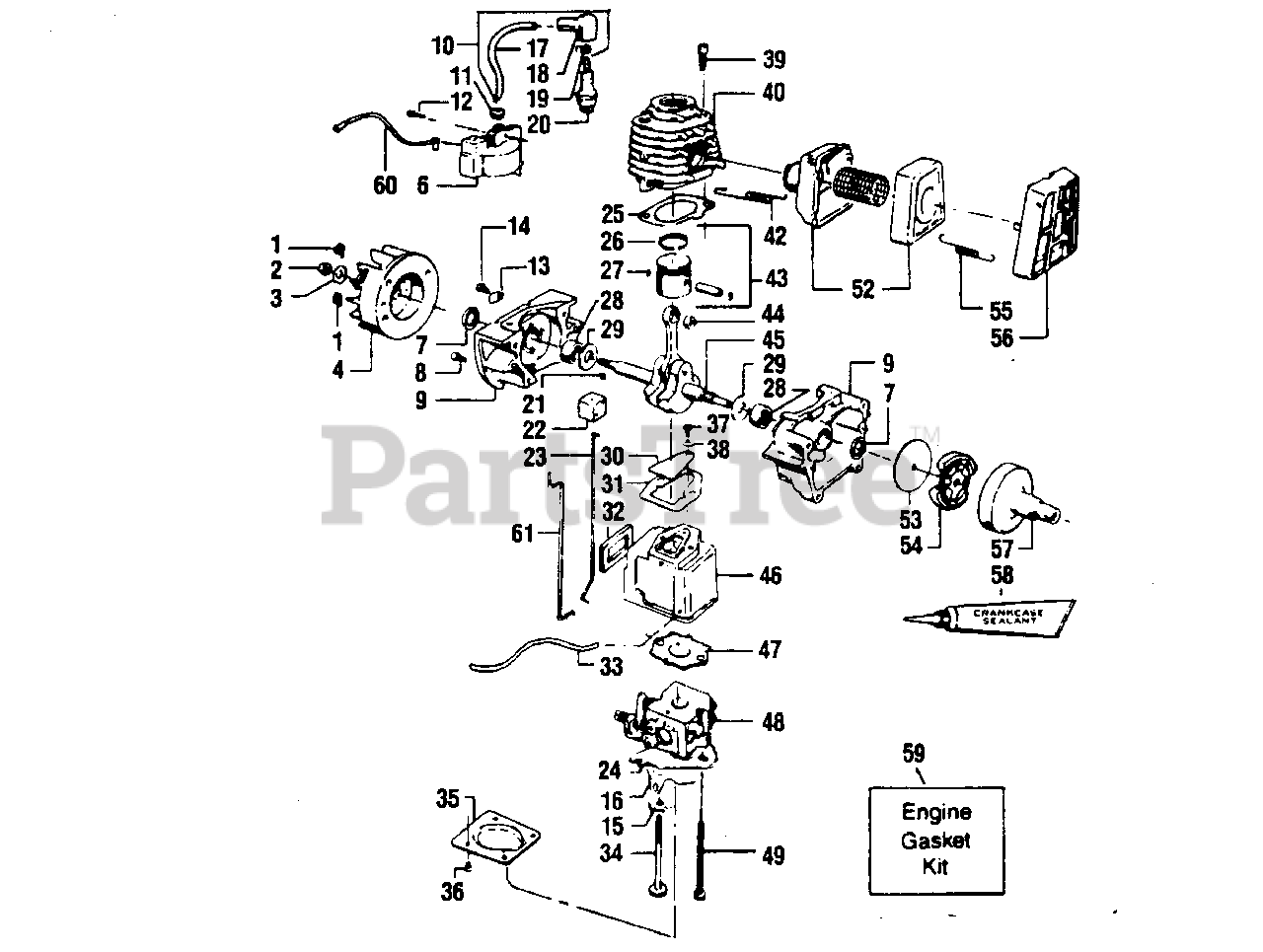

POWER UNIT Parts Diagram

  • Title

1

Poulan 530042059

Starter Dog Spring
(Superseded to 530023817)

$6.49

$

In Stock, Qty 5

0

2

Poulan 530626605

Flywheel-Nut

$5.99

$

Usually ships in 3-10 days

0

3

Poulan 530015127

Flywheel Washer

$6.49

$

Usually ships in 3-10 days

0

4

Poulan 530039114

Flywheel Assembly (incl.#1)

$

$

Not available

6

Poulan 530069181

Ignition Module Kit

$

$

Not available

7

Poulan 530019059

Crankcase Seal

$

$

Not available

8

Poulan 530015369

Screw-Crankcase

$

$

Not available

9

Poulan 530010757

Crankcase Assembly (Incl. #7, 28 & Qty. 4 of #8)

$

$

Not available

10

Poulan 502039103

High Tension-Load Assembly (Incl. #17, 18 & 19)
(Superseded to 502271102)

$364.99

$

Usually ships in 3-10 days

0

11

Poulan 530024435

Grommet-Plug Wire

$3.99

$

Usually ships in 3-10 days

0

12

Poulan 530015128

Screw #8-32x3/4". Fil. Hd.-Ignition Module
(Superseded to 530015816)

$3.99

$

Usually ships in 3-10 days

0

13

Poulan 530024651

Choke Wire Clamp

$

$

Not available

14

Poulan 530015004

Screw

$3.99

$

Usually ships in 3-10 days

0

15

Poulan 530015254

Washer

$3.99

$

In Stock, only 2 left!

0

16

Poulan 530024558

Choke Shutter

$3.99

$

Usually ships in 3-10 days

0

17

Poulan 530039082

High Tension Lead Wire

$

$

Not available

18

Poulan 530003934

Spark Plug Boot

$

$

Not available

19

Poulan 530003933

Spark Plug Lead Connector
(Superseded to 507475326)

$

$

Not available

20

Poulan 530035008

Spark Plug (RCJ-8)

$

$

Not available

21

Poulan 530015126

Key-Flywheel

$3.99

$

Usually ships in 3-10 days

0

22

Poulan 530023373

Boot-Throttle Choke Wire

Note: Included in Engine Gasket Kit.

$

$

Not available

23

Poulan 530024902

Throttle Wire (Red)

$

$

Not available

24

Poulan 530026237

Guide Plate

$

$

Not available

25

Poulan 530019111

Cylinder Gasket
(Superseded to 530069219)

Note: Included in Engine Gasket Kit.

$

$

Not available

26

Poulan 530026681

Ring-Piston

Note: Included in Engine Gasket Kit.

$

$

Not available

27

Poulan 530015162

Retainer-Wrist Pin

$6.49

$

In Stock, only 2 left!

0

28

Poulan 530032029

Bearing-Crankcase

$10.99

$

In Stock, only 2 left!

0

29

Poulan 530015351

Washer-Thrust-Crankcase

$6.49

$

Usually ships in 3-10 days

0

30

Poulan 530024438

Reed Valve

$

$

Not available

31

Poulan 530019108

Gasket-Carburetor Case to Crankcase

Note: Included in Engine Gasket Kit.

$4.99

$

Usually ships in 3-10 days

0

32

Poulan 530019105

Seal-Carburetor Case to Line Kit

Note: Included in Engine Gasket Kit.

$

$

Not available

33

Poulan 530069238

Line Kit

$

$

Not available

34

Poulan 530015404

Screw

$3.99

$

Usually ships in 3-10 days

0

35

Poulan 530026029

Cover-Carburetor Case

$

$

Not available

36

Poulan 530015235

Screw-#6-18x9/16" Carburetor Case Cover

$

$

Not available

37

Poulan 530015241

Screw-#5-19x5/16" Pan Hd. Reed Valve

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530023367

Washer-Reed Valve Screw

$

$

Not available

39

Poulan 530015239

Screw-# 14-20x3/4" Hex Socket Hd. Cylinder

$2.49

$

Usually ships in 3-10 days

0

40

Poulan 530012191

Cylinder

$

$

Not available

42

Poulan 530024903

Spring Muffler A tachment
(Superseded to 530036409)

$

$

Not available

43

Poulan 530069241

Piston Kit (Inc.26,27,Pin)

$

$

Not available

44

Poulan 530032092

Bearing-Wrist Pin

$9.99

$

Usually ships in 3-10 days

0

45

Poulan 530010844

Crankshaft & Rod Assemby (Inc.44)

$

$

Not available

46

Poulan 530024409

Carburetor Housing

$

$

Not available

47

Poulan 530019157

Gasket-Carburetor

Note: Included in Engine Gasket Kit.

$

$

Not available

48

Poulan 530035183

Carburetor

$

$

Not available

49

Poulan 530015379

Screw-# 10-24x1-7/8" Fil. Hd. Carburetor

$3.99

$

Usually ships in 3-10 days

0

52

Poulan 530069243

Muffler Ass'y.

$

$

Not available

53

Poulan 530069196

Kit-Clutch Washer

$

$

Not available

54

Poulan 530069194

Kit-Clutch Assembly (Incl. Washer)

$21.99

$

Usually ships in 3-10 days

0

55

Poulan 530024932

Spring-Muffler Guard

$

$

Not available

56

Poulan 530024855

Guard-Muffler

$7.49

$

Usually ships in 3-10 days

0

57

Poulan 530010797

Coupling & Bearing Assembly

$

$

Not available

58

Poulan 530030054

Sealent-Crankcase (Not Supplied with Unit)

$

$

Not available

59

Poulan 530069219

Kit-Engine Gasket

$

$

Not available

60

Poulan 530024158

Lead Wire Switch

$6.49

$

Usually ships in 3-10 days

0

61

Poulan 530026236

Choke Wire

$2.49

$

Usually ships in 3-10 days

0
