XR 88 - Weed Eater String Trimmer LOWER UNIT Parts Diagram

String Trimmer

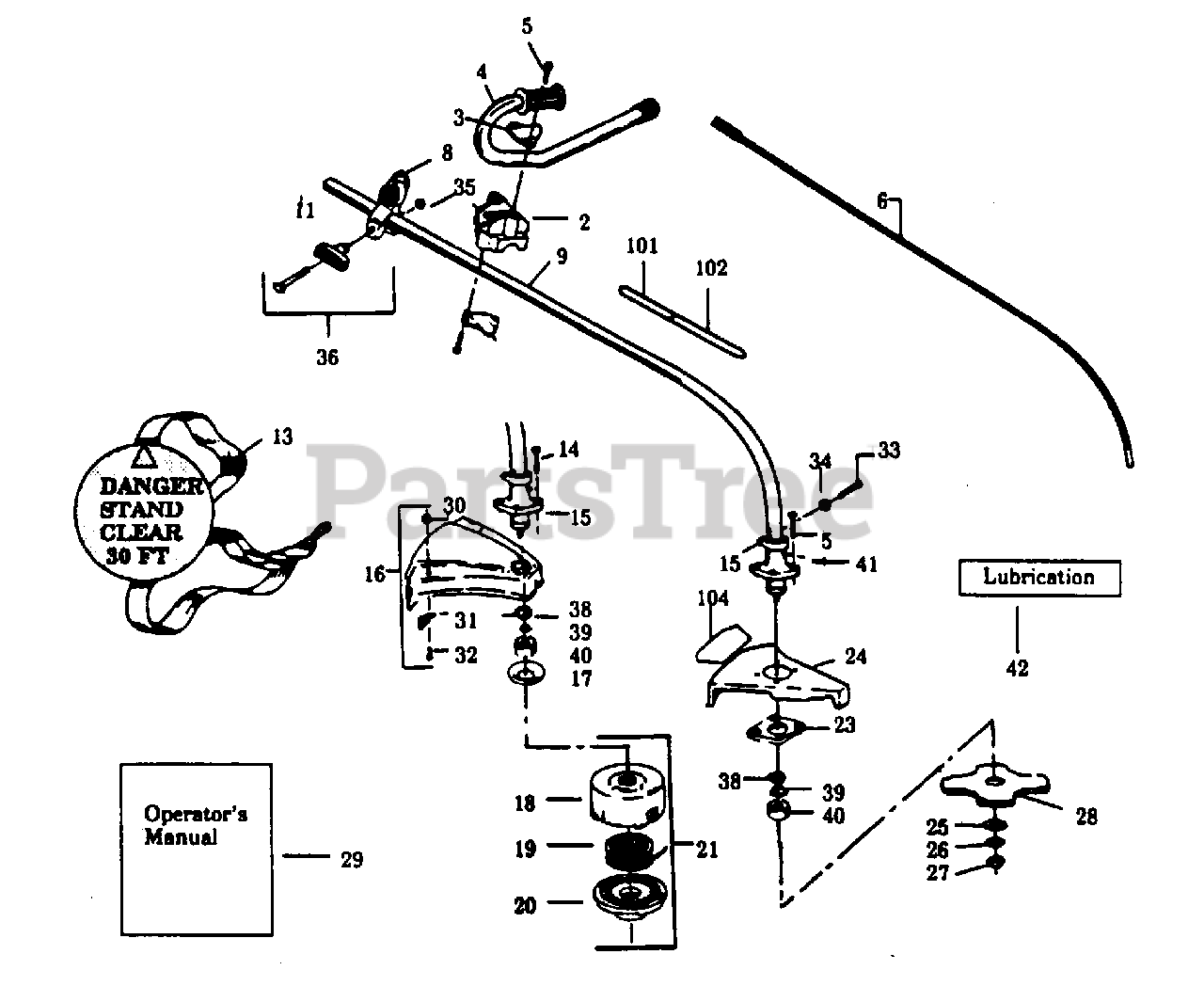

LOWER UNIT Parts Diagram

  • Title

2

Poulan 530012207

Handlebar Clamp

$

$

Not available

3

Poulan 530094572

Handlebar Bracket

$3.99

$

In Stock, only 1 left!

0

4

Poulan 530093169

Handlebar

$

$

Not available

5

Poulan 530015791

Screw 1/4 - 20 x 1- 1/16

$3.99

$

Usually ships in 3-10 days

0

6

Poulan 530092261

Drive Shaft (Flex)

$24.99

$

Usually ships in 3-10 days

0

8

Poulan 530094598

Clamp Harness Ass'y.
(Superseded to 530094686)

$7.49

$

Usually ships in 3-10 days

0

9

Poulan 530093726

Drive Shaft Housing

$

$

Not available

13

Poulan 530094638

Shoulder Strap
(Superseded to 530094417)

$

$

Not available

14

Poulan 530015790

Screw 1/4 - 10 x 1 - 1/16
(Superseded to 530092243)

$3.99

$

In Stock, Qty 11

0

15

Poulan 530094581

Bearing Housing Ass'y.

$

$

Not available

16

Poulan 530094594

Shield Kit Ass'y. (Incl. #14 30 31, 32)

$

$

Not available

17

Poulan 530094571

Grass Washer

$1.99

$

Usually ships in 3-10 days

0

18

Poulan 530094620

Hub Ass'y.

$

$

Not available

19

Poulan 702556

Spool w/Line

$

$

Not available

20

Poulan 530094494

Cover

$

$

Not available

21

Poulan 952702553

Cutting Head Ass'y. (Incl. #18, 19, 20)
(Superseded to 952701574)

$

$

Not available

23

Poulan 530027615

Shield Retention Plate

$7.99

$

Usually ships in 3-10 days

0

24

Poulan 530094576

Shield

$

$

Not available

25

Poulan 530093751

Washer

$

$

Not available

26

Poulan 530015492

Washer
(Superseded to 530016240)

$6.49

$

In Stock, only 1 left!

0

27

Poulan 530093748

Nut 3/8

$

$

Not available

28

Poulan 952701546

Weed Blade

$22.99

$

Usually ships in 3-10 days

0

29

Poulan 530067173

Operator's Manual

$

$

Not available

30

Poulan 530015217

Locknut
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

31

Poulan 530094570

Line Limiter

$5.99

$

In Stock, only 2 left!

0

32

Poulan 530015037

Screw # 10 - 24 x 5/8

$2.49

$

Usually ships in 3-10 days

0

33

Poulan 530625509

Screw 1/4 - 20 x 1

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 530092227

Washer

$1.49

$

Usually ships in 3-10 days

0

35

Poulan 530015197

Locknut 1/4 - 20

$6.49

$

In Stock, Qty 5

0

36

Poulan 530069252

"T" Handle Kit
(Superseded to 530069347)

$5.99

$

In Stock, only 1 left!

0

38

Poulan 530091783

Retaining Ring

$

$

Not available

39

Poulan 530092216

Washer

$

$

Not available

40

Poulan 530092359

Dust Cup

$

$

Not available

41

Poulan 530015518

Screw

$2.49

$

Usually ships in 3-10 days

0

42

Poulan 530030102

Shaft Lubrication
(Superseded to 952708514)

$

$

Not available

101

Poulan 530027864

Decal - Shaft Warning (Upper)

$

$

Not available

102

Poulan 530027865

Decal - Shaft Warning (Lower)

$

$

Not available

104

Poulan 530027883

Decal - Blade Direction

$

$

Not available
