XR 85 - Weed Eater String Trimmer CUTTING HEAD(S) & DRIVE SHAFT Parts Diagram

String Trimmer

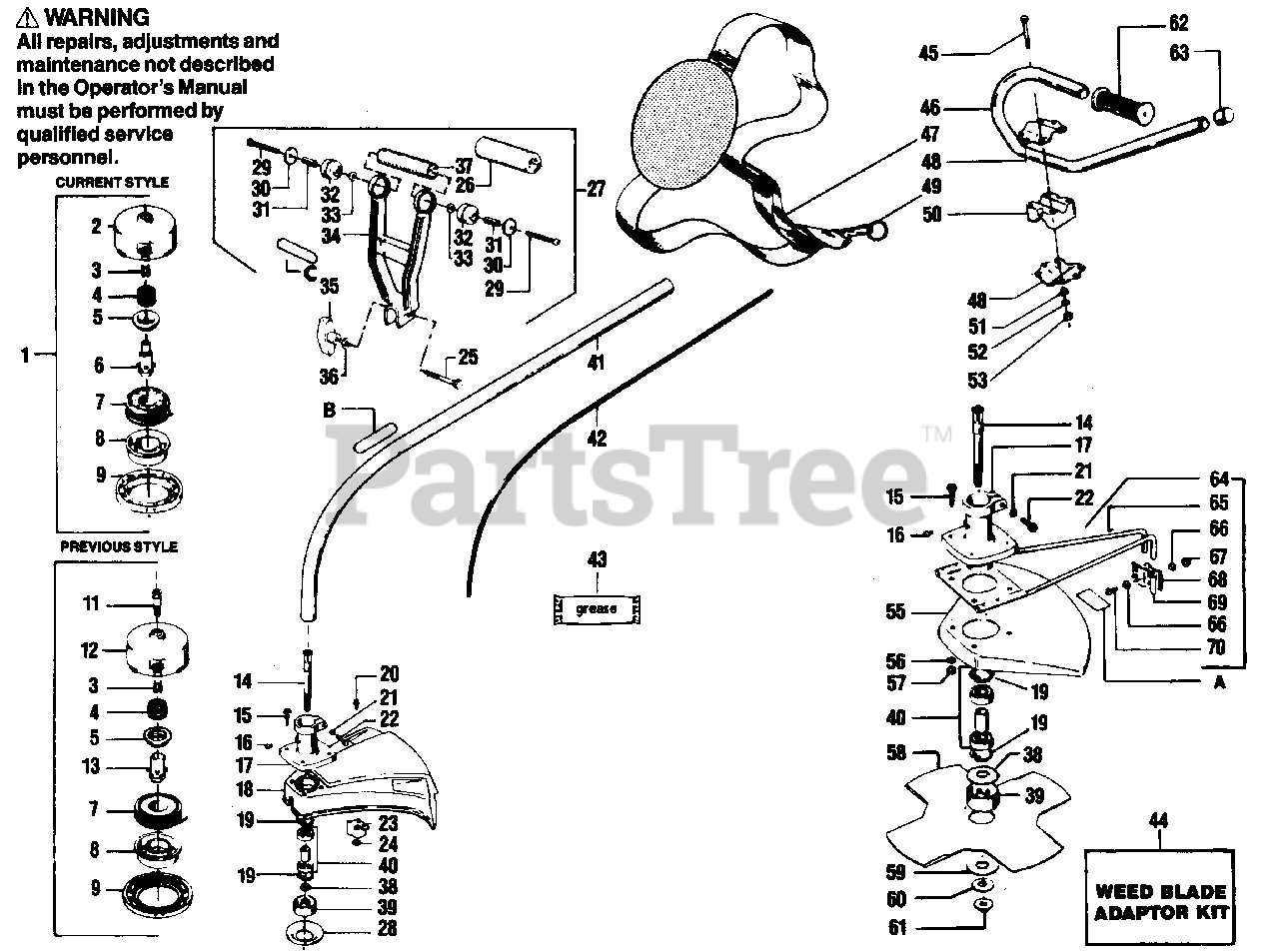

CUTTING HEAD(S) & DRIVE SHAFT Parts Diagram

  • Title

1

Poulan 530093894

Cutting Head Ass'y - Current Style (Inc.2,9)

$

$

Not available

2

Poulan 530093896

Hub w/Line Saver - Current Style
(Superseded to 530071295)

$21.99

$

Usually ships in 3-10 days

0

3

Poulan 530093898

Line Saver

$4.99

$

Usually ships in 3-10 days

0

4

Poulan 530092067

Spring
(Superseded to 530340007)

$3.99

$

Usually ships in 3-10 days

0

5

Poulan 530092068

Adapator-Spring
(Superseded to 530328929)

$

$

Not available

6

Poulan 530093897

Drive Gear - Current Style

$9.99

$

Usually ships in 3-10 days

0

7

Poulan 952701523

Spool w/Line

$

$

Not available

8

Poulan 530093387

Release Button
(Superseded to 530401183)

$

$

Not available

9

Poulan 530092133

Cover

$

$

Not available

11

Poulan 530092064

Bolt - Drive Adaptor - Previous Style

$10.99

$

Usually ships in 3-10 days

0

12

Poulan 530092131

Hub w/Line Saver - Previous Style

$

$

Not available

13

Poulan 530092069

Drive Gear - Previous Style

$

$

Not available

14

Poulan 530093846

Arbor Shaft

$

$

Not available

15

Screw

$

$

Not available

15

Poulan 530092243

Model XR-80
(Superseded to 530016107)

$3.99

$

In Stock, Qty 11

0

15

Poulan 530625509

Model XR-75,XR-85

$2.49

$

Usually ships in 3-10 days

0

16

Poulan 530015518

Screw - #10 - 16 x 1/4" - Self Tapping

$2.49

$

Usually ships in 3-10 days

0

17

Poulan 530093214

Bearing Housing Ass'y (Inc. #14, 19, 21, 22, 38 & 39)

$

$

Not available

18

Poulan 530093886

Shield Assembly - 18" (Inc. #20, 23 & 24) Model XR-80

$

$

Not available

19

Poulan 530091783

Retainer - Bearing

$

$

Not available

20

Poulan 530015037

Screw - #10 - 24 x 5/8" - Hex Hd. - Line Limter - Model XR-80

$2.49

$

Usually ships in 3-10 days

0

21

Poulan 530092227

Washer - #1/4 Int. Tooth Lock

$1.49

$

Usually ships in 3-10 days

0

22

Poulan 530625509

Screw - Pinch Clamp - #1/4 - 20 x 1" Model XR-80 only (Inc. #23-37)

$2.49

$

Usually ships in 3-10 days

0

23

Poulan 530093853

Line Limiter

$

$

Not available

24

Poulan 530015217

Nut - #10 - 24 - Locking
(Superseded to 530403094)

$3.99

$

Usually ships in 3-10 days

0

25

Poulan 530015737

Hex Bolt

$

$

Not available

26

Poulan 530026009

Cushion - Handle Center Section

$

$

Not available

27

Poulan 530010642

Handle - Antivibe Assembly (Inc. #29-30)

$

$

Not available

28

Poulan 530092218

WASHER

$7.49

$

Usually ships in 3-10 days

0

Poulan 920092218

SCREW

$3.99

$

Usually ships in 3-10 days

0

29

Poulan 530015561

Screw - Pan Hd. - #12 - 11 x 2"

$

$

Not available

30

Poulan 530024376

Cup Isolator

$4.99

$

Usually ships in 3-10 days

0

31

Poulan 530025985

Spacer - Isolator

$

$

Not available

32

Poulan 530024373

Isolator - Vibration

$3.99

$

Usually ships in 3-10 days

0

33

Poulan 530015209

Washer - #1/4 Flat

$2.49

$

Usually ships in 3-10 days

0

34

Poulan 530093859

Handle - Antivibe

$

$

Not available

35

Poulan 530092059

Knob - #1/4 - 20

$9.99

$

Usually ships in 3-10 days

0

36

Poulan 530092062

Washer - #1/4 Flat

$3.99

$

Usually ships in 3-10 days

0

37

Poulan 530025986

Center Section - Handle

$3.99

$

Usually ships in 3-10 days

0

38

Poulan 530092216

Washer - #3/8 - Dust Cup

$

$

Not available

39

Poulan 530092359

Dust Cup

$

$

Not available

40

Poulan 530069086

Bearings & Spacer Kit

$27.99

$

Usually ships in 3-10 days

0

41

Poulan 530093726

Drive Shaft Housing

$

$

Not available

42

Poulan 530092261

Flexible Drive Shaft

$24.99

$

Usually ships in 3-10 days

0

43

Poulan 530030102

Flex Shaft Lube
(Superseded to 952708514)

$

$

Not available

44

Poulan 952701566

Weed Blade Adaptor Kit - Model XR-80 (Inc. #45-70)

$36.99

$

Usually ships in 3-10 days

0

45

Poulan 530015405

Bolt - #1/4 - 20 x 2" Hex

$

$

Not available

46

Poulan 530093169

Barrier Handlebar

$

$

Not available

47

Poulan 530094417

Shoulder Strap

$

$

Not available

48

Poulan 530092079

Clamp - Handleabr

$

$

Not available

49

Poulan 530092231

Key Ring - Shoulder strap

$

$

Not available

50

Poulan 530092081

Block - Handlebar

$

$

Not available

51

Poulan 530001503

Washer - #1/4 Flat

$

$

Not available

52

Poulan 530001642

Washer - #1/4 Lock

$3.99

$

Usually ships in 3-10 days

0

53

Poulan 530015197

Nut - #1/4 - 20 Hex

$6.49

$

In Stock, only 4 left!

0

55

Poulan 530092212

Shield - Aluminum

$

$

Not available

56

Poulan 530001503

Washer - #1/4 Flat

$

$

Not available

57

Poulan 530001615

Nut - Deflector to Brg. Hsg. (#1/4 - 20)

$

$

Not available

58

Poulan 952701546

Blade - 4 Tooth Weed

$22.99

$

Usually ships in 3-10 days

0

59

Poulan 530093751

Washer - #3/8 Flat

$

$

Not available

60

Poulan 530015492

Washer - #1-1/8 - 3/8 Bevel
(Superseded to 530016240)

$6.49

$

In Stock, only 1 left!

0

61

Poulan 530093748

Flange Nut - #3/8 - 24

$

$

Not available

62

Poulan 530092086

Grip - Handlebar

$

$

Not available

63

Poulan 530092192

End Cap - Handlebar

$0.99

$

Usually ships in 3-10 days

0

64

Poulan 530092244

Line Limiter Ass'y. (Inc. #65-70)

$

$

Not available

65

Poulan 530092226

Line Limiter Bracket

$

$

Not available

66

Poulan 530015158

Washer
(Superseded to 530015123)

$4.99

$

In Stock, only 4 left!

0

67

Poulan 530015064

Nut - #10 - 24 Locking

$

$

Not available

68

Poulan 530092224

Clamp - Line Limiter Front

$2.49

$

Usually ships in 3-10 days

0

69

Poulan 530092234

Clamp - Line Limiter Rear (Inc. Blade)

$

$

Not available

70

Poulan 530015557

Screw - #10 - 24 x 3/8"

$3.99

$

Usually ships in 3-10 days

0

A

Poulan 530024886

Decal - Blade Rotation Waming

$

$

Not available

B

Decal - Safety Label

$

$

Not available

B

Poulan 530027429

Upper

$

$

Not available

B

Poulan 530027404

Lower

$

$

Not available

C

Poulan 530026248

Decal - Antivibe (Warning)

$

$

Not available

Poulan 952701569

Tap-N-Go Repair Kit for Old Style - Optional (Inc. #4-5, 8-9 & 13)

$14.99

$

Usually ships in 3-10 days

0

Operator's Manual

$

$

Not available

Poulan 530064345

Model XR-75

$

$

Not available

Poulan 530066929

Model XR-80

$

$

Not available

Carton

$

$

Not available

, Model XR-75

Note: Not Shown.

$

$

Not available

Poulan 530060632

Model XR-80

$

$

Not available

Poulan 530060633

Model XR-85

$

$

Not available
